Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Kohler CV732-3015 Crankcase Parts Diagram

48" Z-Force S Zero-Turn Mower

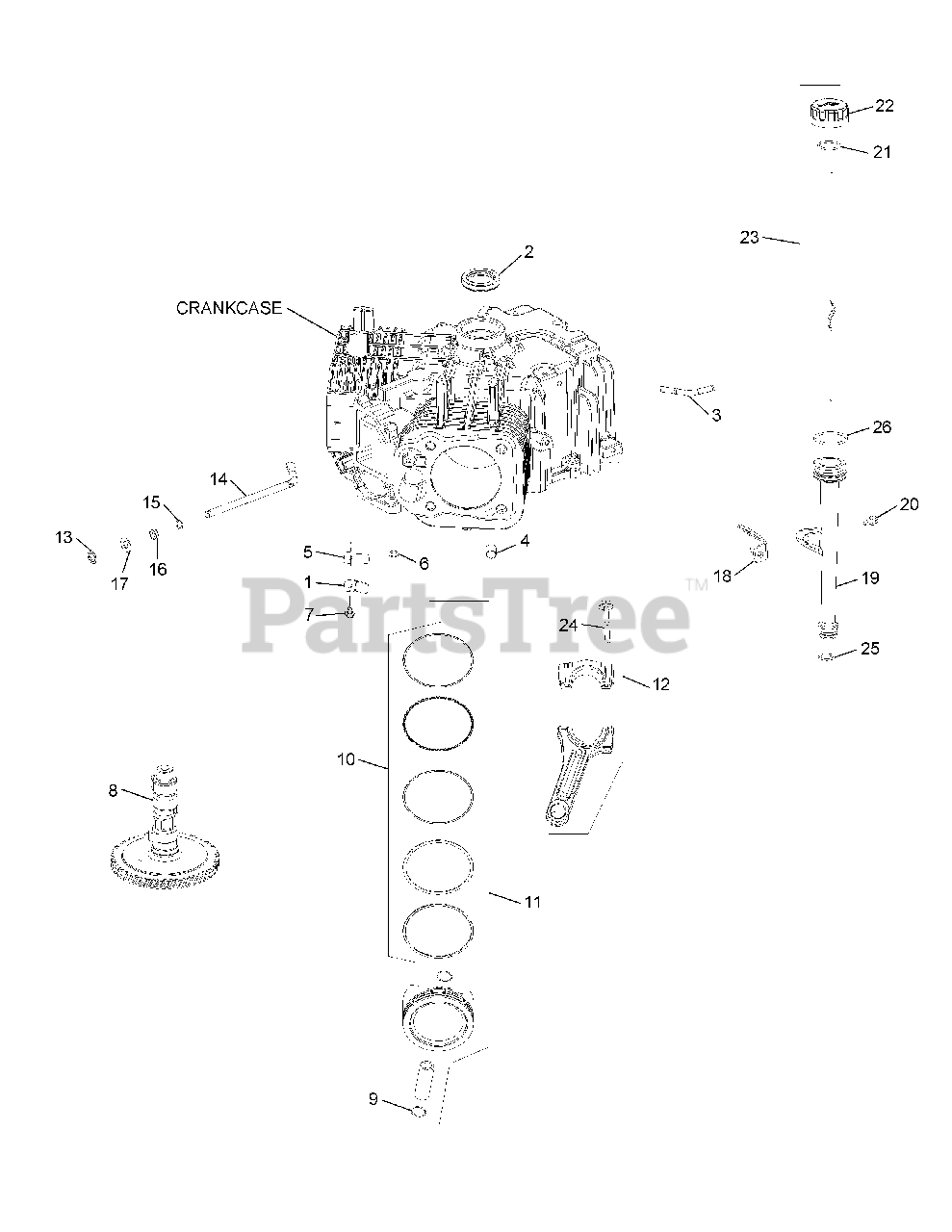

Kohler CV732-3015 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KH-24-032-19-S

Oil Seal

$9.49

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-24-402-05-S

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet KH-52-139-09-S

PLUG-CUP

$4.99

$

In Stock, Qty 10

0

7

Cub Cadet KH-M-0545010

Flange Screw, M5 x 0.8 x 10

$

$

Not available

8

Cub Cadet KH-24-012-29-S

Camshaft Kit

$153.99

$

In Stock, only 1 left!

0

9

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$3.49

$

In Stock, Qty 14

0

10

Cub Cadet KH-25-108-01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$94.99

$

In Stock, only 4 left!

0

10

Cub Cadet KH-25-108-02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-108-03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$39.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-108-04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$154.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-25-874-14-S

Piston Kit w/ Ring (STD) (Inc. 9 & 10)

$188.99

$

In Stock, Qty 20+

0

11

Cub Cadet KH-25-874-18-S

Piston Kit w/ Ring (.08)

$222.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-25-874-19-S

Piston Kit w/ Ring (.25)

$271.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-25-874-20-S

Piston Kit w/ Ring (.50)

$268.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-067-34-S

Connecting Rod Kit (Inc. 24)
(Superseded to KH-25-067-04-S)

$83.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

In Stock, Qty 19

0

14

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$58.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-468-15-S

Flat Washer, 11/32"

$2.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet KH-M-931010-S

Flat Washer, 9 mm

$2.49

$

In Stock, Qty 8

0

18

Cub Cadet KH-24-126-243-S

Oil Fill Tube Bracket

$11.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-32-755-04-S

Oil Fill Assembly Tube

$

$

Not available

20

Cub Cadet KH-M-545013-S

Flange Screw, M5 x 0.8 x 13

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

$3.49

$

In Stock, Qty 17

0

22

Cub Cadet KH-24-755-46

Oil Fill Cap Kit (Yellow)

$

$

Not available

23

Cub Cadet KH-24-038-04-S

Dipstick, Assembly (Inc. 21 & 22)

$21.99

$

In Stock, only 3 left!

0

24

Cub Cadet KH-25-086-452-S

Connecting Rod Bolts Kit
(Superseded to KH-25-086-677-S)

$2.49

$

In Stock, Qty 9

0

25

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

$3.49

$

In Stock, Qty 20+

0
