Z-Force SZ48 (53ATDFJB050) - Cub Cadet 48" Z-Force S Zero-Turn Mower (2014) Kohler CV732-3015 Ignition & Electrical Parts Diagram

48" Z-Force S Zero-Turn Mower

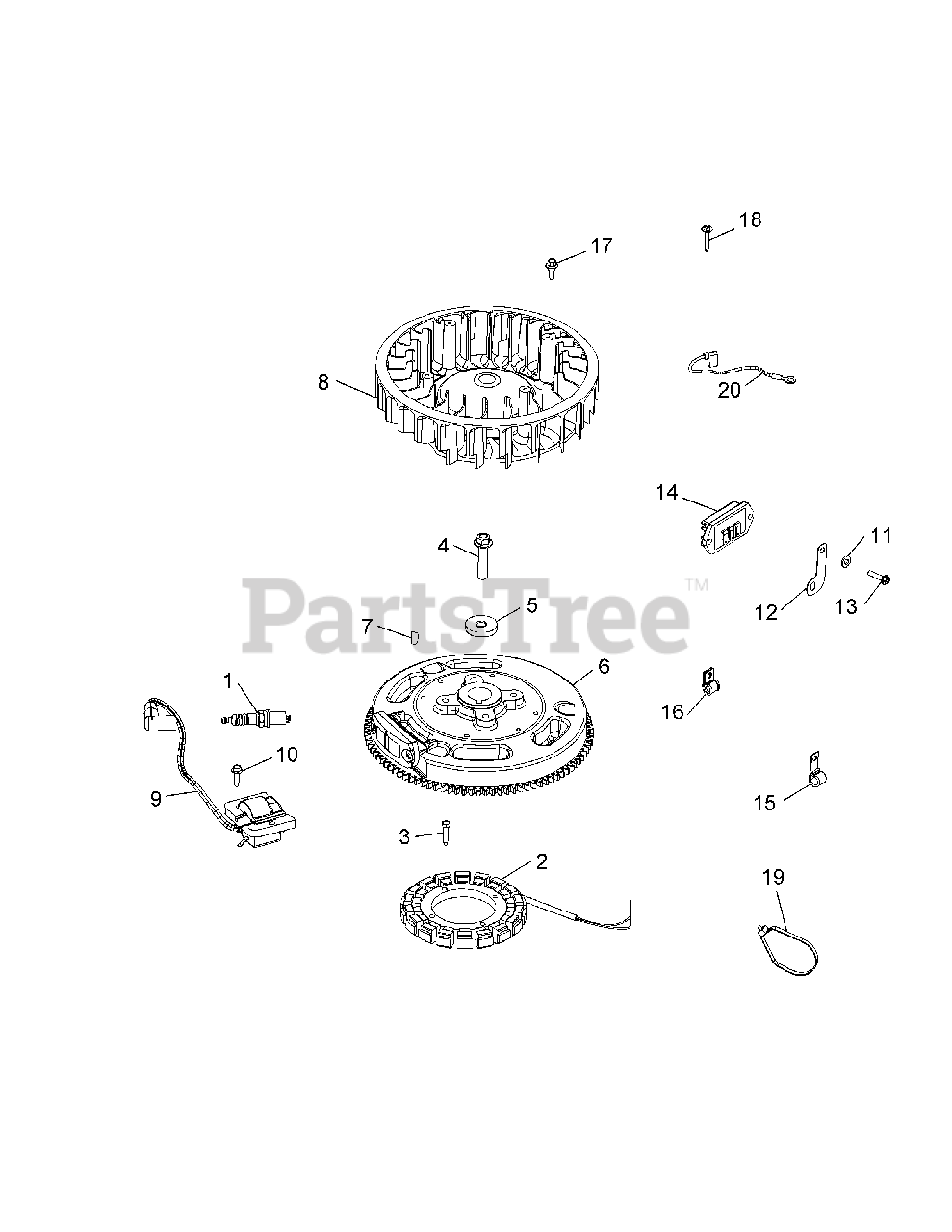

Kohler CV732-3015 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-12-132-02-S

Spark Plug

$11.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-25-086-402-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-25-086-361-S

Flange Screw, M10 x 1.5 x 45

$3.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-12-468-03

WASHER

$

$

Not available

6

Cub Cadet KH-24-025-68-S

Flywheel

$283.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-X-42-15

Key, 3/16 x 5/8

$

$

Not available

8

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-24-584-45-S

Ignition Module Kit
(Superseded to KH-24-584-201-S)

$110.99

$

Usually ships in 3-6 days

0

10

Cub Cadet KH-25-086-473-S

Thread Forming Screw

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-X-25-63

Flat Washer, 1/4

$

$

Not available

12

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$4.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-25-086-157-S

Hi-Lo Hex Flange Screw

$2.49

$

In Stock, only 3 left!

0

14

Cub Cadet KH-41-403-10-S

Rectifier Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

In Stock, Qty 8

0

15

Cub Cadet KH-235173

Cable Clip

$

$

Not available

16

Cub Cadet KH-210281-S

Clip

$7.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-25-086-47

Shoulder Bolt

$

$

Not available

18

Cub Cadet KH-25-086-117-S

Flange Screw, M4 x .7 x 25

$2.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-25-518-34-S

Lead

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-162-44-S

Grass Screen

Note: (Not Shown)

$16.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-54-755-15

Grass Screen Kit

Note: (Not Shown)

$

$

Not available

Cub Cadet KH-24-176-201-S

Wiring Harness Assembly

Note: (Not Shown)

$61.99

$

Usually ships in 2-5 days

0
