Z-Force SZ60 (53ANDFJD050) - Cub Cadet 60" Z-Force S Zero-Turn Mower (2014) Operators Platform Parts Diagram

60" Z-Force S Zero-Turn Mower

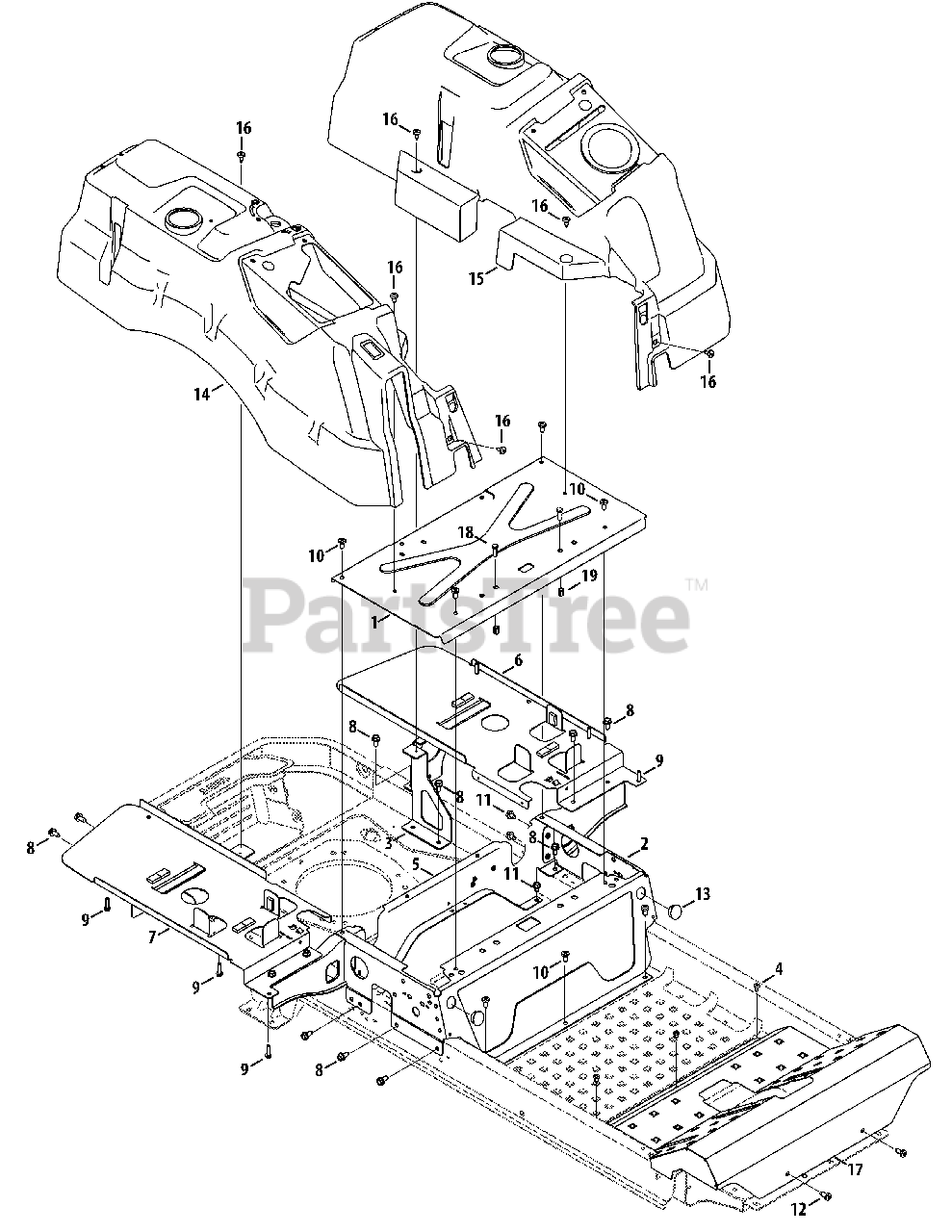

Operators Platform Parts Diagram

  • Title

1

Cub Cadet 703-09186B-4021

Seatbox Plate
(Superseded to 703-09186J-4021)

$51.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-09320-0637

Seat Frame
(Superseded to 703-09320F-0637)

$100.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09326-0637

Rear Support Bracket, LH
(Superseded to 703-09326A-0637)

$32.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09330-0637

Rear Support Bracket, RH
(Superseded to 703-09330A-0637)

$37.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04483

Screw, 1/4-20 x .50

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09332A-0637

Rear Seatbox Brace
(Superseded to 703-11179)

$49.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09404A-0637

Tank Support Plate, LH

$82.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09775-0637

Tank Support Plate, RH

$82.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05109

Hex Washer Screw, 5/16-14 x 1.00

$3.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-05424

Self Tapping Screw, 5/16-18 x .750

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0607

Hex Washer Screw, 5/16-18 x .50

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-1611B

Screw, 5/16-18 x .75

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-09477

Plastic Plug

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 931-09529

RH Console

$123.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 931-09543

LH Console

$123.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 738-04549A

Shoulder Screw, 1/4-20

$7.99

$

In Stock, Qty 12

0

17

Cub Cadet 603-05093-4021

Floor Board, Fab
(Superseded to 603-05093B-4021)

$275.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$7.49

$

In Stock, Qty 20+

0

19

Cub Cadet 728-04068

Nut, 5/16-18

$4.99

$

Usually ships in 3-6 days

0
