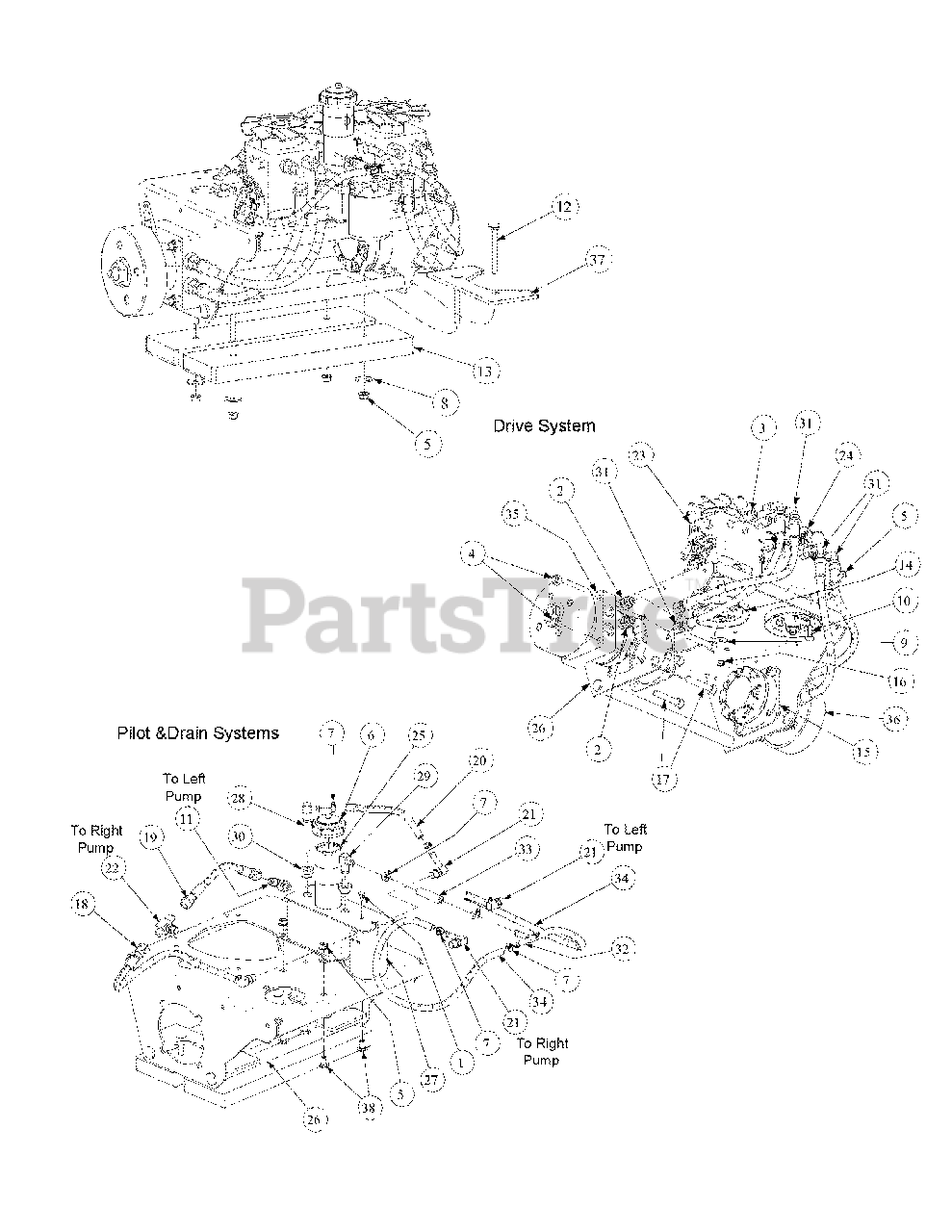

Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Drive Assembly Version 1 Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

Drive Assembly Version 1 Parts Diagram

  • Title

1

Cub Cadet 710-3013

Hex Cap Screw, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 7

0

2

Cub Cadet 00012288

Fitting 1/2 x 3/4 - O Ring

$

$

Not available

3

Cub Cadet 00012426

Fitting 1/2 x 3/4 - O Ring to Flare

$

$

Not available

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$7.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030261

Cap, Hydro Oil Tank

$39.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01000215

Hose Clamp

$

$

Not available

8

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

9

Cub Cadet 01000942

Bell Washer, .396 x 1.14 x .095

$

$

Not available

10

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

11

Cub Cadet 01002602

Elbow Fitting, 3/8 x 3/8

$

$

Not available

12

Cub Cadet 710-0521

Carriage Bolt, 3/8-16 x 3.5 Lg

$5.49

$

In Stock, Qty 6

0

13

Cub Cadet 02002426

Bar Weight

Variations

02002426-0637

Cub Cadet 02002426-0637

BAR- WEIGHT CAT - POWDER BLACK (0637)

$196.99

$

Usually ships in 3-6 days

0

$178.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01006799

Hydro Pulley Pump

$192.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01006949

Motor Plate

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01008036

Socket Head Capscrew, 1/2-13; 2-3/4

$

$

Not available

18

Cub Cadet 02000194

Hose Assembly Inlet Pump

$

$

Not available

19

Cub Cadet 02000195

Hose Assembly Inlet Connector

$

$

Not available

20

Cub Cadet 02000197

Drain Hose, 3/8

$

$

Not available

21

Cub Cadet 02000198

Fitting, 90 Degree O-Ring

$

$

Not available

22

Cub Cadet 02000199

Tee Fitting, O-Ring

$

$

Not available

23

Cub Cadet 02000228P

Hydro Pump. RH

$

$

Not available

24

Cub Cadet 02000229P

Hydro Pump, LH

$1048.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02000263

Hydro Tank Weldment

$

$

Not available

26

Cub Cadet 02000271

Engine Mount Weldment

$

$

Not available

27

Cub Cadet 02000276

Filter Head 1/2

$

$

Not available

28

Cub Cadet 02000294

Elbow Fitting, Tube Steel

$

$

Not available

29

Cub Cadet 02000295

Elbow Fitting, w/o Tube Steel

$

$

Not available

30

Cub Cadet 02000296

Grommet Fitting, .54 ID x .78 OD

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02000297

Pressure Hose Assembly

$

$

Not available

32

Cub Cadet 02000382

Tee Fitting

$

$

Not available

33

Cub Cadet 02000383

Hose, 3/8

$

$

Not available

34

Cub Cadet 02000384

Hose, 3/8

$

$

Not available

35

Cub Cadet 02000391P

Hyd. Motor, White Right Hand

$2020.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02000392P

Hyd. Motor, White Left Hand
(Superseded to 02004442P)

$2780.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 02000773

Deck Plate

$

$

Not available

38

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x 0.75

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 02000951

Hydro Filter

Note: (not shown)

$

$

Not available

Cub Cadet 737-3120

Drive System Fluid Plus - Quart
(Superseded to 490-000-C051)

Note: (not shown)

$23.99

$

In Stock, Qty 13

0

Cub Cadet 737-3121

Drive System Fluid Plus - Gallon

Note: (not shown)

$81.99

$

In Stock, Qty 15

0
