Z-Wing 48 (53AI5BBY750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kohler Fold Fabricated Cutter Version 1 Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kohler

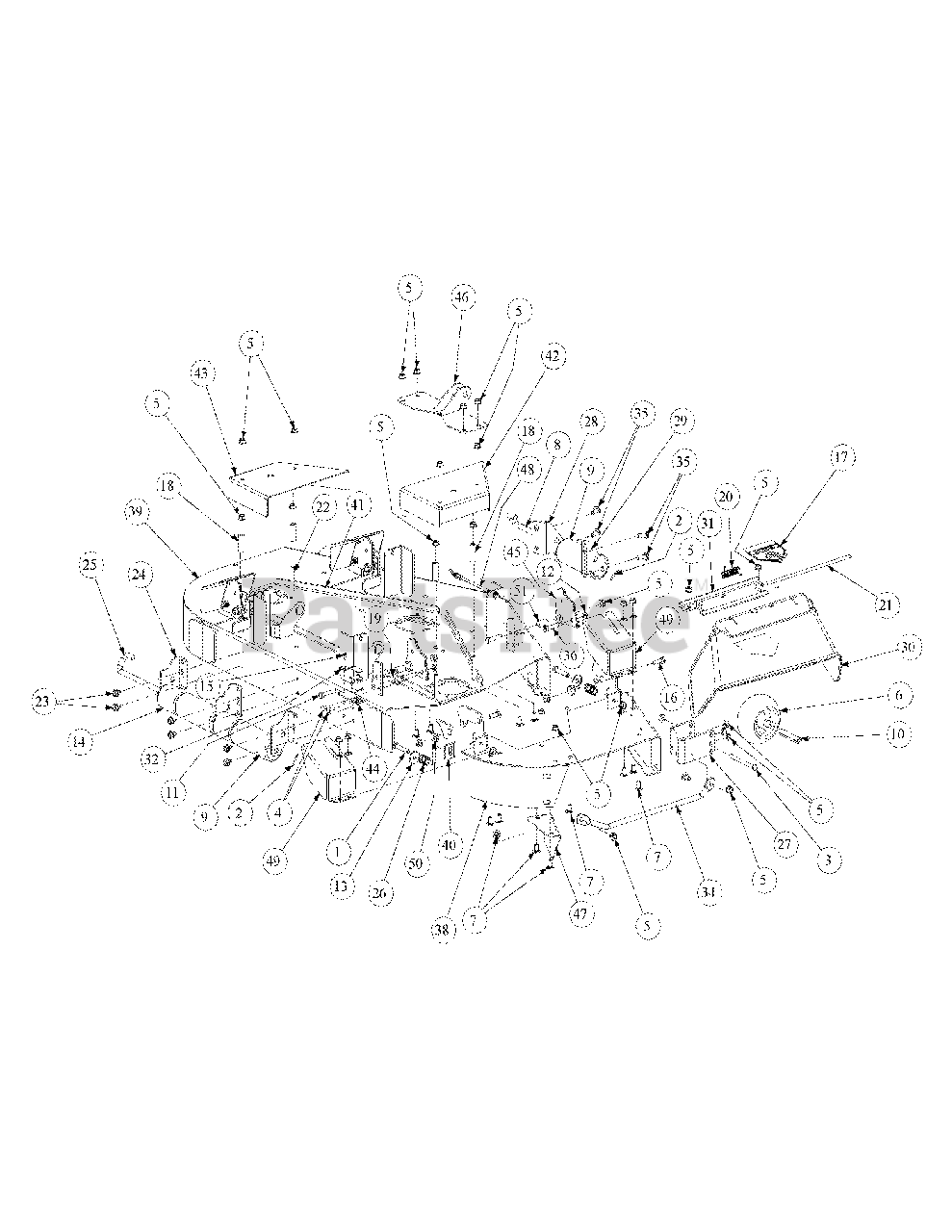

Fold Fabricated Cutter Version 1 Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 00003107

Cotter Pin, .125 Dia. x 1.0
(Superseded to 914-0115)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00017584

Carriage Bolt, 1/4-20 x .750

$

$

Not available

5

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia

$36.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 911-3314

Roller Pin, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

9

Cub Cadet 731-3005

Front Roller

$30.99

$

In Stock, Qty 20+

0

10

Cub Cadet 750-3193

Wheel Spacer

$19.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.750

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

14

Cub Cadet 01001169

Roller

$25.99

$

In Stock, Qty 15

0

15

Cub Cadet 01001864

Screw, TT, 10-24, .5
(Superseded to 1767754)

$

$

Not available

16

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002751

Spacer, .39 x .63 x 1.75

$

$

Not available

19

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange Lock

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 732-04797

Torsion Spring, 0.4 ID x 2.16 LG

$12.99

$

In Stock, Qty 8

0

21

Cub Cadet 747-3384

Chute Deflector Rod

$29.99

$

In Stock, Qty 7

0

22

Cub Cadet 01003534

Carriage Bolt, 3/8-16, 2.75

$

$

Not available

23

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .05
(Superseded to 710-0773)

$7.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01004707-0637

Fabricted Deck Roller Mount Bracket

$24.99

$

In Stock, only 3 left!

0

25

Cub Cadet 02002798

Roller Rod

$84.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01004971

Lift Handle Spring

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01005243-0637

Front Anti-Scalp Wheel Mount Bracket

$60.99

$

In Stock, only 1 left!

0

28

Cub Cadet 01005244

Left Hand Front Roller Mount Bracket

Variations

01005244-0637

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

01005244-4021

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

29

Cub Cadet 01005245-0637

Right Hand Front Roller Mount Bracket

$39.99

$

In Stock, only 2 left!

0

30

Cub Cadet 01006693P

Deflector Chute

$73.99

$

In Stock, Qty 16

0

31

Cub Cadet 01006748-0637

Chute Deflector Bracket

$37.99

$

In Stock, Qty 6

0

32

Cub Cadet 732-04200

Spring Retainer

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 01008644

Fabricated Deck Finger Guard

$38.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01009459

Shoulder Bolt 3/8 x 1.50

$

$

Not available

37

Cub Cadet 01009957

Fab Fold Deck Weldment

$

$

Not available

38

Cub Cadet 01009967

Fab Fold Wing Weldment, RH

$

$

Not available

39

Cub Cadet 01009976

Fab Fold Wing Weldment, LH

$

$

Not available

40

Cub Cadet 01010123

Pull Fold Hinge Lock

$

$

Not available

41

Cub Cadet 02000690

Deck Stiffener

$

$

Not available

42

Cub Cadet 01010137

Belt Cover, RH

$

$

Not available

43

Cub Cadet 01010139

Belt Cover, LH

$

$

Not available

44

Cub Cadet 02000148

Handle Control Bracket

$

$

Not available

45

Cub Cadet 02000152

Lift Cable Bracket Weldment

$

$

Not available

46

Cub Cadet 02000267

Front Lift Bracket Weldment

$

$

Not available

47

Cub Cadet 02000381

Chute Baffle

$

$

Not available

48

Cub Cadet 02000389

Lift Cable

$

$

Not available

49

Cub Cadet 02000625

Lift Wing Shield

$

$

Not available

50

Cub Cadet 02000637

Spacer, 1.00 x .38 x .63

$

$

Not available

51

Cub Cadet 02000692

Pivot Spacer

$

$

Not available
