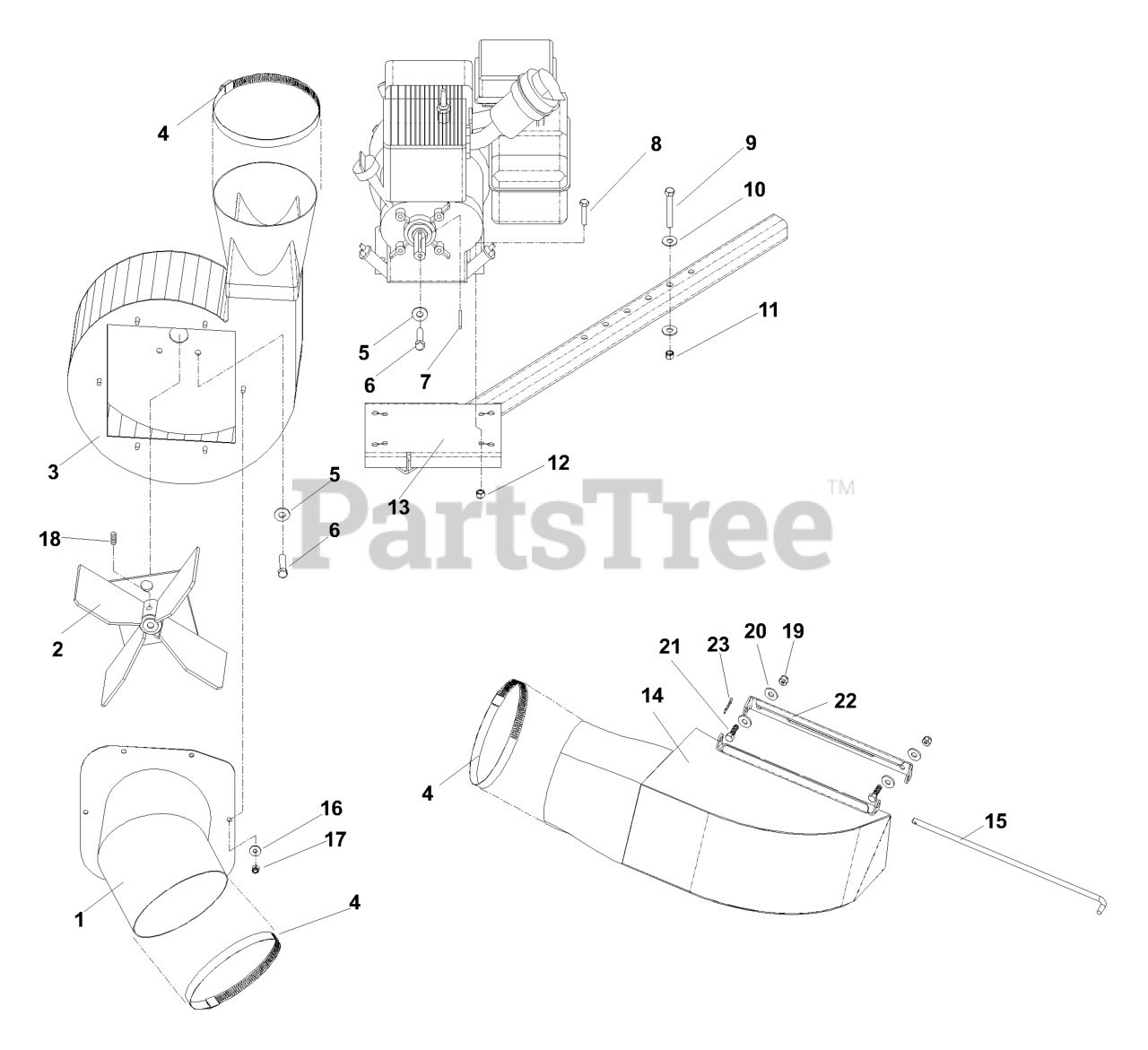

Z1-12 - Husqvarna Z Grass Catcher (2003-10) Power Unit Assembly Parts Diagram

Z Grass Catcher

Power Unit Assembly Parts Diagram

  • Title

1

Husqvarna 540092705

BLOWER HOUSING INLET

$

$

Not available

2

Husqvarna 540094005

IMPELLAR

$

$

Not available

3

Husqvarna 540094004

BLOWER HOUSING

$

$

Not available

4

Husqvarna 540097076

HOSE CLAMP
(Superseded to 539097076)

$

$

Not available

5

Husqvarna 540099001

R/B 109600 WASH SPRING, 5/16
(Superseded to 596565001)

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 540099012

R/B 990233 BLT HEX 5/16-24X3/4
(Superseded to 539990233)

$

$

Not available

7

Husqvarna 540099002

KEY SQUARE 3/16 X 3/16 X 1 3/4
(Superseded to 539100471)

$

$

Not available

8

Husqvarna 540099015

BOLT, 5/16-18 X 1 1/2

$

$

Currently unavailable

9

Husqvarna 540099611

HEX BOLT 3/8-16 X 2.5"

$

$

Not available

10

Husqvarna 540000415

FLAT WASHER 3/8
(Superseded to 596565301)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 540099065

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 540099079

HEX NUT - NYLON LOCK 5/16-18
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

13

Husqvarna 540062092

ENGINE MOUNT
(Superseded to 539062092)

$

$

Not available

14

Husqvarna 540200671

BOOT, GEN II
(Superseded to 539200671)

$

$

Not available

14

Husqvarna 540200818

BOOT, GEN I
(Superseded to 539200818)

$

$

Not available

15

Husqvarna 540093814

BOOT ROD - 14"

$

$

Not available

16

Husqvarna 540099074

WASHER, 1/4

$

$

Currently unavailable

17

Husqvarna 540099072

NUT, 1/4-20, NYLOC

$

$

Currently unavailable

18

Husqvarna 540099027

SCREW SET, 3/8-24 X 3/8
(Superseded to 539108557)

$

$

Not available

19

Husqvarna 540099079

HEX NUT - NYLON LOCK 5/16-18
(Superseded to 539990717)

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540000413

WASHER, 5/16

$

$

Currently unavailable

21

Husqvarna 540099077

BOLT, 5/16-18 X 1

$

$

Currently unavailable

22

Husqvarna 540200863

BRACKET
(Superseded to 539108273)

$56.99

$

Usually ships in 3-10 days

0

23

Husqvarna 540099082

PIN, HAIR COTTER #13 5/64 X 1

$

$

Not available

Husqvarna 540097136

HOSE 7" X 36"
(Superseded to 523000201)

Note: (NOT SHOWN)

$

$

Not available

Husqvarna 540097154

HOSE 7 X 54
(Superseded to 539111314)

Note: (NOT SHOWN)

$

$

Not available
