Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) Frame, Rear Hub And Front Wheel Fork Parts Diagram

Zero-Turn Mower, Drive Unit Only

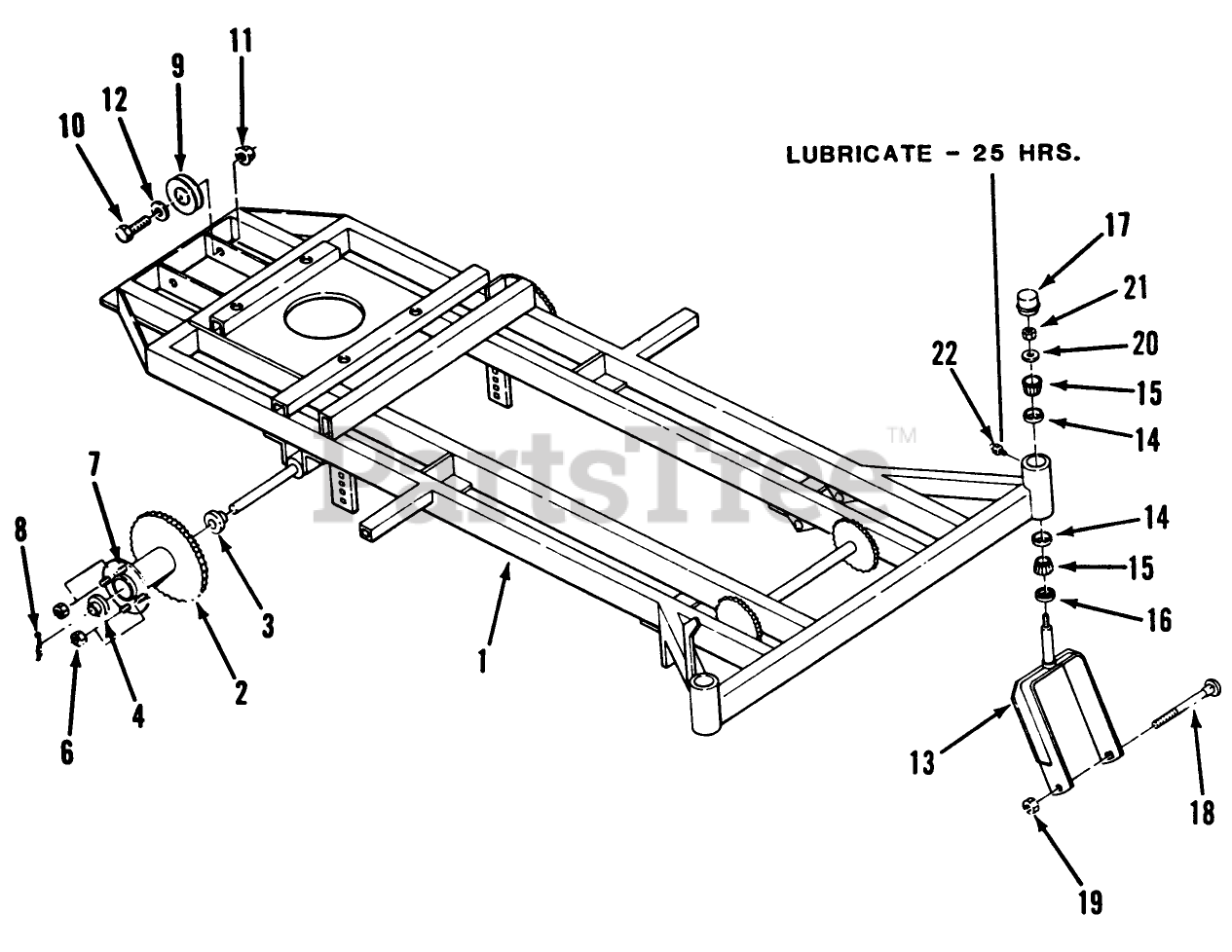

Frame, Rear Hub And Front Wheel Fork Parts Diagram

  • Title

1

Toro 111878

DISCONTINUED

$

$

Not available

2

Toro 111894

DISCONTINUED

$

$

Not available

3

Toro 111883

See Supercession: 113529
(Superseded to 113529)

$

$

Not available

4

Toro 10216

DISCONTINUED

$

$

Not available

6

Toro N113

See Supercession: 242-50
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 12

0

7

Toro B127

DISCONTINUED

$

$

Not available

8

Toro 933188

Roll Pin
(Superseded to 32121-93)

$

$

Not available

9

Toro 111170

PULLEY-IDLER

$

$

Not available

10

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

11

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 5

0

12

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 10201

Front Wheel Forks

$

$

Currently unavailable

14

Toro 10206

See Supercession: 704134
(Superseded to 704134)

$

$

Not available

15

Toro 10207

See Supercession: 254-94
(Superseded to 254-94)

$9.99

$

In Stock, Qty 20+

0

16

Toro 10208

See Supercession: 113504
(Superseded to 113-504)

$3.23

$

Usually ships in 3-6 days

0

17

Toro 10220

See Supercession: 112825
(Superseded to 112825)

$

$

Not available

18

Toro B122

See Supercession: 327-15
(Superseded to 327-15)

$19.99

$

Usually ships in 3-6 days

0

19

Toro 915667

DISCONTINUED

$

$

Not available

20

Toro W107

DISCONTINUED PRC4

$

$

Not available

21

Toro 915030

See Supercession: 32136-4
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

22

Toro 1030

DUP PART SEE $BOOK

$

$

Not available
