Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) Mower Spindle And Belts Parts Diagram

Zero-Turn Mower, Drive Unit Only

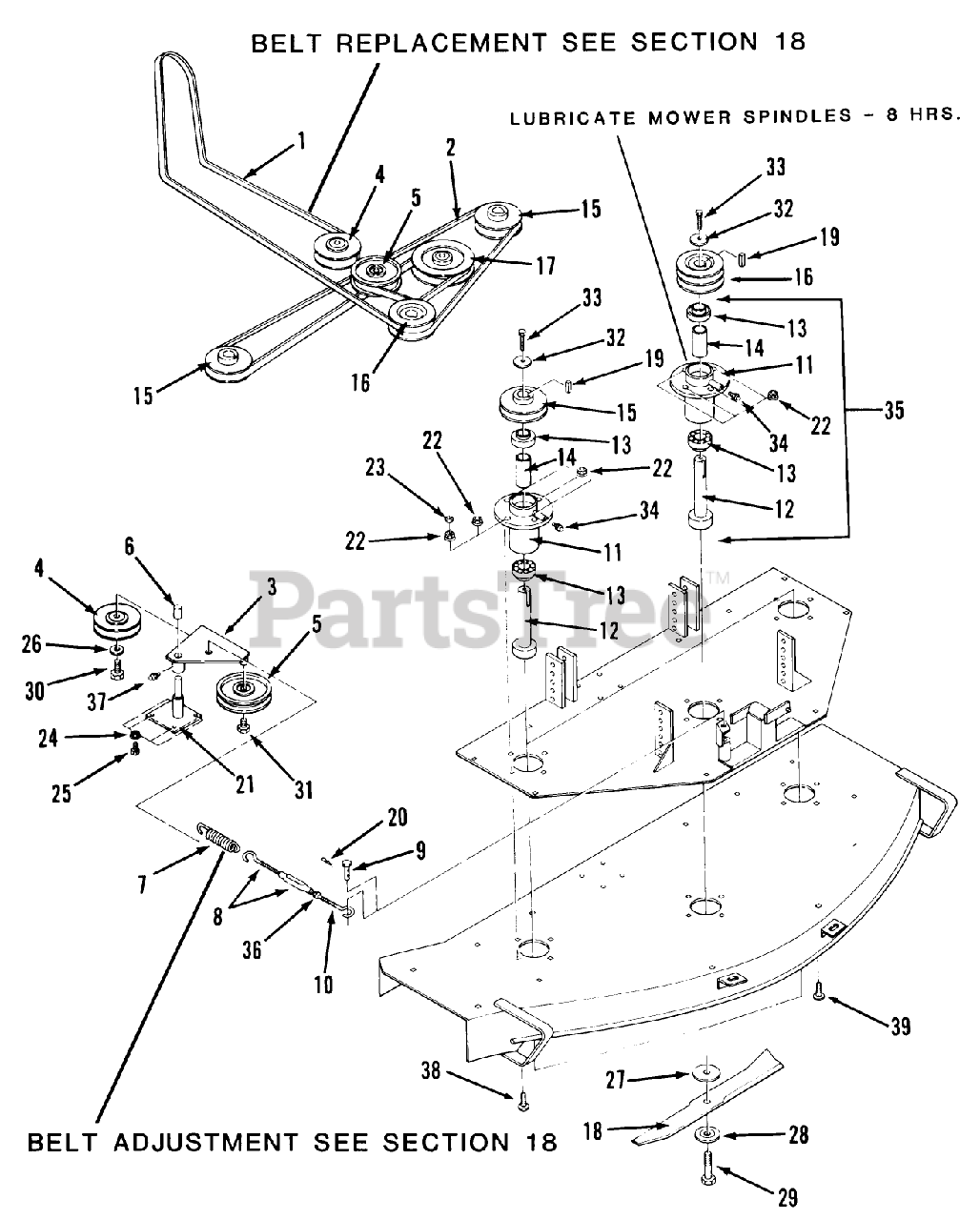

Mower Spindle And Belts Parts Diagram

  • Title

1

Toro 109909

V-BELT

$205.99

$

Usually ships in 3-6 days

0

2

Toro 30203

DUP PART SEE $BOOK

$

$

Not available

3

Toro 112432

DISCONTINUE

$

$

Not available

4

Toro 105616

DISCONTINUED

$

$

Not available

5

Toro 30224

Flat Idler

$

$

Currently unavailable

6

Toro 30206

See Supercession: 113597
(Superseded to 113597)

$9.99

$

Usually ships in 3-6 days

0

7

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

8

Toro 30208

DISCONTINUED

$

$

Not available

9

Toro 111880

Idler Spring Pin

$

$

Not available

10

Toro 111881

DISCONTINUED

$

$

Not available

11

Toro 30216

Mower Hub

$

$

Not available

12

Toro 30217

SHAFT MOWER SPINDLE

$

$

Not available

13

Toro 30218

Mower Bearing
(Superseded to 113530)

$

$

Not available

14

Toro 30219

Spacer

$

$

Not available

15

Toro 30220

DISCONTINUED

$

$

Not available

16

Toro 111888

DISCONTINUED

$

$

Not available

17

Toro 30224

Flat Idler

$

$

Currently unavailable

18

Toro 30227

See Supercession: 113579
(Superseded to 113579)

$33.99

$

Usually ships in 3-6 days

0

19

Toro 30228

DISCONTINUED

$

$

Not available

20

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

21

Toro 30235

See Supercession: 112943
(Superseded to 112943)

$

$

Not available

22

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 5

0

23

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

24

Toro N102

DISCONTINUED

$

$

Not available

25

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

27

Toro W101

DISCONTINUED

$

$

Not available

28

Toro W100

DISCONTINUED

$

$

Not available

29

Toro B121

DISCONTINUED

$

$

Not available

30

Toro B120

See Supercession: 327-2
(Superseded to 327-2)

$3.49

$

Usually ships in 3-6 days

0

31

Toro 908056

DISCONTINUED

$

$

Not available

32

Toro W107

DISCONTINUED PRC4

$

$

Not available

33

Toro 908184

See Supercession: 3211-5
(Superseded to 3-2115)

$

$

Not available

34

Toro 1291

DISCONTINUED

$

$

Not available

35

Toro 10161

See Supercession: 111013
(Superseded to 111013)

$

$

Not available

36

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

37

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

38

Toro 900063

See Supercession: 3231-2
(Superseded to 323-12)

$2.99

$

In Stock, Qty 7

0

39

Toro 900064

See Supercession: 3231-25
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0
