Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) MOWER SPINDLE AND BELTS Parts Diagram

Zero-Turn Mower, Drive Unit Only

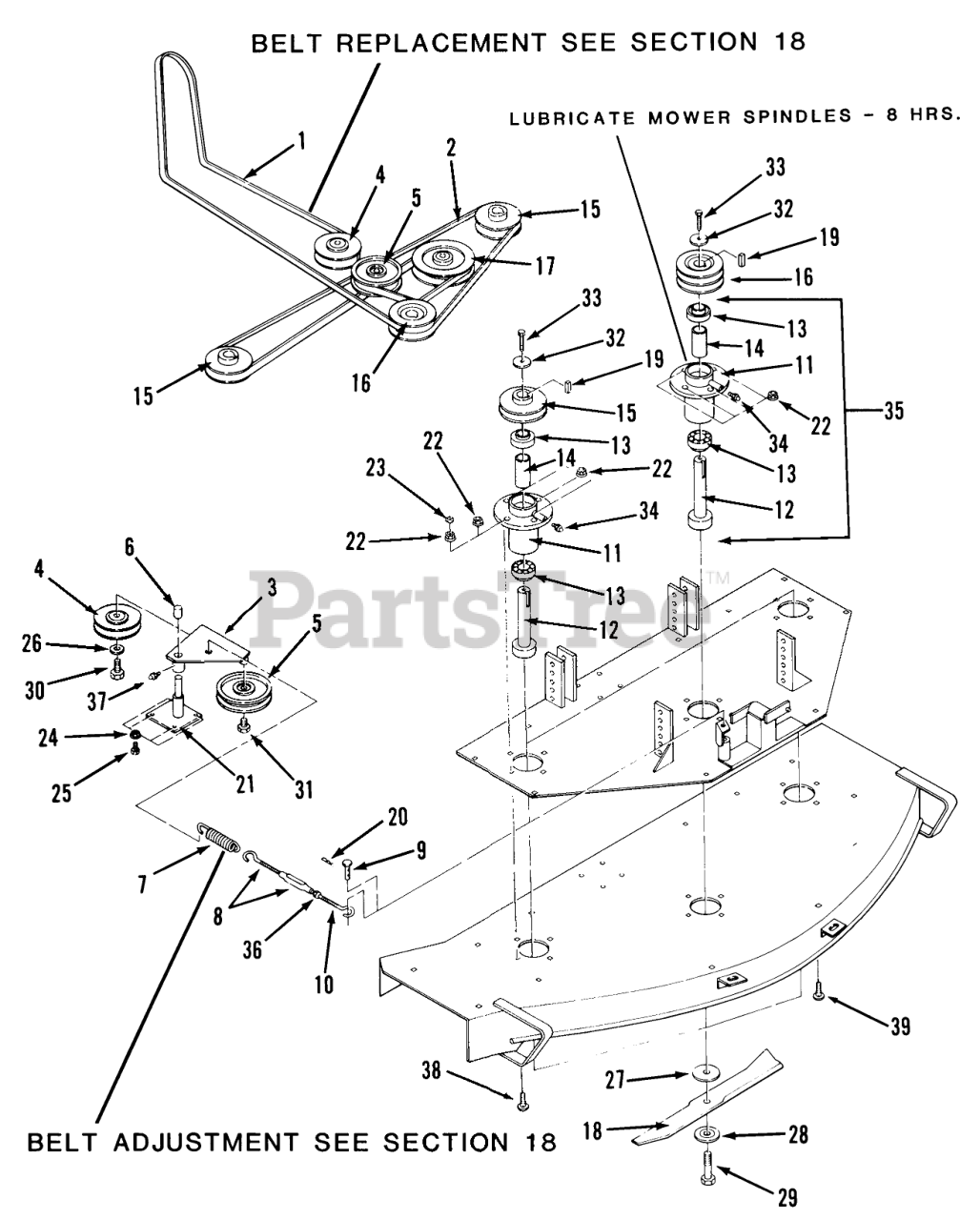

MOWER SPINDLE AND BELTS Parts Diagram

  • Title

1

Toro 109909

V-BELT

$171.99

$

Usually ships in 3-6 days

0

2

Toro 30203

Mower Spindle Belt (105.5")

$

$

Not available

3

Toro 112432

Belt Tensioning Swing Arm

$

$

Not available

4

Toro 105616

PULLEY-V IDLER

$

$

Not available

5

Toro 30224

Flat Idler

$

$

Currently unavailable

6

Toro 30206

Bronze Bushing
(Superseded to 113597)

$8.49

$

Usually ships in 3-6 days

0

7

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, Qty 14

0

8

Toro 30208

TURNBUCKLE

$

$

Not available

9

Toro 111880

Idler Spring Pin

$

$

Not available

10

Toro 111881

EYEBOLT B-150-K

$

$

Not available

11

Toro 30216

Mower Hub

$

$

Not available

12

Toro 30217

SHAFT MOWER SPINDLE

$

$

Not available

13

Toro 30218

Mower Bearing
(Superseded to 113530)

$

$

Not available

14

Toro 30219

Spacer

$

$

Not available

15

Toro 30220

Sheave-1 Groove

$

$

Not available

16

Toro 111888

PULLEY 2-GROOVE

$

$

Not available

17

Toro 30224

Flat Idler

$

$

Currently unavailable

18

Toro 30227

Mower Blade 17"
(Superseded to 113579)

$30.99

$

In Stock, only 3 left!

0

19

Toro 30228

KEY

$

$

Not available

20

Toro 933512

Hairpin
(Superseded to 9335124)

$2.99

$

In Stock, only 1 left!

0

21

Toro 30235

Belt Tensioning Pivot
(Superseded to 112943)

$

$

Not available

22

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 7

0

23

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

24

Toro N102

Hex Nut 1/4-20

$

$

Not available

25

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Toro 920087

Lockwasher
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

27

Toro W101

WASHER FIBER

$

$

Not available

28

Toro W100

WASHER CUPPED

$

$

Not available

29

Toro B121

BOLT HEX 5/8-18X21/2

$

$

Not available

30

Toro B120

Hex Bolt 5/8-11 x 1
(Superseded to 327-2)

$3.49

$

Usually ships in 3-6 days

0

31

Toro 908056

Hex Bolt 1/2-13 x 3/4

$

$

Not available

32

Toro W107

Cupped Washer

$

$

Not available

33

Toro 908184

Bolt 3/8-24 x -1/4
(Superseded to 3-2115)

$

$

Not available

34

Toro 1291

ZERK 90DEGREE

$

$

Not available

35

Toro 10161

Spindle Assembly (Includes items 11, 12, 13 & 34)
(Superseded to 111013)

$

$

Not available

36

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

37

Toro 1030

Zerk

$

$

Not available

38

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

39

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0
