Z1-18KE01 (718-Z) - Toro Zero-Turn Mower, Drive Unit Only (1986) Transmission Drive (continued) Parts Diagram

Zero-Turn Mower, Drive Unit Only

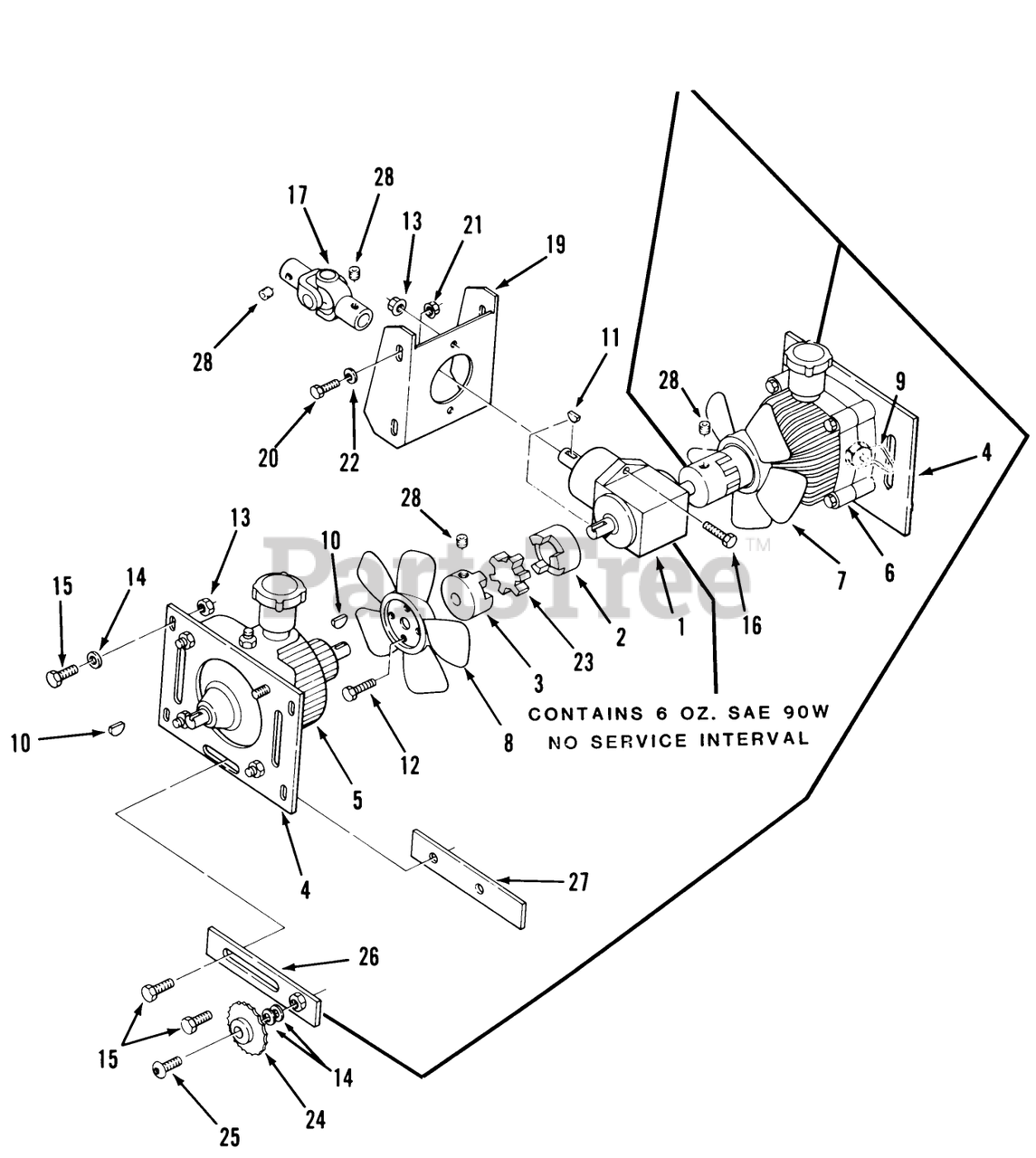

Transmission Drive (continued) Parts Diagram

  • Title

1

Toro 20201

See Supercession: 113640
(Superseded to 113640)

$

$

Not available

2

Toro 20202

See Supercession: 115857
(Superseded to 115857)

$198.99

$

In Stock, only 1 left!

0

3

Toro 20203

See Supercession: 115856
(Superseded to 115856)

$178.99

$

Usually ships in 3-6 days

0

4

Toro 20204

DISCONTINUED

$

$

Not available

5

Toro 20205

See Supercession: 113568
(Superseded to 113568)

$5397.99

$

Usually ships in 3-6 days

0

6

Toro 20206

See Supercession: 113569
(Superseded to 113569)

$

$

Not available

7

Toro 20207

See Supercession: 92-1799
(Superseded to 92-1799)

$

$

Not available

8

Toro 20208

See Supercession: 113650
(Superseded to 113650)

$

$

Not available

9

Toro 20233

See Supercession: 115960
(Superseded to 115960)

$

$

Not available

10

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

11

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, only 1 left!

0

12

Toro S100

See Supercession: 9264664
(Superseded to 9264664)

$

$

Not available

13

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 5

0

14

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

15

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

16

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

17

Toro 112484

DISCONTINUED
(Superseded to 112890)

$

$

Not available

19

Toro 111908

GEAR BOX BRKT 20104K

$

$

Not available

20

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 19

0

21

Toro 960010

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

22

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

23

Toro 20255

See Supercession: 113663
(Superseded to 113663)

$72.99

$

Usually ships in 3-6 days

0

24

Toro 111887

DISCONTINUED

$

$

Not available

25

Toro 111904

DISCONTINUED

$

$

Not available

26

Toro 112304

DISCONTINUED

$

$

Not available

27

Toro 112431

DISCONTINUE

$

$

Not available

28

Toro 909862

See Supercession: 3246-2
(Superseded to 3246-2)

$0.99

$

In Stock, Qty 10

0
