Z1-20KE01 (720-Z) - Toro Zero-Turn Mower, Drive Unit Only (1987) Mower Mount Parts Diagram

Zero-Turn Mower, Drive Unit Only

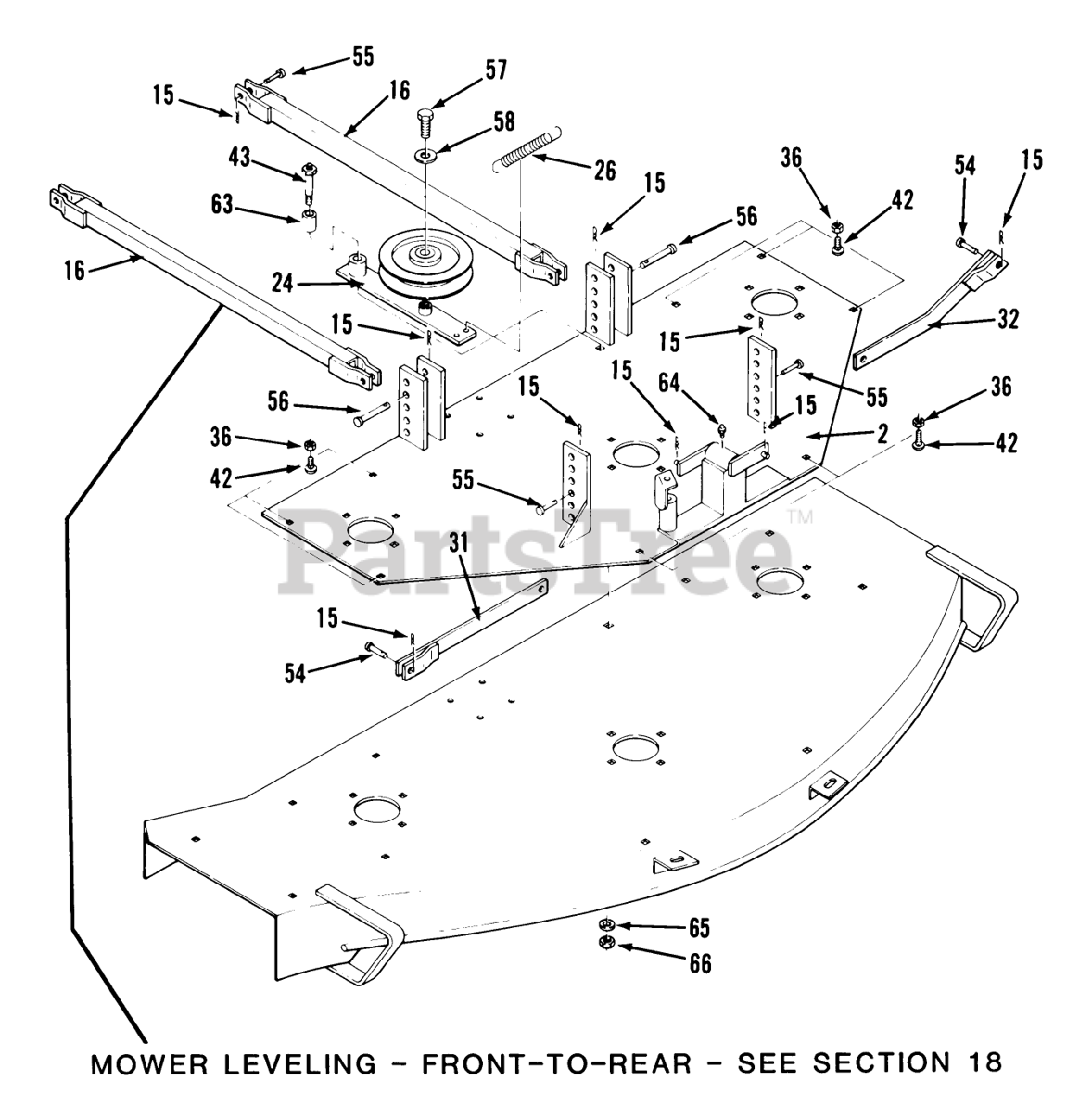

Mower Mount Parts Diagram

  • Title

2

Toro 30201

DISCONTINUED

$

$

Not available

2

Toro 112950

DISCONTINUED

$

$

Not available

15

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

16

Toro 113104

See Supercession: 113635-03
(Superseded to 113635-03)

$

$

Not available

24

Toro 113080

DISCONTINUED

$

$

Not available

26

Toro 30225

SPRING TENSION

$

$

Not available

31

Toro 30231

STABILIZER RH

$

$

Not available

32

Toro 30232

LH Stabilizer

$

$

Not available

36

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

36

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 5

0

42

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

42

Toro 900062

See Supercession: 3231-1
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

43

Toro 112960

See Supercession: 113629
(Superseded to 113629)

$341.99

$

Usually ships in 3-6 days

0

54

Toro P101

See Supercession: 283-61
(Superseded to 283-61)

$2.49

$

In Stock, only 2 left!

0

55

Toro 932964

See Supercession: 9329644
(Superseded to 9329644)

$

$

Not available

56

Toro P103

See Supercession: 9329674
(Superseded to 9329674)

$6.49

$

Usually ships in 3-6 days

0

57

Toro 908058

See Supercession: 325-5
(Superseded to 325-5)

$1.49

$

Usually ships in 3-6 days

0

58

Toro 920085

Lockwasher

$

$

Currently unavailable

63

Toro 20276

See Supercession: 113631
(Superseded to 113631)

$

$

Not available

64

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

65

Toro 920009

See Supercession: 3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

66

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, Qty 5

0
