Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) Section 3-Engine And Fuel Systems Parts Diagram

Zero-Turn Mower, Drive Unit Only

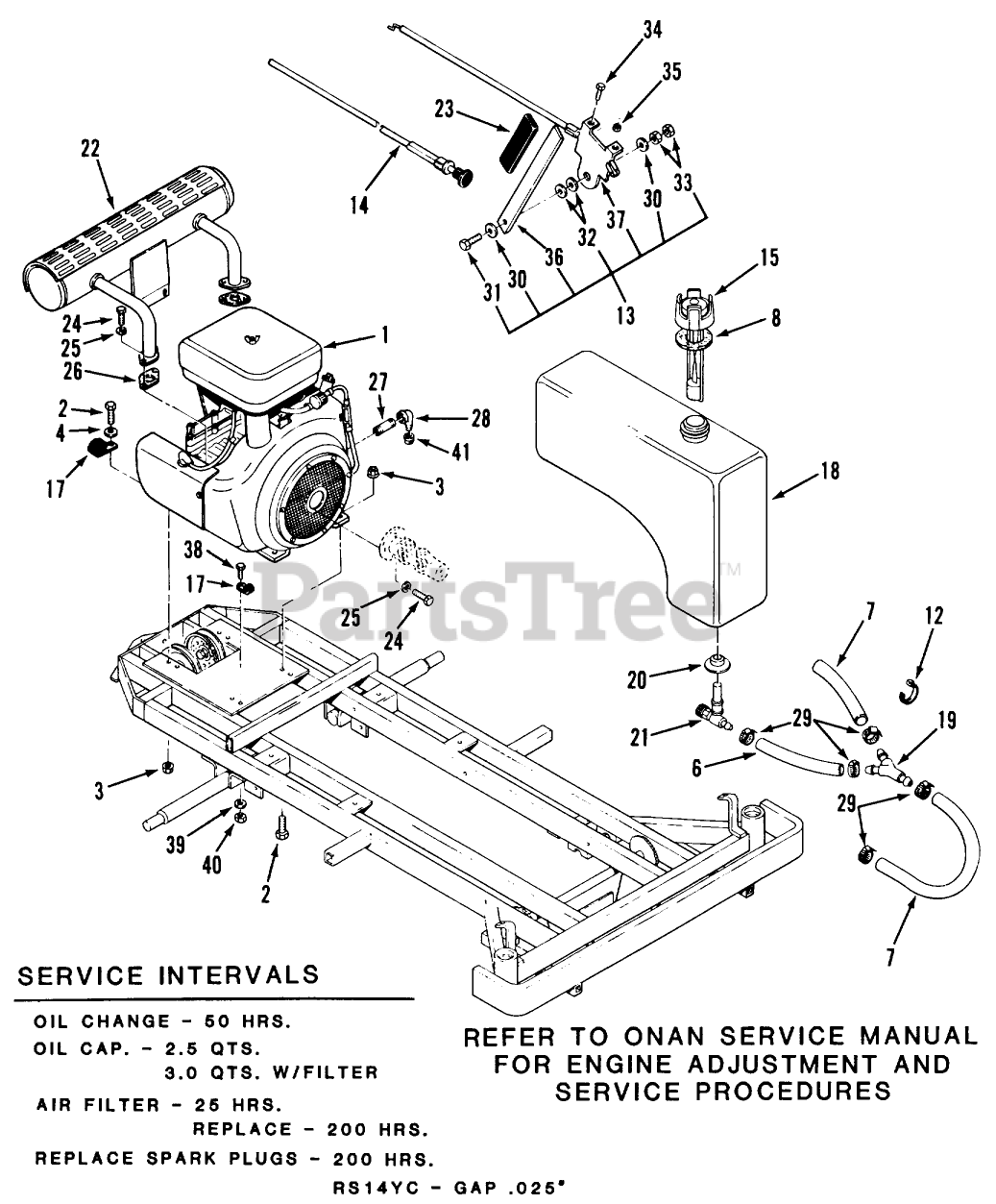

Section 3-Engine And Fuel Systems Parts Diagram

  • Title

1

Toro 113993

DISCONTINUED

$

$

Not available

2

Toro 908036

See Supercession: 323-8
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

3

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

4

Toro 920039

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 111914

See Supercession: 109-0678
(Superseded to 109-0678)

$5.99

$

Usually ships in 3-6 days

0

7

Toro 113692

See Supercession: 109-3491
(Superseded to 109-3491)

$28.99

$

Usually ships in 3-6 days

0

8

Toro 106931

DISCONTINUED

$

$

Not available

12

Toro 113589

DISCONTINUED

$

$

Not available

13

Toro 114159

Throttle Control (includes items 30 thru 33, 36 and 37)

$

$

Not available

14

Toro 113693

CABLE-CHOKE

$99.99

$

Usually ships in 3-6 days

0

15

Toro 113646

See Supercession: 113648
(Superseded to 113648)

$

$

Not available

Toro 113648

ASSY-GAGE CAP

$

$

Not available

17

Toro 8830

CLIP

$2.49

$

In Stock, only 1 left!

0

18

Toro 113558

See Supercession: 78-3270
(Superseded to 78-3270)

$

$

Not available

19

Toro 111879

DISCONTINUED

$

$

Not available

20

Toro 104047

See Supercession: 46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$40.99

$

In Stock, only 1 left!

0

22

Toro 113995

See Supercession: 117580
(Superseded to 117580)

$1874.99

$

Usually ships in 3-6 days

0

23

Toro 111922

GRIP BRAKE20258-K

$

$

Not available

24

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 19

0

25

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

26

Toro 114514

See Supercession: 82-1520
(Superseded to 82-1520)

$

$

Not available

27

Toro 114636

See Supercession: 289-45
(Superseded to 289-45)

$

$

Not available

28

Toro 115162

DISCONTINUED

$

$

Not available

29

Toro 108898

DISCONTINUED
(Superseded to 950154)

$

$

Not available

30

Toro 908018

See Supercession: 322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

31

Toro 908018

See Supercession: 322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

32

Toro 920230

WASHER NYLON

$

$

Not available

33

Toro 112536

DISCONTINUED

$

$

Not available

34

Toro 913111

See Supercession: 3290-321
(Superseded to 3290-321)

$4.99

$

Usually ships in 3-6 days

0

35

Toro 915740

See Supercession: 3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 11

0

36

Toro 113694

DISCONTINUED

$

$

Not available

37

Toro 113695

DISCONTINUED

$

$

Not available

38

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

40

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

41

Toro 5225

Cap

$

$

Currently unavailable

Toro 965-0760

See Supercession: 492-4212
(Superseded to 492-4212)

Note: Not illustrated

$

$

Not available
