Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) SECTION 3-ENGINE AND FUEL SYSTEMS Parts Diagram

Zero-Turn Mower, Drive Unit Only

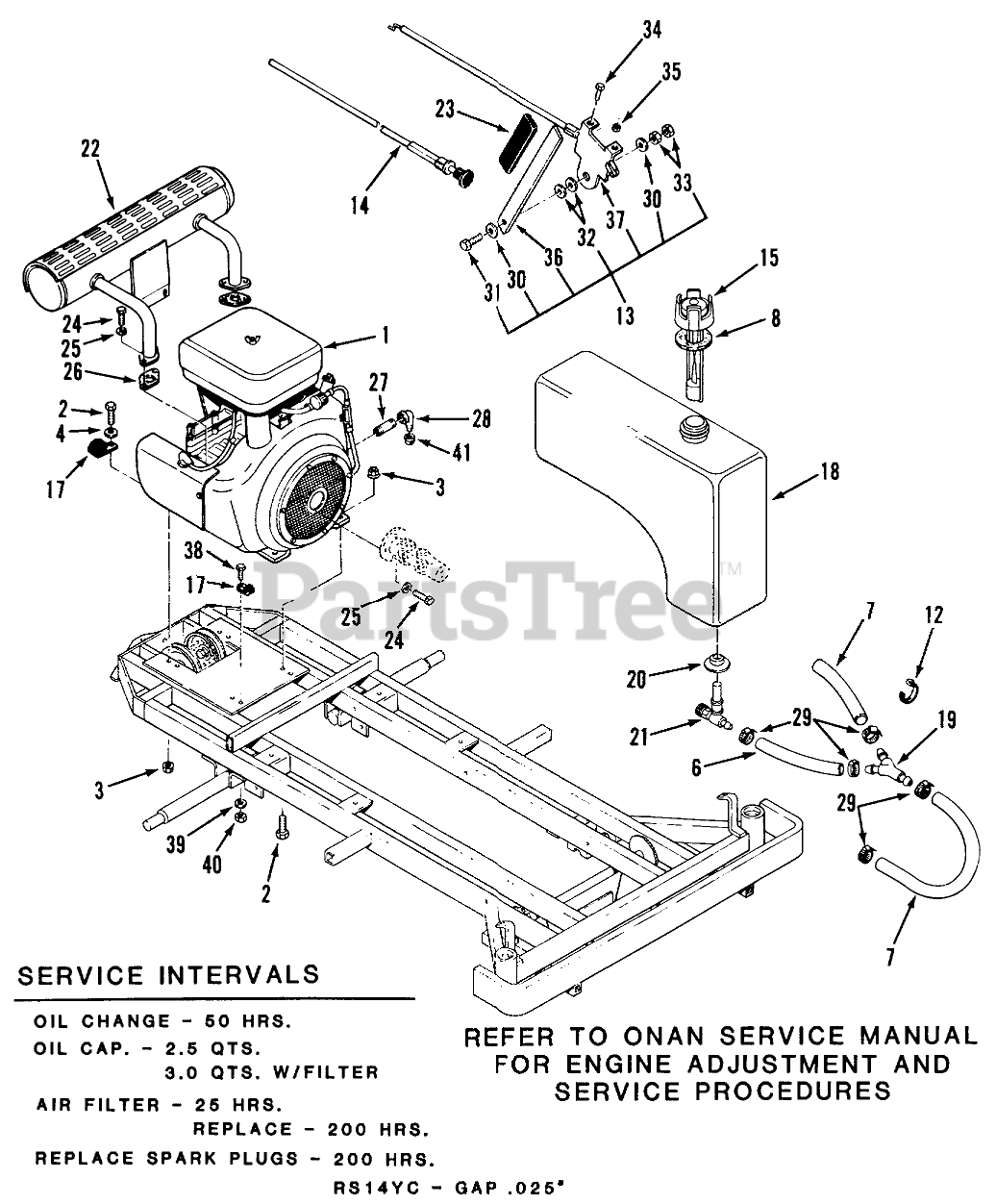

SECTION 3-ENGINE AND FUEL SYSTEMS Parts Diagram

  • Title

1

Toro 113993

Engine-24 HP Onan (T260G-GA024 Spec. No. 4404F).

$

$

Not available

2

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

3

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

4

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

6

Toro 111914

Hose5"
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 113692

Fuel Line (29.5")
(Superseded to 109-3491)

$25.99

$

Usually ships in 3-6 days

0

8

Toro 106931

GASKET-GAS CAP

$

$

Not available

12

Toro 113589

TIE-PLASTIC

$

$

Not available

13

Toro 114159

Throttle Control (includes items 30 thru 33, 36 and 37)

$

$

Not available

14

Toro 113693

CABLE-CHOKE

$74.99

$

Usually ships in 3-6 days

0

15

Toro 113646

Fuel Gauge Cap w/o Screw Vent (includes item 8).
(Superseded to 113648)

$

$

Not available

Toro 113648

Fuel Gauge Cap w/ Screw Vent (includes item 8)

$

$

Not available

17

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

18

Toro 113558

Fuel Tank (includes items 20 & 21)
(Superseded to 78-3270)

$

$

Not available

19

Toro 111879

FITTING-FUEL 45-Y

$

$

Not available

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

21

Toro 104048

VALVE-FUEL

$31.99

$

In Stock, Qty 7

0

22

Toro 113995

Muffler
(Superseded to 117580)

$1416.99

$

Usually ships in 3-6 days

0

23

Toro 111922

GRIP BRAKE20258-K

$3.99

$

Usually ships in 3-6 days

0

24

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

25

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

26

Toro 114514

Exhaust Gasket
(Superseded to 82-1520)

$19.99

$

Usually ships in 3-6 days

0

27

Toro 114636

Pipe
(Superseded to 289-45)

$19.99

$

Usually ships in 3-6 days

0

28

Toro 115162

STREET-ELBOW 90 DEG

$

$

Not available

29

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

30

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

31

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

32

Toro 920230

WASHER NYLON

$

$

Not available

33

Toro 112536

LOCKNUT 5/16-18GR.B

$

$

Not available

34

Toro 913111

Screw-Machine
(Superseded to 3290-321)

$4.49

$

In Stock, only 2 left!

0

35

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 113694

HANDLE-THROTTLE B

$

$

Not available

37

Toro 113695

CABLE-THROTTLE

$

$

Not available

38

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

39

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

40

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

41

Toro 5225

Cap

$

$

Currently unavailable

Toro 965-0760

Onan T-260 Service Manual
(Superseded to 492-4212)

Note: Not illustrated

$

$

Not available
