Z1-24OE01 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1988) Section 3-Engine Cylinder Block Parts Diagram

Zero-Turn Mower, Drive Unit Only

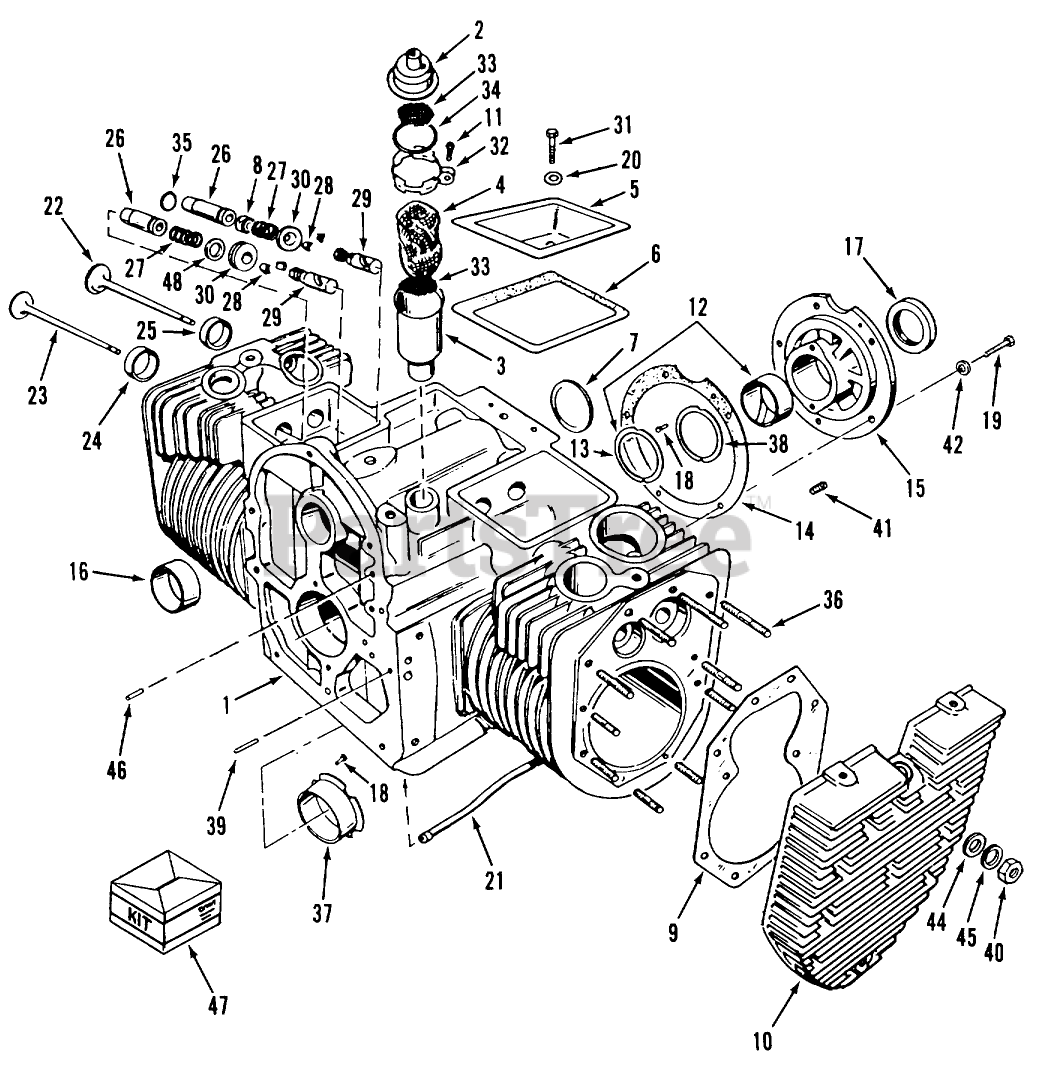

Section 3-Engine Cylinder Block Parts Diagram

  • Title

1

Toro NN10458

See Supercession: NN10692
(Superseded to NN10692)

$

$

Not available

2

Toro NN10150

DISCONTINUED
(Superseded to 82-0550)

$

$

Not available

3

Toro NN10149

See Supercession: 82-0540
(Superseded to 82-0540)

$

$

Not available

4

Toro NN10156

See Supercession: 57-8580
(Superseded to 57-8580)

$6.99

$

Usually ships in 3-6 days

0

5

Toro NN10045

DISCONTINUED

$

$

Not available

6

Toro NN10469

See Supercession: 82-0260
(Superseded to 82-0260)

$

$

Not available

7

Toro NN10338

See Supercession: 57-9690
(Superseded to 57-9690)

$18.99

$

Usually ships in 3-6 days

0

8

Toro NN10436

See Supercession: 82-0270
(Superseded to 82-0270)

$

$

Not available

9

Toro NN10067

See Supercession: 82-0130
(Superseded to 82-0130)

$111.99

$

Usually ships in 3-6 days

0

10

Toro NN10467

See Supercession: 82-0210
(Superseded to 82-0210)

$

$

Not available

11

Toro NN10387

See Supercession: 82-1480
(Superseded to 82-1480)

$

$

Not available

12

Toro NN10009

See Supercession: 57-8050
(Superseded to 57-8050)

$275.99

$

Usually ships in 3-6 days

0

Toro NN10010

See Supercession: 59-0020
(Superseded to 59-0020)

$

$

Not available

Toro NN10011

See Supercession: 57-8060
(Superseded to 57-8060)

$

$

Not available

Toro NN10012

DISCONTINUED
(Superseded to 59-0030)

$

$

Not available

Toro NN10013

See Supercession: 59-0040
(Superseded to 59-0040)

$

$

Not available

13

Toro NN10022

See Supercession: 57-8160
(Superseded to 57-8160)

$

$

Not available

14

Toro NN10554

See Supercession: 57-8010
(Superseded to 57-8010)

$32.99

$

In Stock, only 2 left!

0

15

Toro NN10008

See Supercession: 82-0020
(Superseded to 82-0020)

$

$

Not available

16

Toro NN10001

See Supercession: 57-8000
(Superseded to 57-8000)

$

$

Not available

17

Toro NN10321

See Supercession: 57-9590
(Superseded to 57-9590)

$94.99

$

In Stock, only 1 left!

0

18

Toro NN10334

See Supercession: 59-0730
(Superseded to 59-0730)

$

$

Not available

19

Toro NN10422

DISCONTINUED

$

$

Not available

20

Toro NN10359

See Supercession: 57-9740
(Superseded to 57-9740)

$

$

Not available

21

Toro NN10137

See Supercession: 82-0480
(Superseded to 82-0480)

$

$

Not available

22

Toro NN10051

DISCONTINUED

$

$

Not available

23

Toro NN10052

EXHAUST VALVE

$

$

Not available

24

Toro NN10046

See Supercession: 82-0080
(Superseded to 82-0080)

$

$

Not available

Toro NN10047

See Supercession: 82-0090
(Superseded to 82-0090)

$

$

Not available

Toro NN10048

DISCONTINUED XREF

$

$

Not available

Toro NN10049

See Supercession: 82-0110
(Superseded to 82-0110)

$

$

Not available

Toro NN10050

See Supercession: 82-0120
(Superseded to 82-0120)

$

$

Not available

25

Toro NN10443

See Supercession: 82-0160
(Superseded to 82-0160)

$

$

Not available

Toro NN10449

DISCONTINUED

$

$

Not available

Toro NN10450

DISCONTINUED

$

$

Not available

Toro NN10451

DISCONTINUED

$

$

Not available

Toro NN10454

See Supercession: 92-0927
(Superseded to 92-0927)

$

$

Not available

26

Toro NN10069

See Supercession: 82-0140
(Superseded to 82-0140)

$

$

Not available

Toro NN10068

DISCONTINUED

$

$

Not available

27

Toro NN10040

See Supercession: 57-8250
(Superseded to 57-8250)

$

$

Not available

28

Toro NN10041

See Supercession: 57-8260
(Superseded to 57-8260)

$

$

Not available

29

Toro NN10129

DISCONTINUED
(Superseded to 57-8450)

$

$

Not available

Toro NN10131

DISCONTINUED
(Superseded to 59-0260)

$

$

Not available

30

Toro NN10043

See Supercession: 57-8270
(Superseded to 57-8270)

$

$

Not available

31

Toro NN10371

See Supercession: 82-1380
(Superseded to 82-1380)

$

$

Not available

32

Toro NN10148

DISCONTINUED
(Superseded to 82-0530)

$

$

Not available

33

Toro NN10151

DISCONTINUED
(Superseded to 82-0560)

$

$

Not available

34

Toro NN10322

See Supercession: 82-0570
(Superseded to 82-0570)

$16.99

$

Usually ships in 3-6 days

0

35

Toro NN10034

See Supercession: 57-8240
(Superseded to 57-8240)

$

$

Not available

36

Toro NN10351

See Supercession: 92-0928
(Superseded to 92-0928)

$

$

Not available

Toro NN10349

See Supercession: 82-1230
(Superseded to 82-1230)

$

$

Not available

Toro NN10350

See Supercession: 82-1240
(Superseded to 82-1240)

$6.99

$

Usually ships in 3-6 days

0

37

Toro NN10003

See Supercession: 57-8030
(Superseded to 57-8030)

$

$

Not available

Toro NN10004

See Supercession: 57-9360
(Superseded to 57-9360)

$

$

Not available

Toro NN10005

See Supercession: 57-8030
(Superseded to 57-8030)

$

$

Not available

Toro NN10006

See Supercession: 57-9800
(Superseded to 57-9800)

$

$

Not available

Toro NN10007

See Supercession: 59-0010
(Superseded to 59-0010)

$

$

Not available

38

Toro NN10023

See Supercession: 57-8170
(Superseded to 57-8170)

$

$

Not available

39

Toro NN10336

See Supercession: 59-0750
(Superseded to 59-0750)

$

$

Not available

40

Toro NN10437

See Supercession: 82-0040
(Superseded to 82-0040)

$

$

Not available

41

Toro NN10385

See Supercession: 3247-4
(Superseded to 3247-4)

$6.49

$

Usually ships in 3-6 days

0

42

Toro NN10421

See Supercession: 3253-5
(Superseded to 325-35)

$12.99

$

Usually ships in 3-6 days

0

44

Toro NN10366

See Supercession: 82-1300
(Superseded to 82-1300)

$

$

Not available

45

Toro NN10423

See Supercession: 82-1650
(Superseded to 82-1650)

$

$

Not available

46

Toro NN10339

See Supercession: 59-0760
(Superseded to 59-0760)

$

$

Not available

47

Toro NN10256

See Supercession: NN10923
(Superseded to NN10923)

$

$

Not available

Toro NN10255

See Supercession: 82-0950
(Superseded to 82-0950)

$

$

Not available

48

Toro NN10042

See Supercession: 82-0070
(Superseded to 82-0070)

$

$

Not available
