Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 10-ATTACHMENT HEIGHT CONTROL Parts Diagram

Zero-Turn Mower, Drive Unit Only

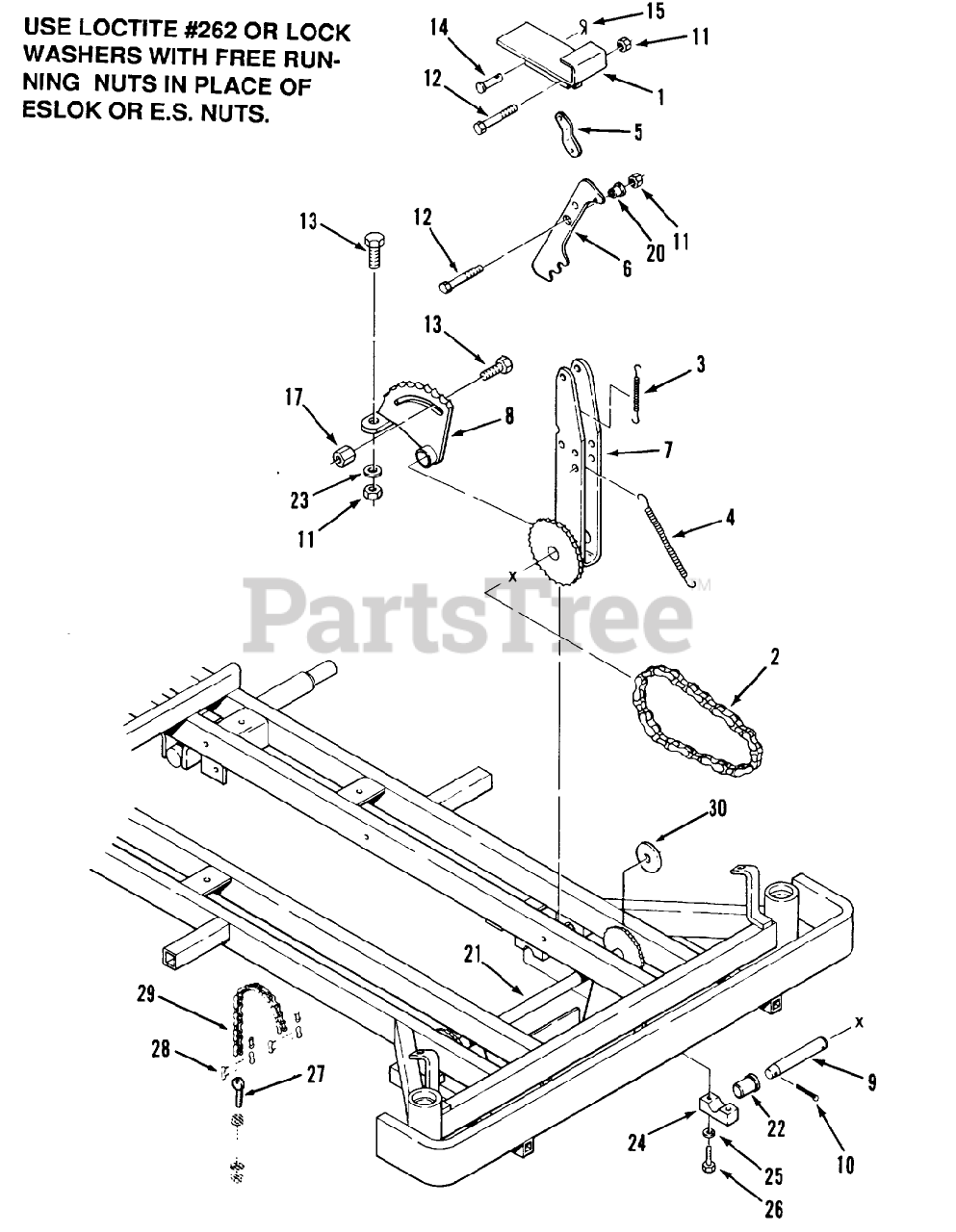

SECTION 10-ATTACHMENT HEIGHT CONTROL Parts Diagram

  • Title

1

Toro 112954

PEDAL-FOOT 10218- B

$

$

Not available

2

Toro 115855

CHAIN-FOOT PEDAL DR

$

$

Not available

3

Toro 113081

SPG-NEUTRAL 20217-35

$13.99

$

In Stock, only 1 left!

0

4

Toro 114183

SPRING - EXTENSION

$92.99

$

Usually ships in 3-6 days

0

5

Toro 112955

PIVOT-LINK B

$

$

Not available

6

Toro 112956

LIFT-ARM PWL B

$

$

Not available

7

Toro 112957

ASSY-LVR ARM 1022 B

$120.99

$

Usually ships in 3-6 days

0

8

Toro 112958

HEIGHT CONTROL SP B

$

$

Not available

9

Toro 113149

PIN-PEDAL

$

$

Not available

10

Toro 932028

Cotter Pin
(Superseded to 3272-19)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

12

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, Qty 13

0

13

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

14

Toro 932957

Pin-Clevis
(Superseded to 283-61)

$1.99

$

In Stock, only 2 left!

0

15

Toro 932009

Cotter Pin
(Superseded to 3272-9)

$0.99

$

Usually ships in 3-6 days

0

17

Toro 112941

HEX-STOP NUT N-140

$

$

Not available

20

Toro 113146

BUSHING-PDL

$

$

Not available

21

Toro 113684

ASM-Sprocket
(Superseded to 113684-03)

$295.99

$

Usually ships in 3-6 days

0

22

Toro 113687

BEARING-FLANGED

$

$

Not available

23

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

24

Toro 113562

Cross Shaft Clamp (included w/ frame)
(Superseded to 114294)

$

$

Not available

25

Toro 920083

Lockwasher 3/8 (included w/ frame)
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

26

Toro 908035

Bolt 3/8-16 x 1-1/4 (included w/ frame)
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

27

Toro 113697

EYE-BOLT 3/8-16X2.50

$

$

Not available

28

Toro 6392

MASTER LINK CHAIN
(Superseded to 2710-11)

$5.99

$

In Stock, only 1 left!

0

29

Toro 113699

CHAIN-DECK LIFT

$46.99

$

Usually ships in 3-6 days

0

30

Toro 920225

Washer
(Superseded to 9202254)

$3.49

$

In Stock, only 2 left!

0
