Z1-24OE02 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1989) SECTION 3-AIR CLEANER AND FUEL SYSTEH Parts Diagram

Zero-Turn Mower, Drive Unit Only

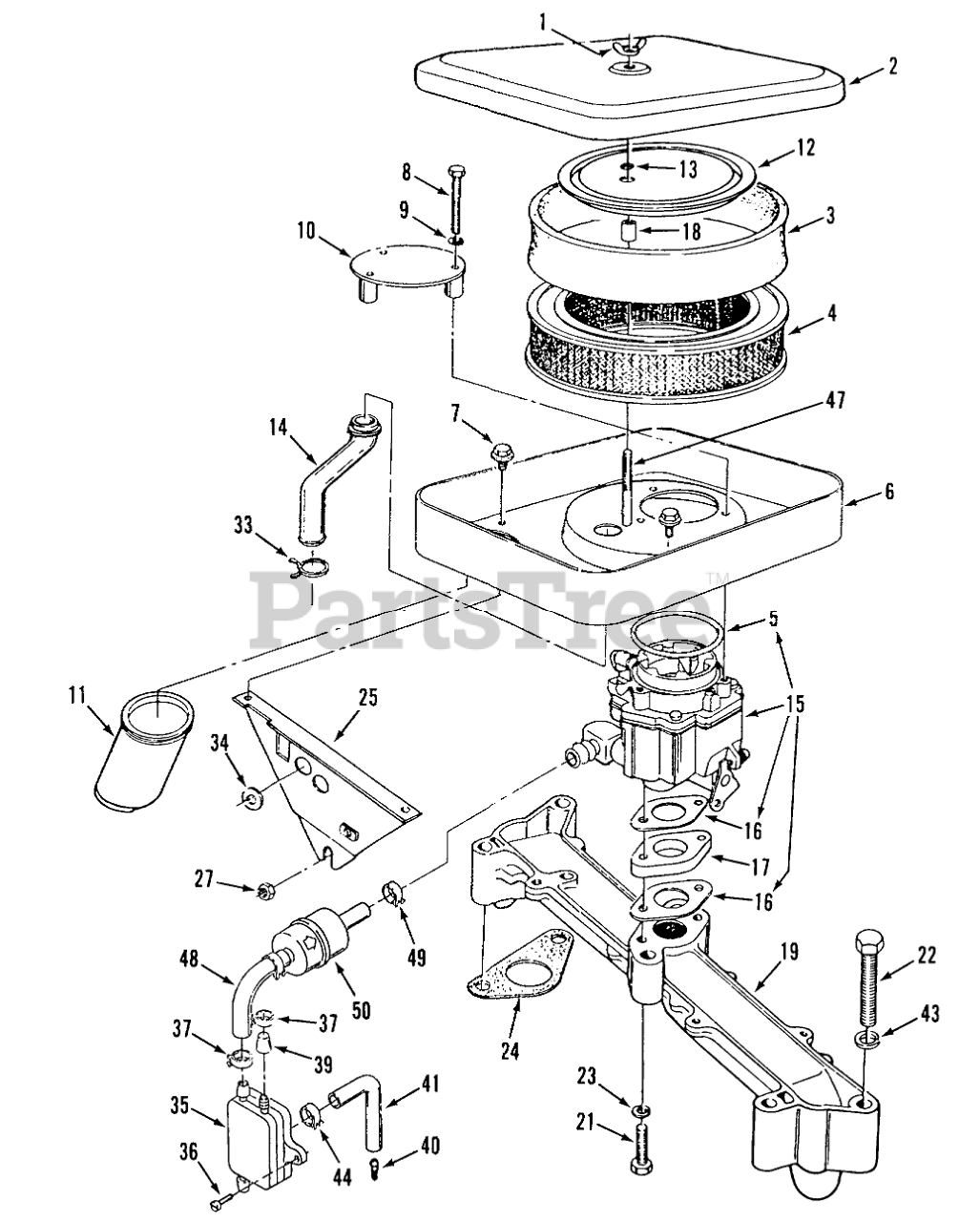

SECTION 3-AIR CLEANER AND FUEL SYSTEH Parts Diagram

  • Title

1

Toro NN10427

Nut-Wing
(Superseded to 92-0913)

$

$

Not available

2

Toro NN10182

Air Cleaner Cover
(Superseded to 82-0690)

$

$

Not available

3

Toro NN10181

Air Cleaner Foam Element
(Superseded to 82-0670)

$49.99

$

Usually ships in 3-6 days

0

4

Toro NN10180

Air Cleaner Element
(Superseded to 82-0660)

$31.99

$

Usually ships in 3-6 days

0

5

Toro NN10324

"O" Ring
(Superseded to 57-9620)

$6.99

$

Usually ships in 3-6 days

0

6

Toro NN10179

AIR CLEANER HOUSING

$

$

Not available

7

Toro NN10392

Bolt
(Superseded to 59-0970)

$6.49

$

Usually ships in 3-6 days

0

8

Toro NN10398

Screw Hex Hd. #10-32 x 1-1/2
(Superseded to 82-1530)

$

$

Not available

9

Toro NN10354

Flat Washer #10
(Superseded to 59-0800)

$

$

Not available

10

Toro NN10194

Air Deflector Plate
(Superseded to 92-0946)

$

$

Not available

11

Toro NN10178

Air Intake Tube

$

$

Not available

12

Toro NN10177

Element Cover
(Superseded to 82-0650)

$

$

Not available

13

Toro NN10429

Hex Nut 1/4-20
(Superseded to 82-1680)

$

$

Not available

14

Toro NN10155

BREATHER TUBE

$

$

Not available

15

Toro NN10205

Carburetor Complete-See Section 3-8 for complete carb. breakdown (includes mounting gasket)
(Superseded to 93-1676)

$683.99

$

Usually ships in 3-6 days

0

16

Toro NN10235

Gasket
(Superseded to 82-0850)

$11.99

$

In Stock, only 1 left!

0

17

Toro NN10195

CARBURETOR ADAPTER

$

$

Not available

18

Toro NN10272

Spacer
(Superseded to 82-0980)

$14.99

$

Usually ships in 3-6 days

0

19

Toro NN10241

Intake Manifold
(Superseded to 82-0870)

$674.99

$

Usually ships in 3-6 days

0

21

Toro NN10376

Bolt
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

22

Toro NN10378

Hex Hd. Cap Screw 3/8-16 x 3
(Superseded to 323-14)

$3.99

$

In Stock, Qty 17

0

23

Toro NN10420

Washer
(Superseded to 82-1630)

$

$

Not available

24

Toro NN10240

Manifold to Block Gasket
(Superseded to 82-0860)

$

$

Not available

25

Toro NN10183

AIR CLEANER SUPPORT

$

$

Not available

27

Toro NN10430

Nut
(Superseded to 82-1690)

$

$

Not available

33

Toro NN10300

Breather Hose Clamp
(Superseded to 57-9540)

$

$

Not available

34

Toro NN10309

Grommet
(Superseded to 71-6140)

$4.99

$

Usually ships in 3-6 days

0

35

Toro NN10212

Fuel Pump (includes Hose Clamp and Fuel Cap)
(Superseded to 57-9080)

$

$

Not available

36

Toro NN10403

Screw
(Superseded to 59-1050)

$5.99

$

Usually ships in 3-6 days

0

37

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

39

Toro NN10211

Cap
(Superseded to 59-0370)

$

$

Not available

40

Toro NN10298

Hose Connector
(Superseded to 82-1060)

$

$

Not available

41

Toro NN10302

Hose
(Superseded to 71-6100)

$10.99

$

Usually ships in 3-6 days

0

43

Toro NN10421

Lockwasher 3/8
(Superseded to 325-35)

$10.99

$

Usually ships in 3-6 days

0

44

Toro NN10303

Clamp
(Superseded to 82-1080)

$7.49

$

In Stock, only 4 left!

0

47

Toro NN10353

Air Cleaner Stud 520-HC Only
(Superseded to 82-1260)

$56.99

$

Usually ships in 3-6 days

0

48

Toro NN10302

Hose
(Superseded to 71-6100)

$10.99

$

Usually ships in 3-6 days

0

49

Toro NN10301

Clamp
(Superseded to 57-9550)

$

$

Not available

50

Toro NN10466

Filter-Fuel
(Superseded to 71-5960)

$24.99

$

In Stock, Qty 11

0
