Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) Blower Housing And Governor Parts Diagram

Zero-Turn Mower, Drive Unit Only

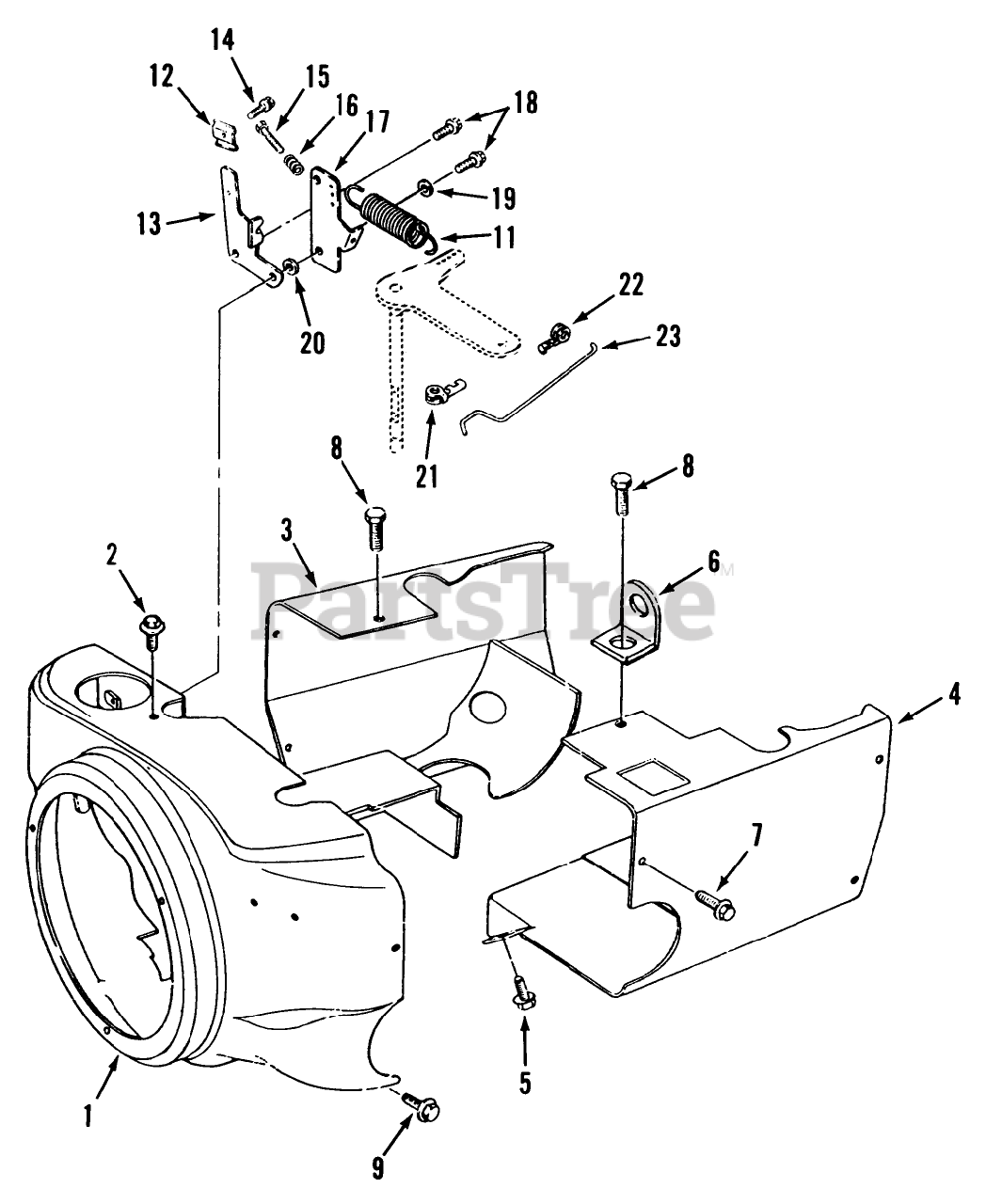

Blower Housing And Governor Parts Diagram

  • Title

1

Toro NN10167

DISCONTINUED

$

$

Not available

2

Toro NN10367

DISCONTINUED

$

$

Not available

3

Toro NN10164

DISCONTINUED
(Superseded to 92-0949)

$

$

Not available

4

Toro NN10169

See Supercession: 92-0921
(Superseded to 92-0921)

$

$

Not available

5

Toro NN10393

See Supercession: 59-0980
(Superseded to 59-0980)

$

$

Not available

6

Toro NN10296

See Supercession: 71-6080
(Superseded to 71-6080)

$

$

Not available

7

Toro NN10415

See Supercession: 59-1100
(Superseded to 59-1100)

$

$

Not available

8

Toro NN10417

See Supercession: 82-1600
(Superseded to 82-1600)

$

$

Not available

9

Toro NN10415

See Supercession: 59-1100
(Superseded to 59-1100)

$

$

Not available

11

Toro NN10217

DISCONTINUED
(Superseded to 57-9100)

$

$

Not available

12

Toro NN10440

See Supercession: 57-9190
(Superseded to 57-9190)

$

$

Not available

13

Toro NN10228

DISCONTINUED

$

$

Not available

14

Toro NN10395

See Supercession: 72-3900
(Superseded to 72-3900)

$

$

Not available

15

Toro NN10404

DISCONTINUED

$

$

Not available

16

Toro NN10219

See Supercession: 59-0430
(Superseded to 59-0430)

$

$

Not available

17

Toro NN10229

DISCONTINUED

$

$

Not available

18

Toro NN10397

See Supercession: 59-1010
(Superseded to 59-1010)

$

$

Not available

19

Toro NN10357

See Supercession: 59-0830
(Superseded to 59-0830)

$

$

Not available

20

Toro NN10218

See Supercession: 57-9120
(Superseded to 57-9120)

$

$

Not available

21

Toro NN10346

See Supercession: 57-9730
(Superseded to 57-9730)

$

$

Not available

22

Toro NN10342

See Supercession: 57-9700
(Superseded to 57-9700)

$

$

Not available

23

Toro NN10226

DISCONTINUED

$

$

Not available
