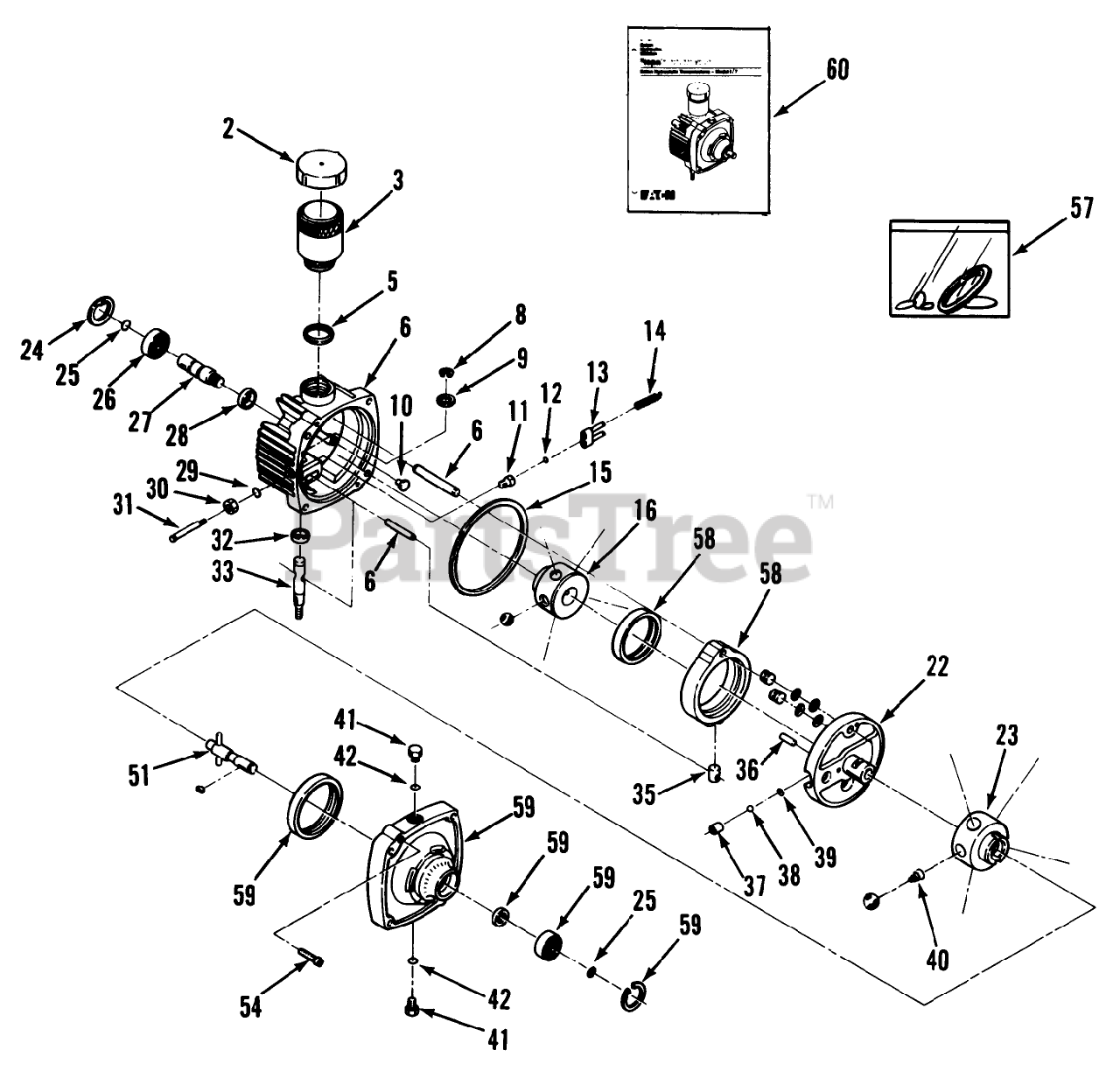

Z1-24OE03 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (1990) Hydrostatic Transmission Parts Diagram

Zero-Turn Mower, Drive Unit Only

Hydrostatic Transmission Parts Diagram

  • Title

2

Toro 112589

RESERVOIR COVER

$

$

Not available

3

Toro 112590

BODY-RESERVOIR

$80.99

$

Usually ships in 3-6 days

0

5

Toro 112591

SEAL-RING SQUARE CUT

$4.99

$

Usually ships in 3-6 days

0

6

Toro 112625

DISCONTINUED

$

$

Not available

8

Toro 112593

DISCONTINUED

$

$

Not available

9

Toro 112594

DISCONTINUED

$

$

Not available

10

Toro 112595

See Supercession: 56-2880
(Superseded to 56-2880)

$

$

Not available

11

Toro 112626

DISCONTINUED

$

$

Not available

12

Toro 112627

DISCONTINUED

$

$

Not available

13

Toro 112628

DISCONTINUED

$

$

Not available

14

Toro 112629

SPRING-VALVE

$

$

Not available

15

Toro 112596

DISCONTINUED

$

$

Not available

16

Toro 112597

SUB-ASS'Y PUMP ROTOR

$

$

Not available

22

Toro 112630

DISCONTINUED

$

$

Not available

23

Toro 112599

DISCONTINUED

$

$

Not available

24

Toro 112600

See Supercession: 56-3290
(Superseded to 56-3290)

$

$

Not available

25

Toro 112601

SNAP-RING

$

$

Not available

26

Toro 112602

BEARING-BALL (INPUT)

$69.99

$

Usually ships in 3-6 days

0

27

Toro 112603

SHAFT-INPUT

$

$

Not available

28

Toro 112604

See Supercession: 56-2820
(Superseded to 56-2820)

$46.99

$

In Stock, only 3 left!

0

29

Toro 112631

DISCONTINUED

$

$

Not available

30

Toro 112632

DISCONTINUED

$

$

Not available

31

Toro 113633

See Supercession: 113633-03
(Superseded to 113633-03)

$147.99

$

Usually ships in 3-6 days

0

32

Toro 112605

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

33

Toro 112606

DISCONTINUED

$

$

Not available

35

Toro 112607

DISCONTINUED

$

$

Not available

36

Toro 112608

See Supercession: 56-2980
(Superseded to 56-2980)

$

$

Not available

37

Toro 112609

See Supercession: 56-3020
(Superseded to 56-3020)

$

$

Not available

38

Toro 112610

DISCONTINUED
(Superseded to 56-3010)

$

$

Not available

39

Toro 112611

See Supercession: 56-3000
(Superseded to 56-3000)

$4.49

$

In Stock, only 2 left!

0

40

Toro 112612

DISCONTINUED

$

$

Not available

41

Toro 112613

See Supercession: 56-3250
(Superseded to 56-3250)

$

$

Not available

42

Toro 112614

See Supercession: 56-3260
(Superseded to 56-3260)

$

$

Not available

51

Toro 112615

DISCONTINUED

$

$

Not available

54

Toro 112616

See Supercession: 56-3100
(Superseded to 56-3100)

$

$

Not available

57

Toro 112618

KIT-OVERHAUL SEALING

$249.99

$

Usually ships in 3-6 days

0

58

Toro 112619

DISCONTINUED

$

$

Not available

59

Toro 112620

SUB-ASS'Y BODY

$1454.99

$

Usually ships in 3-6 days

0

60

Toro 740315

Hydrostatic Transmission Repair Manual

$

$

Currently unavailable
