Z1-24OE04 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 010000001 - 019999999) (1991) CARBURETOR COMPONENTS Parts Diagram
Zero-Turn Mower, Drive Unit Only

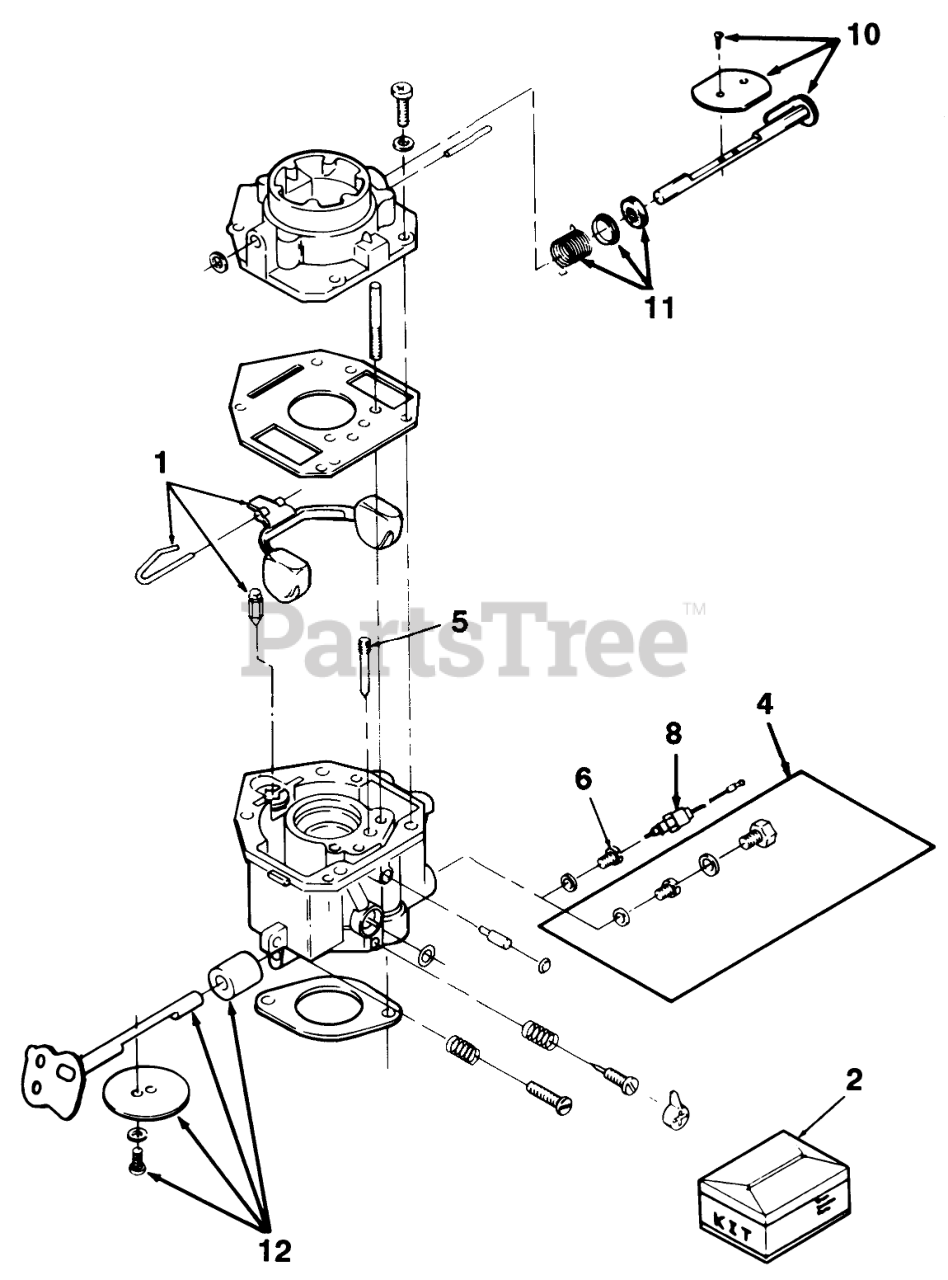

CARBURETOR COMPONENTS Parts Diagram
Toro 62-2800
Float Kit (Includes Float, Pin and Valve)
$145.99
$
Usually ships in 3-6 days
Toro 82-0780
Repair Kit (Includes Screw and Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle and Spring, Mounting Gaskets, Idle Limit Cap)
$412.99
$
Usually ships in 3-6 days
Toro 82-0740
JET-FIXED, HIGH ALTITUDE
$
$
Not available
Toro 82-0750
JET-IDLE
$76.99
$
Usually ships in 3-6 days
Toro 82-0790
JET-POWER
$
$
Not available
Toro 82-0800
Solenoid-Fuel Cut-Off (Includes Gasket)
$240.99
$
In Stock, only 1 left!
Toro 72-3860
Choke Shaft-Kit (Includes Choke Valve, Valve Set Screw & Air Filter)
$
$
Not available
Toro 72-3870
Choke Lever-Kit (Includes Choke Lever Ring, Choke Spring & Choke Collar)
$
$
Not available
Toro 82-0810
Throttle Shaft-Kit (Includes Valve Set Screw, Air Filter & Throttle Valve)
$
$
Not available
