Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) Blower Housing Assembly Parts Diagram

Zero-Turn Mower, Drive Unit Only

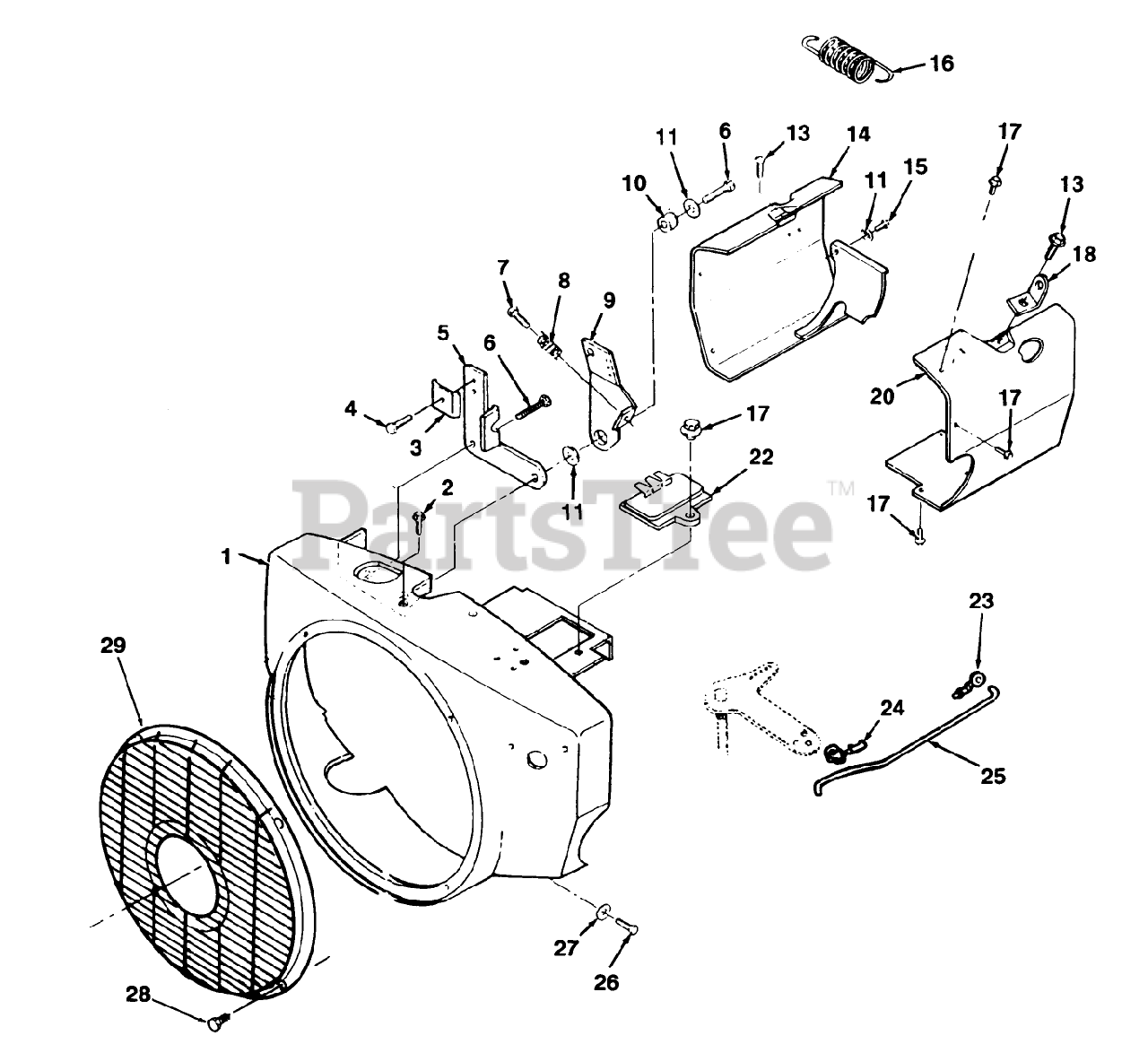

Blower Housing Assembly Parts Diagram

  • Title

1

Toro 82-0630

HOUSING - BLOWER

$902.99

$

Usually ships in 3-6 days

0

Toro 92-0948

HOUSING-BLOWER

Note: Not illustrated

$

$

Not available

2

Toro 59-1100

SCREW-HWH

$

$

Not available

3

Toro 57-9190

CLIP

$

$

Not available

4

Toro 72-3900

SCREW-TAPPING

$

$

Not available

5

Toro NN10898

See Supercession: 57-9150
(Superseded to 57-9150)

$

$

Not available

6

Toro 59-1010

SCREW-HWH

$

$

Not available

7

Toro 59-1030

SCREW-TAP

$

$

Not available

8

Toro 59-0430

SPRING

$

$

Not available

9

Toro 57-9140

ARM

$

$

Not available

10

Toro 57-9120

BUSHING

$

$

Not available

11

Toro 59-0830

WASHER-FLAT

$

$

Not available

13

Toro 82-1600

SCREW-HWH

$

$

Not available

14

Toro 82-0600

DISCONTINUED

$

$

Not available

Toro 92-0949

DISCONTINUED

Note: Not illustrated

$

$

Not available

15

Toro 59-0980

SCREW-HH

$

$

Not available

16

Toro 57-9100

DISCONTINUED

$

$

Not available

17

Toro 59-1080

SCREW-HWH

$

$

Not available

18

Toro 71-6080

BRACKET-LIFTING

$

$

Not available

20

Toro 82-0640

HOUSING - CYL AIR, RH

$106.99

$

Usually ships in 3-6 days

0

Toro 92-0950

DISCONTINUED

Note: Not illustrated

$

$

Not available

22

Toro 57-9430

See Supercession: 117-2742
(Superseded to 117-2742)

$288.99

$

In Stock, only 2 left!

0

23

Toro 57-9700

CLIP

$

$

Not available

24

Toro 57-9730

CLIP

$

$

Not available

25

Toro NN10928

DISCONTINUED

$

$

Not available

26

Toro NN10931

See Supercession: 82-1780
(Superseded to 82-1780)

$

$

Not available

27

Toro 59-0820

WASHER-FLAT

$

$

Not available

28

Toro 82-1590

SCREW-PAN HEAD

$

$

Not available

29

Toro 82-0620

GUARD-STATIONARY

$

$

Not available
