Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) Oil System Parts Diagram

Zero-Turn Mower, Drive Unit Only

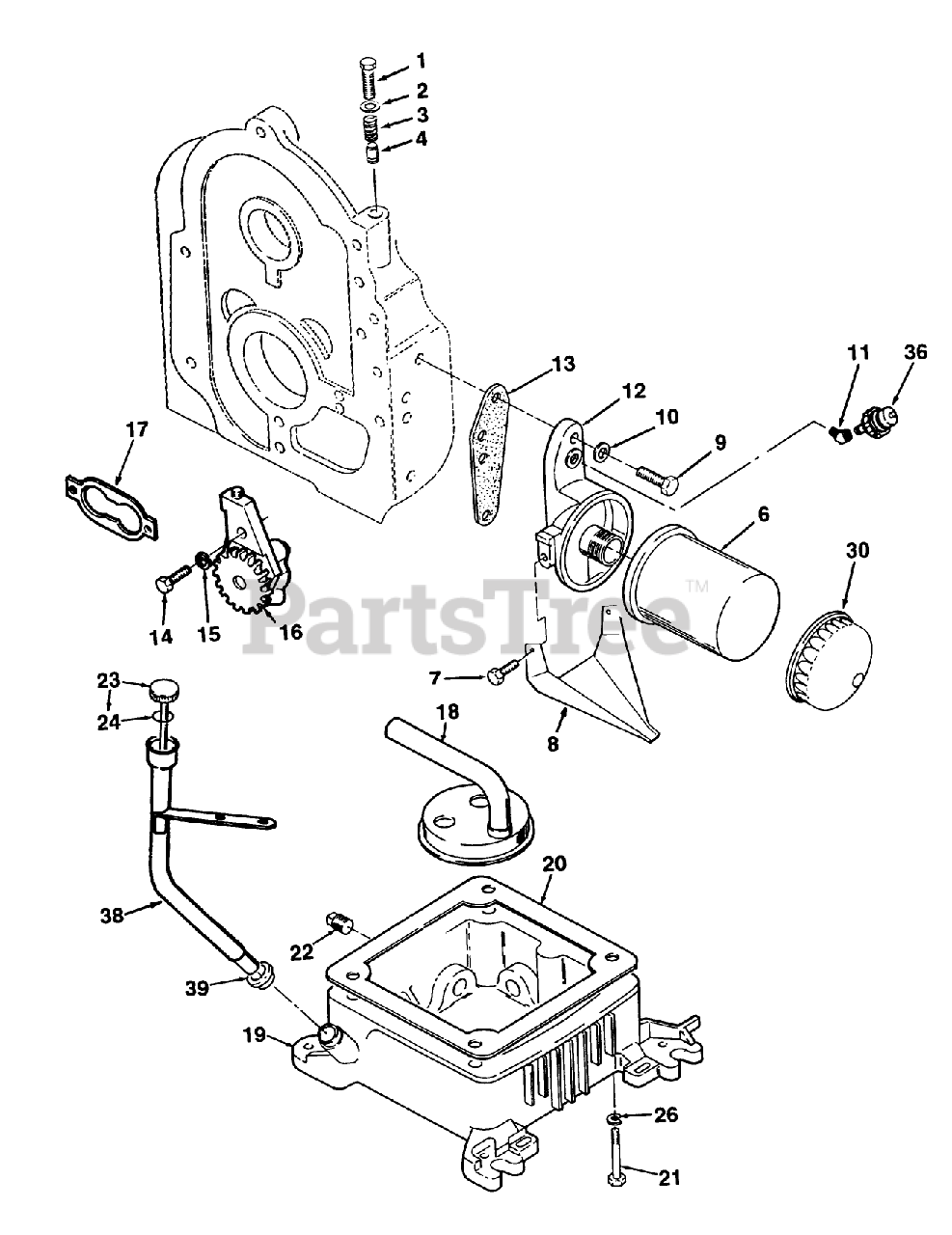

Oil System Parts Diagram

  • Title

1

Toro NN10384

See Supercession: 59-1160
(Superseded to 59-1160)

$

$

Not available

2

Toro NN10360

See Supercession: 57-9750
(Superseded to 57-9750)

$

$

Not available

Toro NN10361

See Supercession: 57-9760
(Superseded to 57-9760)

Note: Not illustrated

$

$

Not available

3

Toro NN10133

See Supercession: 59-0280
(Superseded to 59-0280)

$

$

Not available

Toro 57-8500

See Supercession: 59-0280
(Superseded to 59-0280)

Note: Not illustrated

$

$

Not available

4

Toro NN10135

See Supercession: 57-8470
(Superseded to 57-8470)

$

$

Not available

Toro 57-8470

PLUNGER

Note: Not illustrated

$

$

Not available

6

Toro NN10143

See Supercession: 137-5012
(Superseded to 137-5012)

$42.99

$

In Stock, only 2 left!

0

Toro 79-6470

See Supercession: 82-0520
(Superseded to 82-0520)

Note: Not illustrated

$

$

Not available

7

Toro 82-1510

SCREW-HH

$

$

Not available

8

Toro 82-0510

DRAIN-OIL FILTER

$

$

Not available

9

Toro NN10373

DISCONTINUED

$

$

Not available

10

Toro 57-9750

WASHER

$

$

Not available

11

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

12

Toro 82-0500

DISCONTINUED

$

$

Not available

13

Toro 82-0520

GASKET-OIL FILTER ADAPT

$

$

Not available

14

Toro 82-1370

DISCONTINUED

$

$

Not available

15

Toro 82-1340

WASHER-FLAT

$

$

Not available

16

Toro 57-8410

DISCONTINUED

$

$

Not available

17

Toro NN10134

DISCONTINUED
(Superseded to 57-8460)

$

$

Not available

Toro 57-8460

DISCONTINUED

Note: Not illustrated

$

$

Not available

18

Toro 82-0490

DISCONTINUED

$

$

Not available

Toro 92-0944

DISCONTINUED

Note: Not illustrated

$

$

Not available

19

Toro 82-0030

DISCONTINUED

$

$

Not available

Toro 92-0942

BASE-OIL

Note: Not illustrated

$

$

Not available

20

Toro 57-8090

GASKET

$43.99

$

Usually ships in 3-6 days

0

21

Toro 82-1440

See Supercession: 323-25
(Superseded to 323-25)

$15.99

$

Usually ships in 3-6 days

0

22

Toro 92-0943

PLUG

$

$

Not available

23

Toro 82-0590

See Supercession: 114-4138
(Superseded to 114-4138)

$

$

Not available

24

Toro 57-9610

SEAL 0-RING

$17.99

$

Usually ships in 3-6 days

0

26

Toro 82-1310

WASHER-FLAT

$

$

Not available

30

Toro NN10775

DISCONTINUED

$

$

Not available

36

Toro NN10520

DISCONTINUED

$

$

Not available

38

Toro 82-0580

See Supercession: 92-0947
(Superseded to 92-0947)

$

$

Not available

Toro 92-0947

TUBE-OIL FILTER

Note: Not illustrated

$

$

Not available

39

Toro 71-6170

SEAL-OIL FILL TUBE

$36.99

$

In Stock, only 2 left!

0
