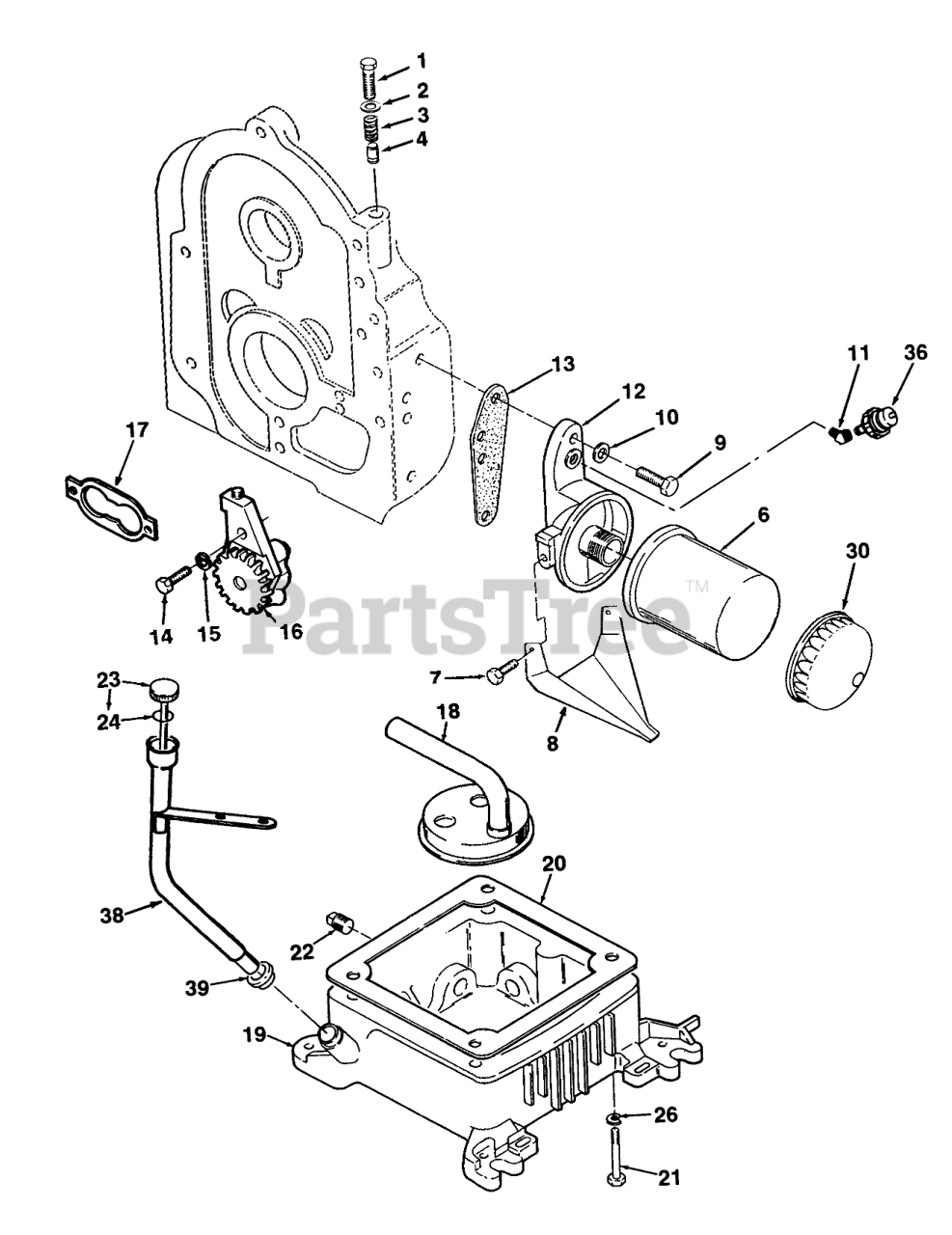

Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) OIL SYSTEM Parts Diagram

Zero-Turn Mower, Drive Unit Only

OIL SYSTEM Parts Diagram

  • Title

1

Toro NN10384

Bolt
(Superseded to 59-1160)

$

$

Not available

2

Toro NN10360

Washer
(Superseded to 57-9750)

$

$

Not available

Toro NN10361

Washer
(Superseded to 57-9760)

Note: Not illustrated

$

$

Not available

3

Toro NN10133

Spring
(Superseded to 59-0280)

$

$

Not available

Toro 57-8500

Spring, Bypass
(Superseded to 59-0280)

Note: Not illustrated

$

$

Not available

4

Toro NN10135

Piunger
(Superseded to 57-8470)

$

$

Not available

Toro 57-8470

PLUNGER

Note: Not illustrated

$

$

Not available

6

Toro NN10143

OIL FILTER
(Superseded to 137-5012)

$18.99

$

In Stock, Qty 5

0

Toro 79-6470

Gasket
(Superseded to 82-0520)

Note: Not illustrated

$

$

Not available

7

Toro 82-1510

SCREW-HH

$

$

Not available

8

Toro 82-0510

DRAIN-OIL FILTER

$

$

Not available

9

Toro NN10373

HHCS 5/16-18 X 1

$

$

Not available

10

Toro 57-9750

WASHER

$

$

Not available

11

Toro 59-0640

ELBOW-45 DEG

$

$

Not available

12

Toro 82-0500

ADAPTER-OIL FILTER

$

$

Not available

13

Toro 82-0520

GASKET-OIL FILTER ADAPT

$

$

Not available

14

Toro 82-1370

SCREW - CAP HEX HEAD

$

$

Not available

15

Toro 82-1340

WASHER-FLAT

$4.99

$

Usually ships in 3-6 days

0

16

Toro 57-8410

BOLT

$

$

Not available

17

Toro NN10134

Oil Pump Gasket Kit
(Superseded to 57-8460)

$

$

Not available

Toro 57-8460

GASKET KIT

Note: Not illustrated

$

$

Not available

18

Toro 82-0490

CUP-INTAKE, OIL PUMP

$

$

Not available

Toro 92-0944

CUP-OIL PUMP INTAKE

Note: Not illustrated

$

$

Not available

19

Toro 82-0030

Base-Oil (Incl. Plugs & Gasket) Spec. D Engine

$

$

Not available

Toro 92-0942

Base-Oil (Incl. Plugs & Gasket) Spec. E Engine

Note: Not illustrated

$2147.99

$

Usually ships in 3-6 days

0

20

Toro 57-8090

GASKET

$35.99

$

Usually ships in 3-6 days

0

21

Toro 82-1440

Screw
(Superseded to 323-25)

$14.99

$

Usually ships in 3-6 days

0

22

Toro 92-0943

PLUG

$

$

Not available

23

Toro 82-0590

Oil Fill Cap & Indicator (Incl. O-Ring)
(Superseded to 114-4138)

$78.99

$

Usually ships in 3-6 days

0

24

Toro 57-9610

SEAL 0-RING

$6.99

$

In Stock, only 1 left!

0

26

Toro 82-1310

WASHER-FLAT

$

$

Not available

30

Toro NN10775

WRENCH-OIL FILTER

$

$

Not available

36

Toro NN10520

OIL-PRESSURE SWITCH

$

$

Not available

38

Toro 82-0580

Oil Fill Tube
(Superseded to 92-0947)

$430.99

$

Usually ships in 3-6 days

0

Toro 92-0947

TUBE-OIL FILTER

Note: Not illustrated

$430.99

$

Usually ships in 3-6 days

0

39

Toro 71-6170

SEAL-OIL FILL TUBE

$13.99

$

In Stock, only 1 left!

0
