Z1-24OE05 (724-Z) - Toro Zero-Turn Mower, Drive Unit Only (SN: 020000001 - 029999999) (1992) STARTER Parts Diagram

Zero-Turn Mower, Drive Unit Only

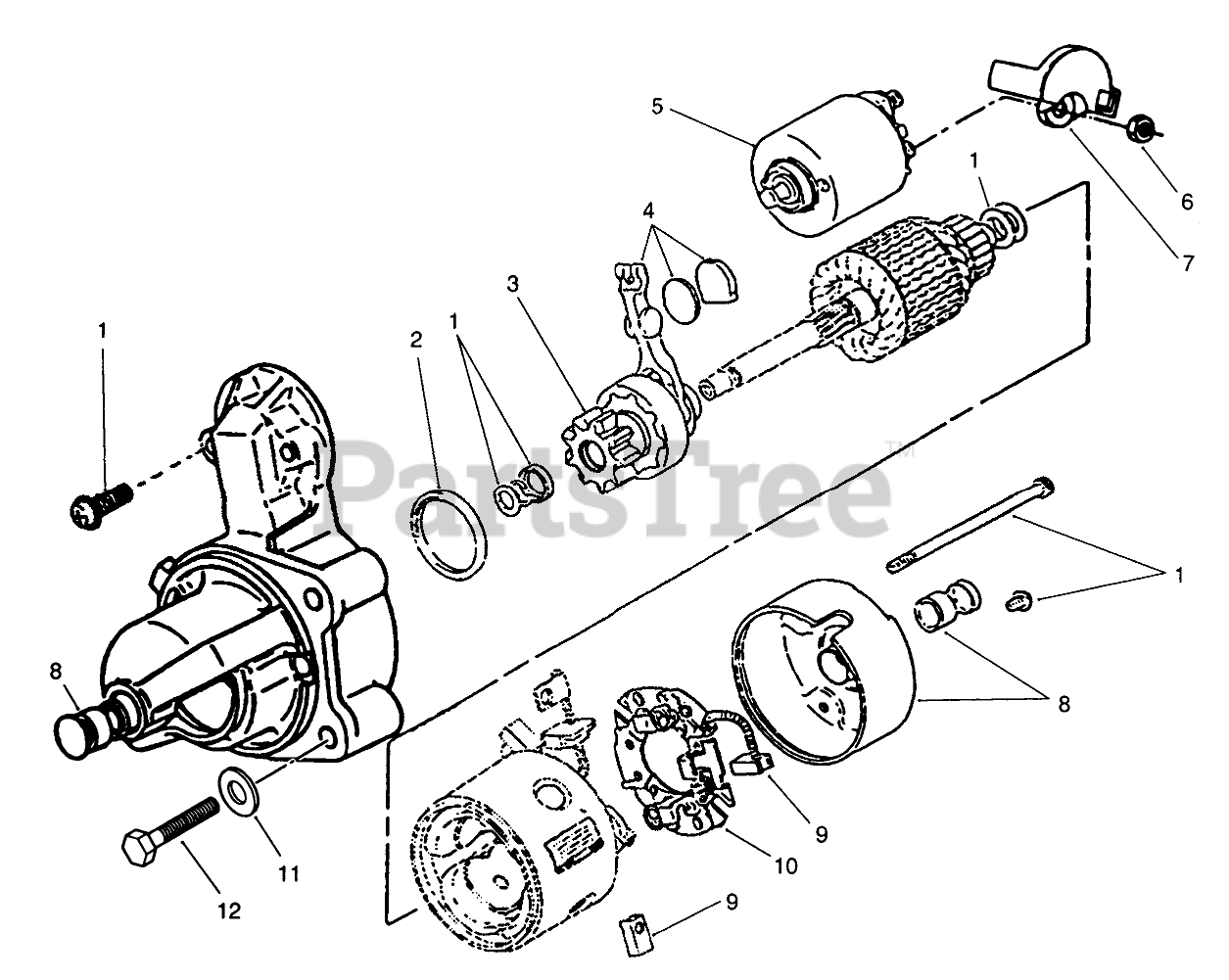

STARTER Parts Diagram

  • Title

1

Toro 62-2760

Kit-Hardware, Starter #191-1808-04 (Incl. Solenoid Screws, Brush Holder Screws, Thru Bolts, Armature, Shims, Pinion Stop Collar, & Pinion Retaining Rings)

$

$

Not available

Toro NN10885

Kit-Hardware, Starter #191-1949 (Incl. Solenoid Screws, Brush Holder Screws, Thru Bolts, Shims, Pinion Stop Collar, & Pinion Retaining Rings)
(Superseded to 62-2760)

Note: Not illustrated

$

$

Not available

2

Toro 72-3950

Dust Seal
(Superseded to NN10886)

$

$

Not available

Toro NN10886

DUST-SEAL KIT

Note: Not illustrated

$

$

Not available

3

Toro 72-3940

CLUTCH STARTER ASSEMBLY

$

$

Not available

Toro NN10884

Kit-Clutch, Starter
(Superseded to 72-3940)

Note: Not illustrated

$

$

Not available

4

Toro 62-2770

LEVER

$

$

Not available

5

Toro 72-3930

STARTER SOLENOID KIT

$

$

Not available

Toro NN10887

Solenoid-Starte
(Superseded to 72-3930)

Note: Not illustrated

$

$

Not available

6

Toro 82-1730

Nut-Hex.
(Superseded to 92-5935)

$

$

Not available

7

Toro NN10930

Cap-Starter Solenoid
(Superseded to 82-1720)

$

$

Not available

8

Toro NN10262

Kit-Bushing, Starter #191-1808-04 (Incl. Rear Cap, Front & Rear Bushings)
(Superseded to 62-2730)

$

$

Not available

Toro 62-2730

Kit-Bushing, Starter #191-1949-04 (Incl. Rear Cap, Front & Rear Bushings)

Note: Not illustrated

$

$

Not available

9

Toro 62-2740

BRUSH KIT

$

$

Not available

Toro NN10882

Kit-Brush, Starter #191-1949-04(Incl. Item #10)
(Superseded to 62-2740)

Note: Not illustrated

$

$

Not available

10

Toro 62-2750

Brush Mounting Kit
(Superseded to 62-2740)

$

$

Not available

11

Toro NN10363

Washer
(Superseded to 57-9770)

$

$

Not available

12

Toro 82-1420

Screw-Hex Hd
(Superseded to 322-22)

$0.99

$

In Stock, Qty 20+

0

Toro 71-6040

STARTER
(Superseded to 112-7023)

Note: Not illustrated

$419.99

$

Usually ships in 3-6 days

0

13

Toro NN10929

KIT-MTG BRKT

$455.99

$

Usually ships in 3-6 days

0

14

Toro 57-9770

WASHER

$

$

Not available
