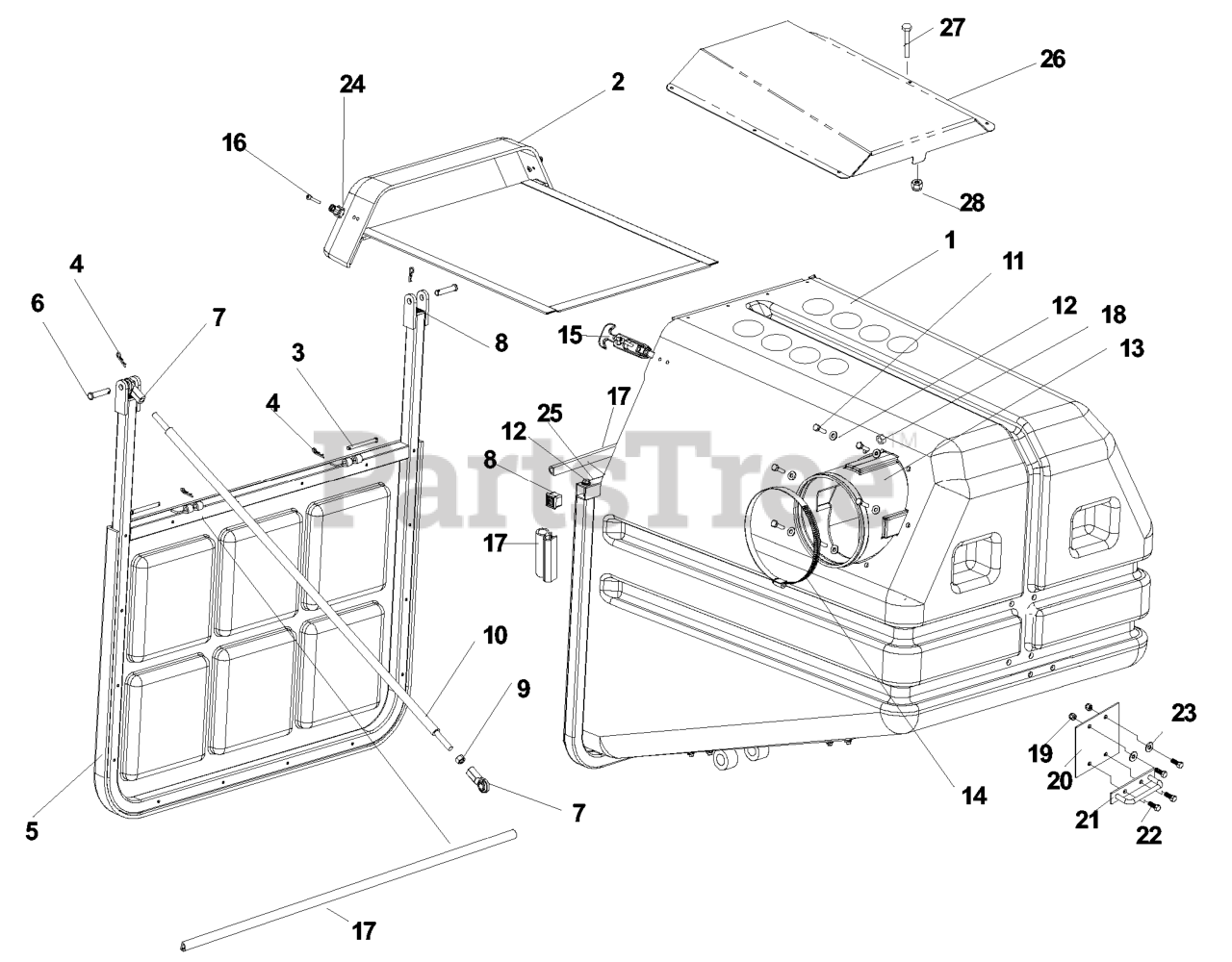

Z1-9 - Husqvarna Z Grass Catcher (2003-10) Container Assembly Parts Diagram

Z Grass Catcher

Container Assembly Parts Diagram

  • Title

1

Husqvarna 539108970

CONTAINER ASM.

$

$

Currently unavailable

2

Husqvarna 540200873

EXHAUST ASM.

$

$

Currently unavailable

3

Husqvarna 540200691

CLEVIS PIN

$

$

Not available

4

Husqvarna 540099082

PIN, HAIR COTTER #13 5/64 X 1

$

$

Not available

5

Husqvarna 540200872

DOOR ASM.

$

$

Currently unavailable

6

Husqvarna 540200692

PIN
(Superseded to 539200692)

$

$

Not available

7

Husqvarna 540030425

ROD END
(Superseded to 539030425)

$43.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540200690

FINISHING PLUG

$

$

Not available

9

Husqvarna 540000224

HEX NUT 3/8-24
(Superseded to 539990155)

$3.49

$

In Stock, Qty 15

0

10

Husqvarna 540200520

PAINTED ARM BLACK
(Superseded to 539200520)

$

$

Not available

11

Husqvarna 540099008

BOLT, 1/4-28 X 1

$

$

Currently unavailable

12

Husqvarna 540000405

WASHER, 1/4

$

$

Currently unavailable

13

Husqvarna 540200408

INLET

$

$

Currently unavailable

14

Husqvarna 540097076

HOSE CLAMP
(Superseded to 539097076)

$

$

Not available

15

Husqvarna 540200478

LATCH

$39.99

$

Usually ships in 3-10 days

0

16

Husqvarna 540200641

PANHEAD SCREW

$

$

Not available

17

Husqvarna 540108134

SVC KIT, DOOR SEAL
(Superseded to 539108134)

Note: (CONTAINS 3 SEALS)

$

$

Not available

18

Husqvarna 540099072

NUT, 1/4-20, NYLOC

$

$

Currently unavailable

19

Husqvarna 540099065

NUT 3/8 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 540200688

BACK PLATE

$

$

Currently unavailable

21

Husqvarna 540200695

CONTAINER LATCH WELDMENT BLACK
(Superseded to 539200695)

$

$

Not available

22

Husqvarna 540000168

BOLT, 3/8-16 X 1

$

$

Currently unavailable

23

Husqvarna 540000417

WASHER, 3/8

$

$

Currently unavailable

24

Husqvarna 540200423

LATCH BASE

$

$

Currently unavailable

25

Husqvarna 540000134

BOLT 1/4-20 X 2"
(Superseded to 539101313)

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539109399

HOOD

$

$

Currently unavailable

27

Husqvarna 539108535

SCR #10-24 X 3/4

$3.49

$

In Stock, Qty 5

0

28

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

Husqvarna 540002004

NUT, #10-24, NYLOC

Note: (NOT SHOWN)

$

$

Currently unavailable

Husqvarna 540000403

FLAT WASHER #10

Note: (NOT SHOWN)

$

$

Not available
