Z1-9 - Husqvarna Z Grass Catcher (2003-10) Frame Assembly Parts Diagram

Z Grass Catcher

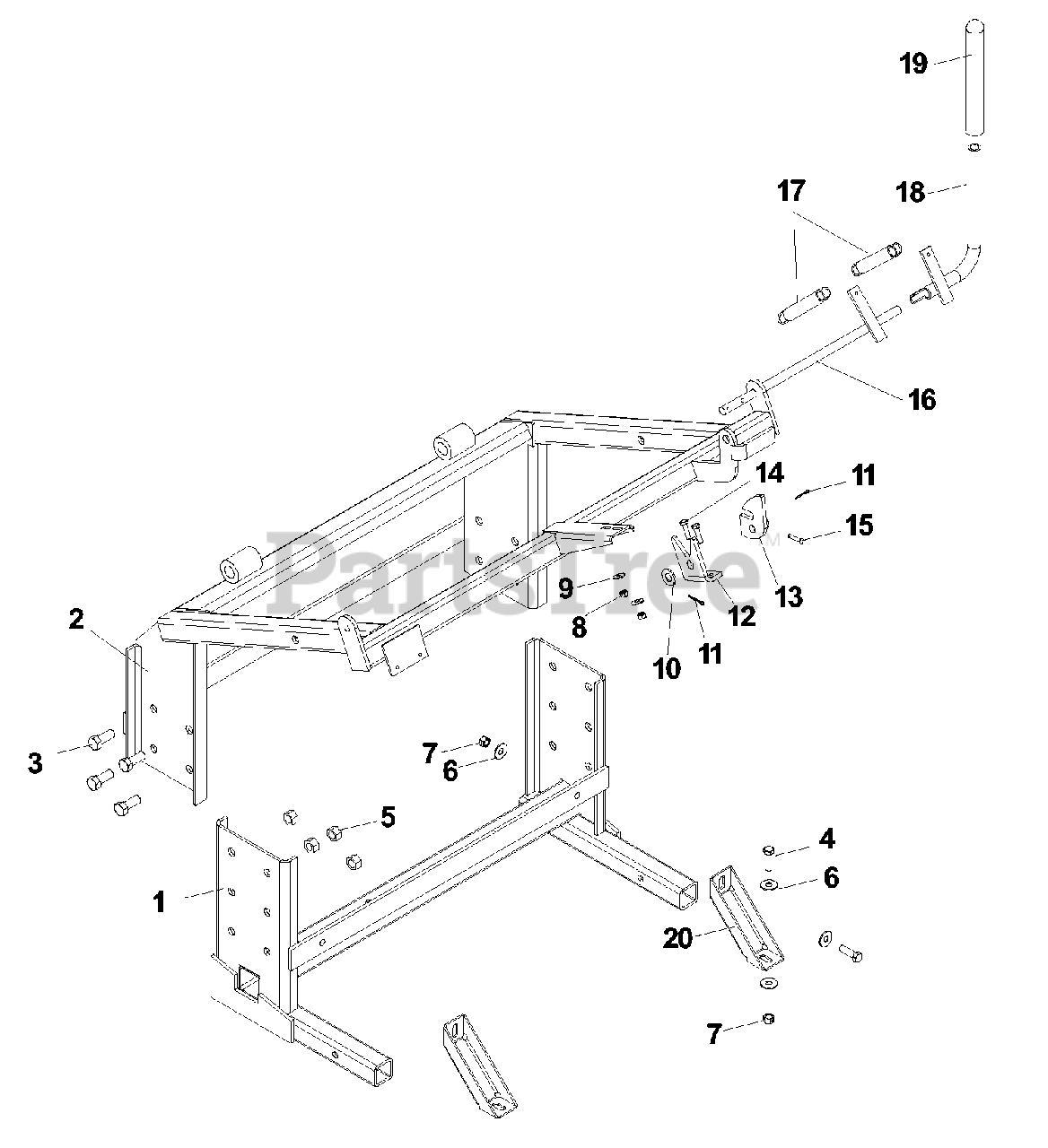

Frame Assembly Parts Diagram

  • Title

1

Husqvarna 540062072

LOWER FRAME

$

$

Currently unavailable

2

Husqvarna 540200510

UPPER FRAME

$

$

Currently unavailable

3

Husqvarna 540099069

BOLT, 1/2-13 X 1 1/4
(Superseded to 539108369)

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540099020

BOLT, 3/8-16 X 1 1/4
(Superseded to 539976941)

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 540093082

NUT, 1/2-13, NYLOC
(Superseded to 539101331)

$1.49

$

Usually ships in 3-10 days

0

6

Husqvarna 540000415

WASHER, 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 540099065

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 540099072

NUT, 1/4-20, NYLOC

$

$

Currently unavailable

9

Husqvarna 540000405

WASHER, 1/4

$

$

Currently unavailable

10

Husqvarna 540000425

WASHER, 1/2

$

$

Not available

11

Husqvarna 540003585

PIN, COTTER, 3/32 X 3/4

$

$

Currently unavailable

12

Husqvarna 540200423

LATCH BASE

$

$

Currently unavailable

13

Husqvarna 540200708

LATCH CATCH
(Superseded to 539200708)

$103.99

$

Usually ships in 3-10 days

0

14

Husqvarna 540099008

BOLT, 1/4-20 X 1

$

$

Currently unavailable

15

Husqvarna 540000382

PIN, CLEVIS, 3/16 X 1

$

$

Currently unavailable

16

Husqvarna 540200710

LATCH ROD

$

$

Currently unavailable

17

Husqvarna 540010195

SPRING
(Superseded to 539010195)

$47.99

$

In Stock, Qty 8

0

18

Husqvarna 540200712

LATCH HANDLE
(Superseded to 539200712)

$169.99

$

Usually ships in 3-10 days

0

19

Husqvarna 540061481

HANDLE GRIP
(Superseded to 539119974)

$8.99

$

Usually ships in 3-10 days

0

20

Husqvarna 540061532

HITCH BRACKET

$

$

Not available
