Z2-7 - Husqvarna Z Grass Catcher (2003-04) Kohler Vacuum Assembly 6 hp 540030166 / Briggs & Stratton Vacuum Assembly 5.5 hp 540030167 Parts Diagram

Z Grass Catcher

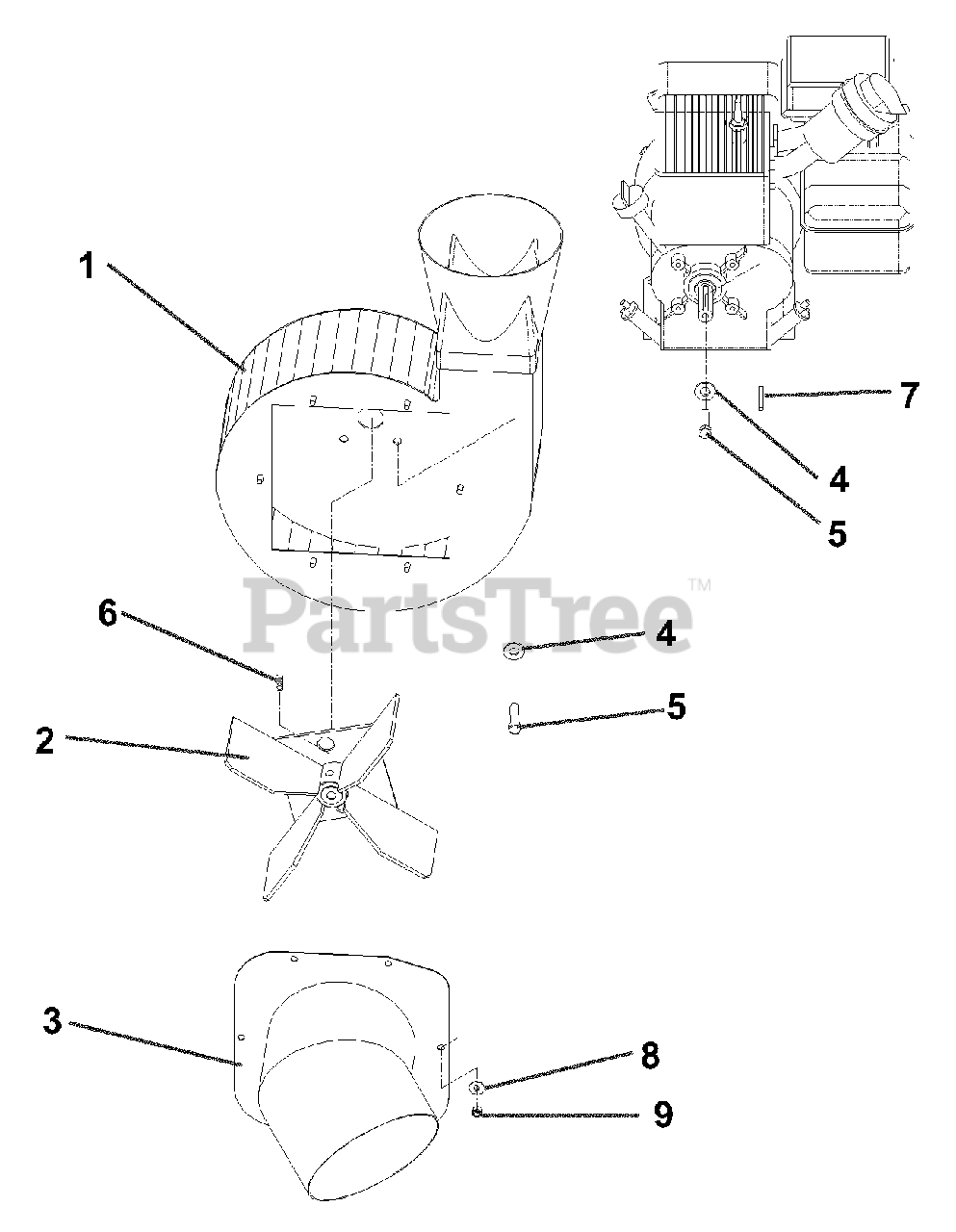

Kohler Vacuum Assembly 6 hp 540030166 / Briggs & Stratton Vacuum Assembly 5.5 hp 540030167 Parts Diagram

  • Title

1

Husqvarna 540094004

Blower Housing

$190.99

$

Usually ships in 3-10 days

0

2

Husqvarna 540107832

Impeller
(Superseded to 539107832)

$

$

Not available

3

Husqvarna 540092705

Inlet, Blower Housing

$63.99

$

Usually ships in 3-10 days

0

4

Husqvarna 540099001

Washer, Spring, 5/16"
(Superseded to 539109600)

$

$

Not available

5

Husqvarna 540099012

Bolt, Hex, 5/16"-24 x 3/4"
(Superseded to 539990233)

$0.99

$

Usually ships in 3-10 days

0

6

Husqvarna 540099027

Screw, Set, 3/8"-24 x 3/8"
(Superseded to 539108557)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 540099002

Key, Square, 3/16" x 3/16" x 1-3/4"1
(Superseded to 539100471)

$1.99

$

Usually ships in 3-10 days

0

Husqvarna 540094082

Decal, Hot Surfaces

Note: Not shown

$

$

Currently unavailable

Husqvarna 540200027

Decal, Caution List
(Superseded to 539008318)

Note: Not shown

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 540097081

Screw, muffler deflector (Kohler only)

Note: Not shown

$

$

Currently unavailable

Husqvarna 540097055

Deflector, exhust (Kohler only)

Note: Not shown

$

$

Currently unavailable

Husqvarna 540094251

Hardware Kit,including:

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099015

Bolt, Hex, 5/16"-18 x 1-1/2"

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099079

Nut, Hex, Nylon Lock, 5/16"-18
(Superseded to 539990717)

Note: Not shown

$1.49

$

Usually ships in 3-10 days

0

8

Husqvarna 540099072

Nut, Hex, Nylon Lock, 1/4"-20

$

$

Currently unavailable

9

Husqvarna 540099074

Washer, Flat, 1/4"

$

$

Currently unavailable

Husqvarna 540030166

6 hp Kohler Vacuum Assembly

$

$

Not available

Husqvarna 540030167

5.5 hp Briggs & Stratton Vacuum Assembly

$478.99

$

Usually ships in 3-10 days

0
