Z2-7 - Husqvarna Z Grass Catcher (2003-04) Kohler Vacuum Assembly 6 hp 540030166 / Briggs & Stratton Vacuum Assembly 5.5 hp 540030167 Parts Diagram

Z Grass Catcher

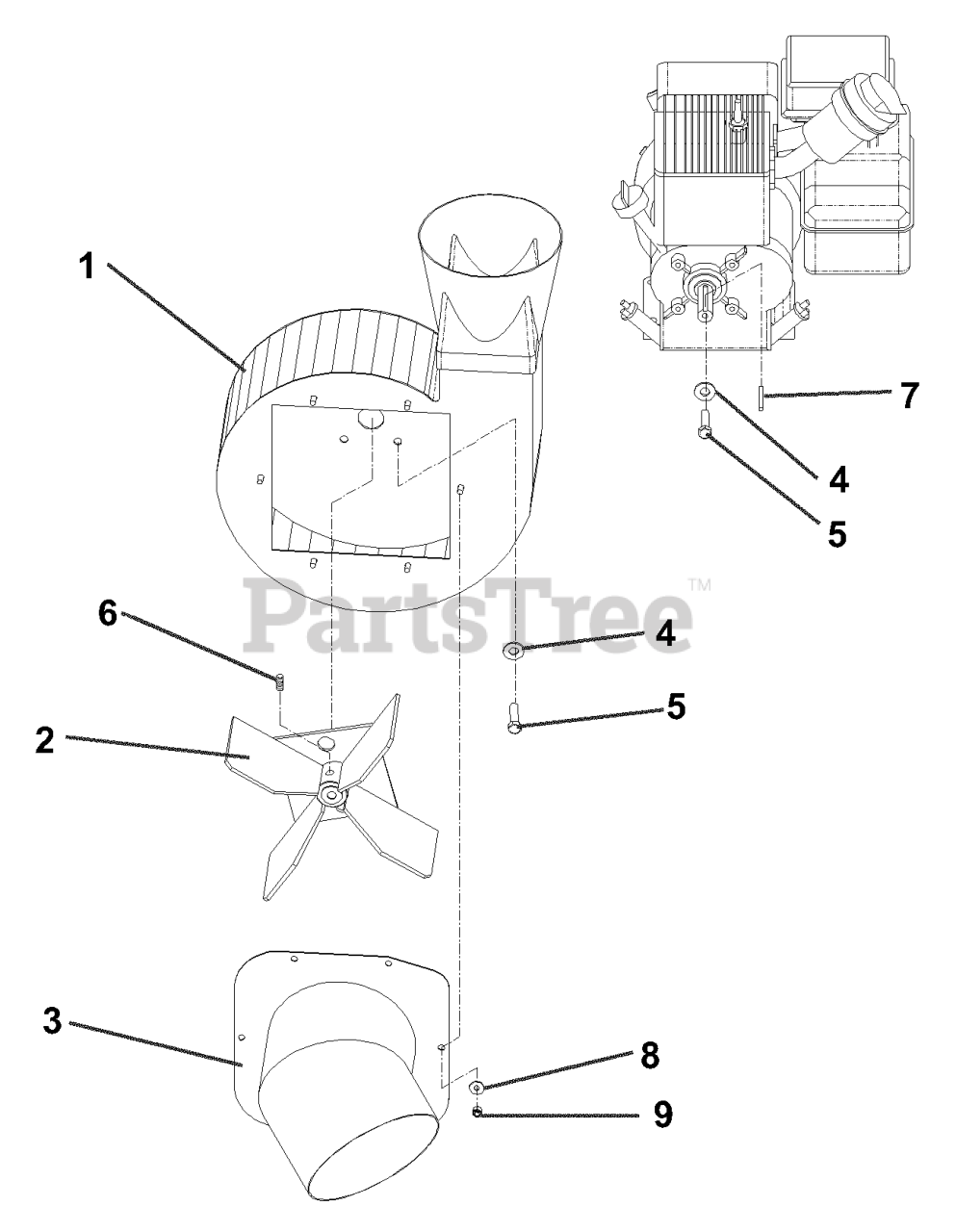

Kohler Vacuum Assembly 6 hp 540030166 / Briggs & Stratton Vacuum Assembly 5.5 hp 540030167 Parts Diagram

  • Title

1

Husqvarna 540094004

BLOWER HOUSING

$

$

Not available

2

Husqvarna 540107832

IMPELLAR
(Superseded to 539107832)

$

$

Not available

3

Husqvarna 540092705

BLOWER HOUSING INLET

$

$

Not available

4

Husqvarna 540099001

R/B 109600 WASH SPRING, 5/16
(Superseded to 596565001)

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 540099012

R/B 990233 BLT HEX 5/16-24X3/4
(Superseded to 539990233)

$

$

Not available

6

Husqvarna 540099027

SCREW SET, 3/8-24 X 3/8
(Superseded to 539108557)

$

$

Not available

7

Husqvarna 540099002

KEY SQUARE 3/16 X 3/16 X 1 3/4
(Superseded to 539100471)

$

$

Not available

Husqvarna 540094082

Decal, Hot Surfaces

Note: Not shown

$

$

Currently unavailable

Husqvarna 540200027

DECAL, CAUTION LIST
(Superseded to 539008318)

Note: Not shown

$

$

Not available

Husqvarna 540097081

Screw, muffler deflector (Kohler only)

Note: Not shown

$

$

Currently unavailable

Husqvarna 540097055

Deflector, exhust (Kohler only)

Note: Not shown

$

$

Currently unavailable

Husqvarna 540094251

Hardware Kit,including:

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099015

Bolt, Hex, 5/16"-18 x 1-1/2"

Note: Not shown

$

$

Currently unavailable

Husqvarna 540099079

HEX NUT - NYLON LOCK 5/16-18
(Superseded to 539990717)

Note: Not shown

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 540099072

Nut, Hex, Nylon Lock, 1/4"-20

$

$

Currently unavailable

9

Husqvarna 540099074

Washer, Flat, 1/4"

$

$

Currently unavailable

Husqvarna 540030166

6HP KOH POWER ASSIST ENGINE

$

$

Not available

Husqvarna 540030167

5.5 hp Briggs & Stratton Vacuum Assembly

$

$

Not available
