Z2-7 - Husqvarna Z Grass Catcher (2003-04) Spindle Drive Fan Assembly 540200803 Parts Diagram

Z Grass Catcher

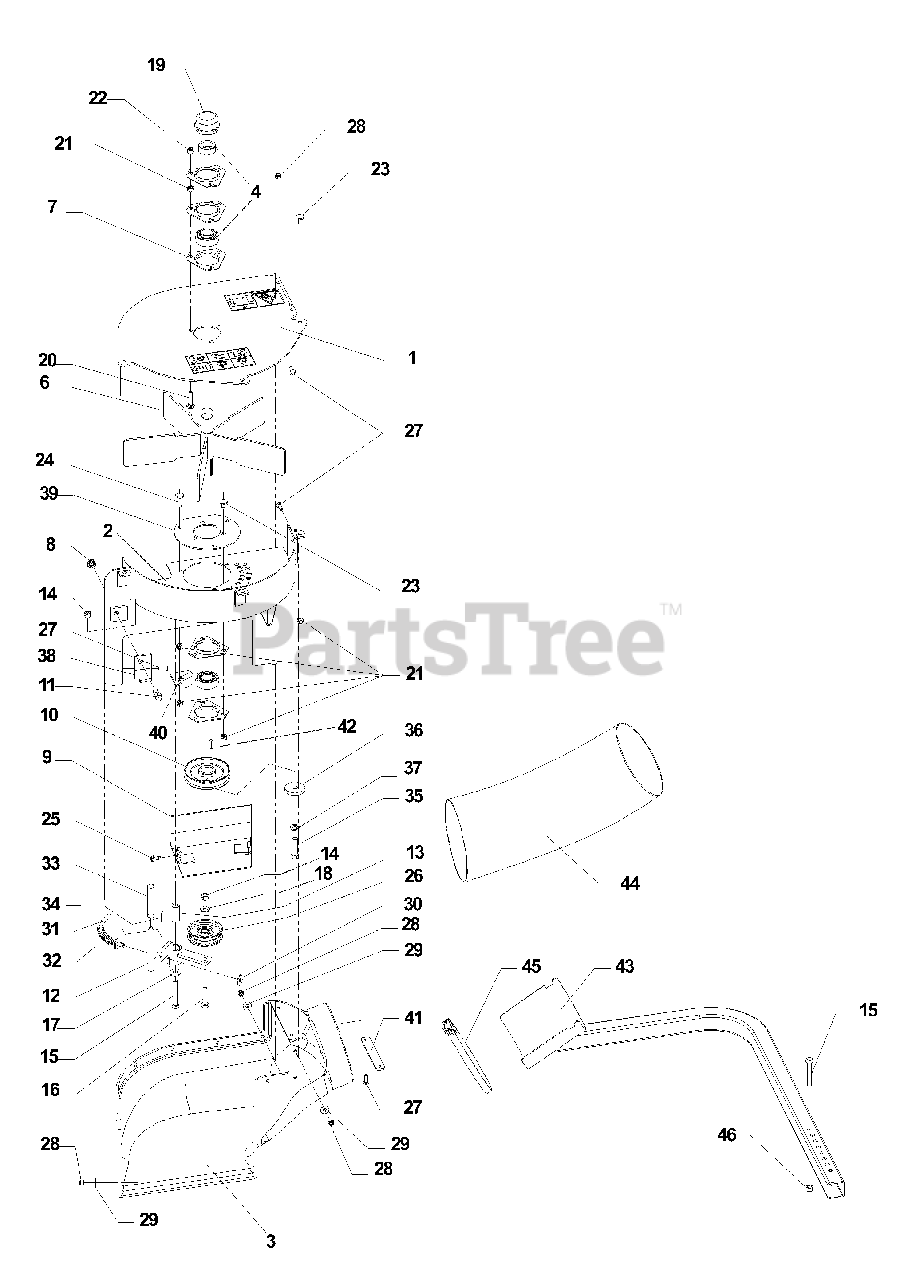

Spindle Drive Fan Assembly 540200803 Parts Diagram

  • Title

1

Husqvarna 539106752

FAN COVER W/DECALS
(Superseded to 539111331)

$

$

Not available

2

Husqvarna 539106693

UPPER HOUSING

$141.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106706

LOWER HOUSING
(Superseded to 539109900)

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106786

BEARING WITH COLLAR

$54.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539106707

FAN WLDMT.
(Superseded to 539111332)

$

$

Not available

7

Husqvarna 539102691

FLANGETTE

$

$

Not available

8

Husqvarna 539990613

NUT, 3/8-16, FLANGE

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106711

SHEAVE FLOOR

$

$

Not available

10

Husqvarna 539106713

SHEAVE, 4"

$48.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990563

BOLT, 3/8-16 X 1

$1.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539106715

IDLER ARM

$42.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990546

NUT, 3/8-16, CTR. LOCK

$

$

Not available

15

Husqvarna 539990629

BOLT, 3/8-16 X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990655

BOLT, 3/8-16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539100472

BOLT, 5/16-18 X 1 1/4, CARRIAGE

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990184

NUT, 5/16-18, CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990799

BOLT, 5/16-18 X 5/8, CARRIAGE
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990208

BOLT, 5/16-18 X 1

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990362

SCREW, 1/4-20 X 5/8, SELF TAP

$4.99

$

In Stock, Qty 12

0

26

Husqvarna 539106721

IDLER

$31.99

$

In Stock, only 3 left!

0

27

Husqvarna 539990074

BOLT, 1/4-20 X 3/4, CARRIAGE
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

30

Husqvarna 539990188

WASHER, 5/16
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539106801

SPRING ROD

$121.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539106720

SPRING

$27.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101050

VINYL GRIP

$3.99

$

In Stock, Qty 5

0

34

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539100141

BOLT, 7/16-20 X 1 1/2

$

$

Not available

36

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

37

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

38

Husqvarna 539106810

CLAMP

$

$

Not available

39

Husqvarna 539106809

BEARING PLATE

$15.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539106811

BELT GUIDE

$6.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539106812

BACKING

$6.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539102067

KEY 1/4 X 3/4 SQ.

$5.99

$

In Stock, only 4 left!

0

43

Husqvarna 539106751

SUPPORT

$80.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539106748

HOSE

$461.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539097076

HOSE CLAMP

$8.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 540200803

Spindle Drive Fan Assembly
(Superseded to 539108972)

$455.99

$

Usually ships in 3-10 days

0
