Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower 42" Deck Assembly Parts Diagram

42" Zero-Turn Mower

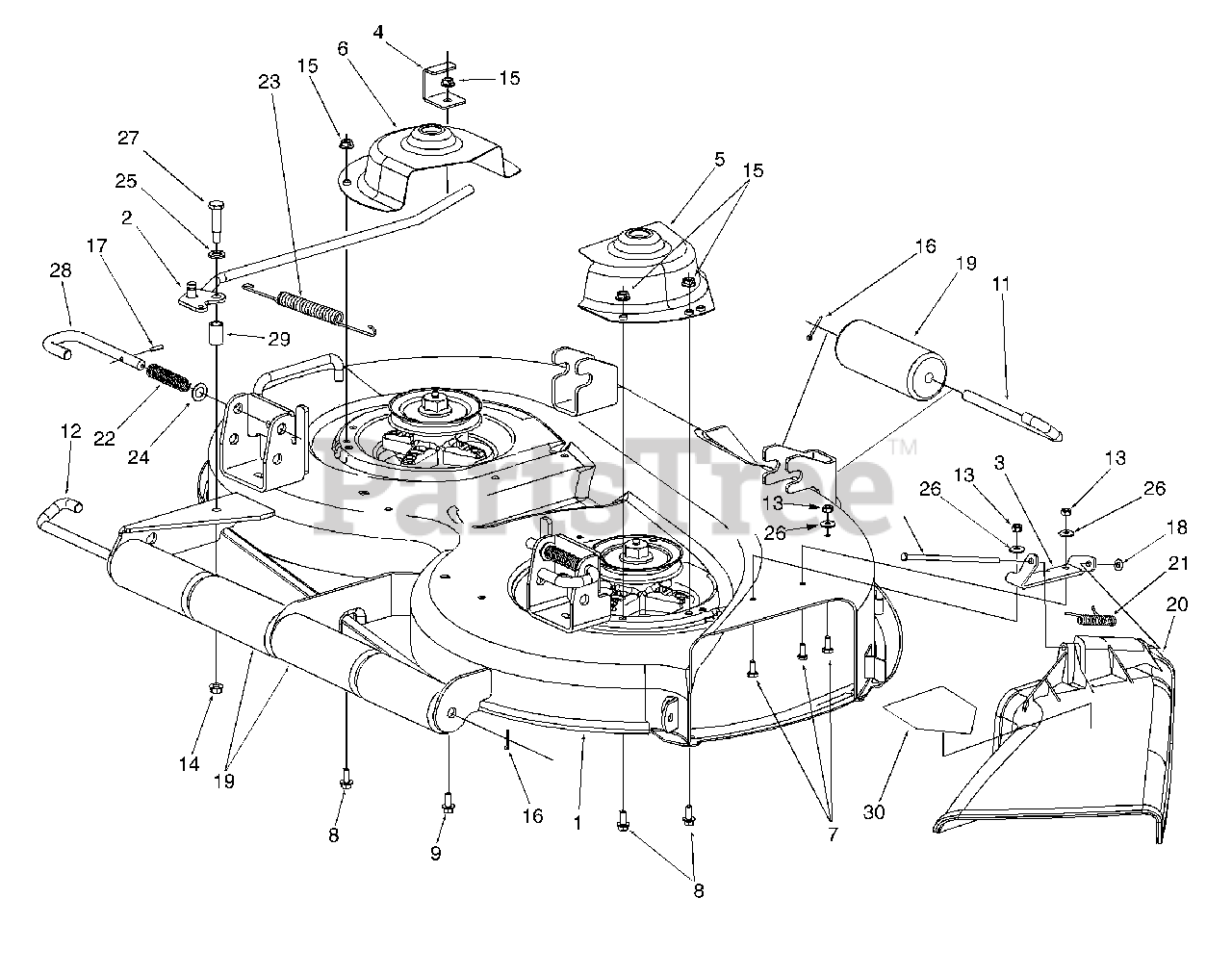

42" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0316

Housing Ass'y, 42" Mower Deck

Note: Code 0498

Variations

603-0316-0498

Cub Cadet 603-0316-0498

DECK ASSEMBLY:SHELL 42"(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

603-0316-0637

Cub Cadet 603-0316-0637

DECK ASSEMBLY:SHELL 42"(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

603-0316-0648

Cub Cadet 603-0316-0648

DECK ASSEMBLY:SHELL 42"(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

Cub Cadet 777-1426

Label, Danger, Top of Deck
(Superseded to 977-1426)

$

$

Not available

Cub Cadet 777-9192B

Label, Safety, Top of Deck
(Superseded to 777S30018)

$9.49

$

In Stock, Qty 9

0

2

Cub Cadet 603-0580

Rod Ass'y, Engagement

$

$

Not available

3

Cub Cadet 703-1693

Bracket, Hinge Mounting
(Superseded to 703-1693A)

$24.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-2559

Bracket, Stop

Note: Code 0498

Variations

703-2559-4021

Cub Cadet 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

703-2559-0498

Cub Cadet 703-2559-0498

Stop Bracket - OLD CUB YELLOW (0498)

$

$

Not available

703-2559-0637

Cub Cadet 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$

$

Not available

703-2559-0648

Cub Cadet 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$

$

Not available

703-2559-0716

Cub Cadet 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$28.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-3237

Shield, RH Pulley

Note: Code 0498

Variations

703-3237-0498

Cub Cadet 703-3237-0498

Belt Cover, RH - OLD CUB YELLOW (0498)

$66.99

$

Usually ships in 3-6 days

0

703-3237-0637

Cub Cadet 703-3237-0637

COVER-BELT RH - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

703-3237-0716

Cub Cadet 703-3237-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

703-3237-4021

Cub Cadet 703-3237-4021

Belt Cover, RH - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2945

Shield, LH Pulley

Note: Code 0498

Variations

703-2945-0498

Cub Cadet 703-2945-0498

USE 703-2945-0716 COVER-BELT - OLD CUB YELLOW (0498)

$71.99

$

Usually ships in 3-6 days

0

703-2945-0716

Cub Cadet 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

703-2945-4021

Cub Cadet 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

703-2945-0637

Cub Cadet 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

703-2945-0648

Cub Cadet 703-2945-0648

USE 703-2945-0637 COVER-BELT - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1260

Screw, Hex Wash Hd TT Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3008

Screw, Hex Cap 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

?10

Cub Cadet 711-0792

Pin, Hinge, .25 Dia x 6.75 Lg
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 12

0

11

Cub Cadet 711-3314

Pin, Roller, 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

12

Cub Cadet 711-3358

Pin, 42" Deck Roller

$

$

Not available

13

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0115

Pin, Cotter, 1/8 x 1.0

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 715-3003

Pin, Spirol, 3/16 x 3/4

$7.49

$

In Stock, Qty 5

0

18

Cub Cadet 726-0106

Cap, Speed Nut

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-3005

Roller

$30.99

$

In Stock, Qty 20+

0

20

Cub Cadet 731-1032

Deflector Ass'y, Chute
(Superseded to 631-05229)

Note: (Includes Ref No 3, 10, 18 & 21)

$86.99

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0602

Spring, Torsion
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

22

Cub Cadet 732-0802

Spring, Compression

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 732-0851A

Spring, Extension

$35.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0160

Washer, Flat, .536 x .93 x ,05

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0192

Washer, Flat, .531 x .93 x .90

$4.99

$

In Stock, Qty 16

0

26

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0213

Bolt, Shoulder, .498 x 1.45:3/8-16

$8.49

$

In Stock, only 2 left!

0

28

Cub Cadet 747-3013

Pin, Mower Support

$

$

Not available

29

Cub Cadet 750-0151

Spacer, .550 x .750 x .965
(Superseded to 950-0151)

$11.99

$

In Stock, Qty 20+

0

30

Cub Cadet 777-1584

Graphic, Danger Cut Finger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0
