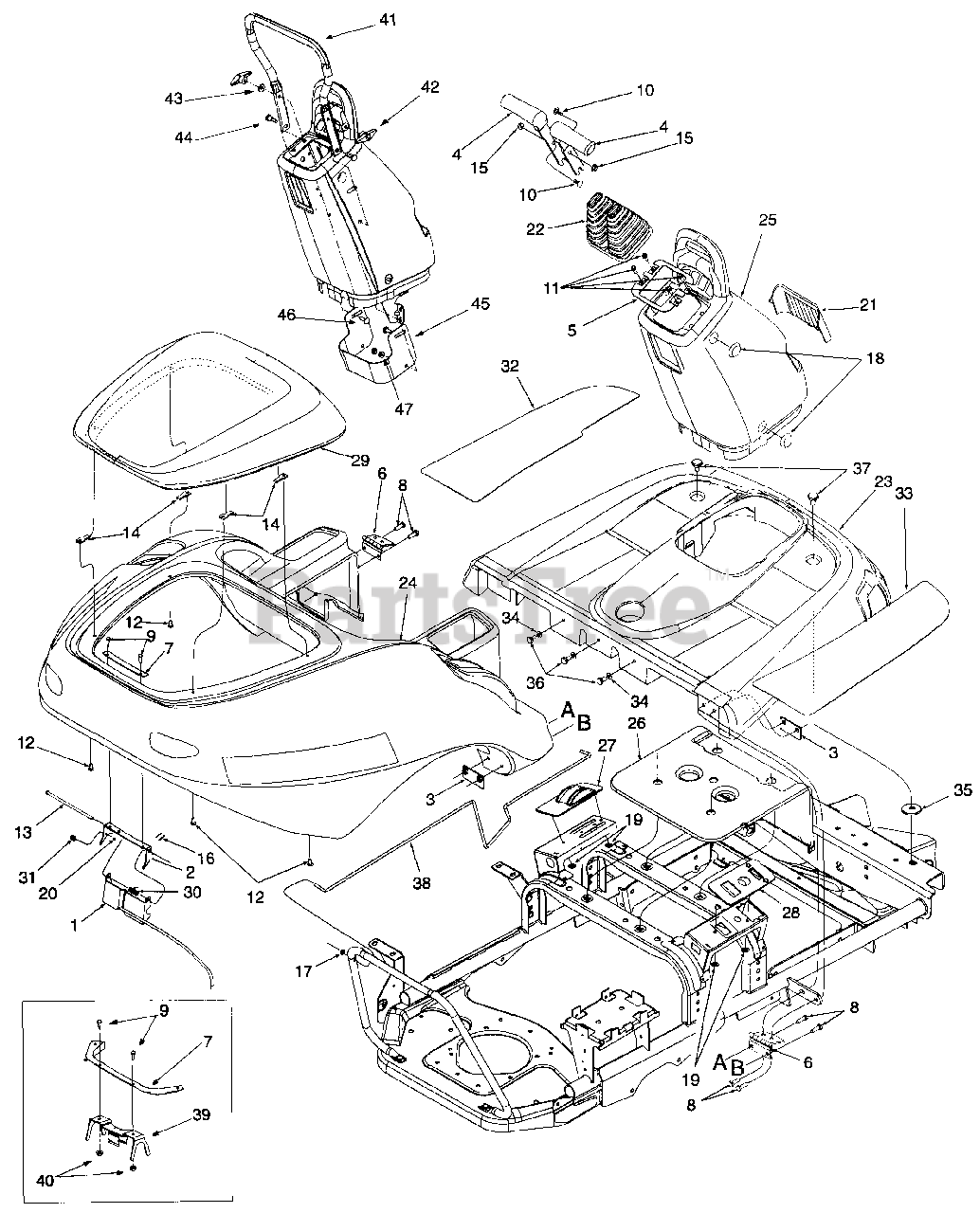

  • Title

1

Cub Cadet 603-0347

Handle Ass'y, Latch

$

$

Not available

2

Cub Cadet 603-0467

Bracket, Latch

$

$

Not available

3

Cub Cadet 603-0578

Plate Ass'y, Body Mounting

$

$

Not available

4

Cub Cadet 631-3005

Handle, Control

$

$

Not available

5

Cub Cadet 703-2648

Bracket, Bellow Retainer

Variations

Cub Cadet 703-2648-0637

BRACKET:RET:BELLOWS (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-2928

Hinge, Body

$

$

Not available

7

Cub Cadet 703-3078

Plate, Latch Mounting

$

$

Not available

8

Cub Cadet 710-0376

Screw, Hex Cap, 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

9

Cub Cadet 710-0425

Screw, Pan Hd, #10-24 x .625

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0642

Screw, Hex Wash Hd. Tap 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0946

Screw, Truss Machine 1/4-20 x .625 GR2

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-1092

Rod, Latch Mounting

$

$

Not available

14

Cub Cadet 712-0185

Nut, U-Type Speed, 1/4-20

$

$

Not available

15

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0127

Pin, Cotter, 1/16 x .75

$

$

Not available

17

Cub Cadet 726-0106

Push Cap, 1/4

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-0289

Plug, Button

$

$

Not available

19

Cub Cadet 726-3047

Push Nut
(Superseded to 926-3047)

$3.99

$

In Stock, only 4 left!

0

20

Cub Cadet 728-0117

Rivet, Pop, .125 Dia

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-3128A

Lens, Headlight

$

$

Not available

22

Cub Cadet 731-3185

Bellow, Control

$

$

Not available

23

Cub Cadet 731-3186

Body, Front Floor

Note: Includes Ref No 32 & 33

$

$

Not available

24

Cub Cadet 731-3187

Body, Rear Engine Compartment

$

$

Not available

25

Cub Cadet 731-3188

Console

$

$

Not available

26

Cub Cadet 731-3192

Cover, Seat Base

$

$

Not available

27

Cub Cadet 731-3195

Cover, LH Control Panel

$

$

Not available

28

Cub Cadet 731-3196

Cover, RH Control Panel
(Superseded to 731-3196A)

$

$

Not available

29

Cub Cadet 731-3189

Cover, Engine

$

$

Not available

30

Cub Cadet 732-0848

Spring, Torsion

$

$

Not available

31

Cub Cadet 732-0830

Clip, Spring
(Superseded to 932-0830)

$

$

Not available

32

Cub Cadet 735-0259

Pad, Floor LH

$

$

Not available

33

Cub Cadet 735-0260

Pad, Floor RH

$

$

Not available

34

Cub Cadet 736-0275

Washer, Flat

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-3039

Washer, Flat, .406 x 1.5 x .110

$4.99

$

In Stock, Qty 18

0

36

Cub Cadet 738-0140

Bolt, Shoulder

$5.49

$

In Stock, Qty 17

0

37

Cub Cadet 738-3163A

Bolt, Shoulder, .75 x .245:3/8-16

$

$

Not available

38

Cub Cadet 747-3303

Rod, Prop Support

$

$

Not available

39

Cub Cadet 603-0643

Clip Spring Bracket Assembly

$

$

Not available

40

Cub Cadet 712-3027

Hex Nut Lock Flange 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 749-3081

Cruise Control Tube

Variations

Cub Cadet 749-3081-0637

TUBE-CRUISE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 720-0241

Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0242

Bell Wash .340 ID

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 738-0754

Shoulder Screw .437 Dia .54

$3.99

$

In Stock, only 2 left!

0

45

Cub Cadet 703-3288

Control Tube Mount Bracket

Variations

Cub Cadet 703-3288-0637

CONTROL TUBE MOUNT BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 710-0276

Carriage Screw 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 712-3004A

Nut Hex Flange Lock 5/16-18 GR5

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 777-4712

Reflector, Body Rear

Note: (Not Shown)

$

$

Not available
