Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Cylinder Head, Valves And Breather Parts Diagram

42" Zero-Turn Mower

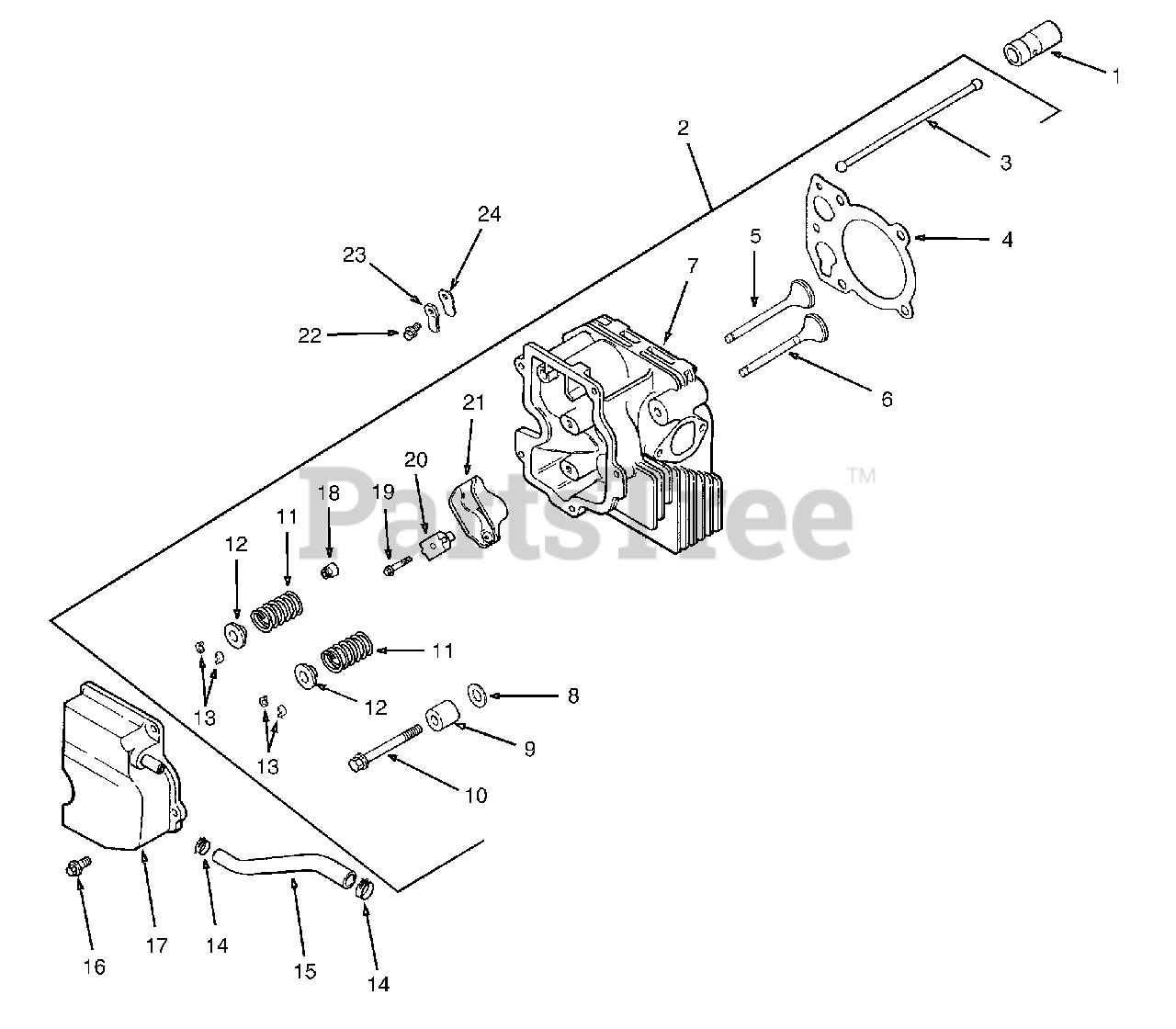

Cylinder Head, Valves And Breather Parts Diagram

  • Title

1

Cub Cadet KH-12-351-02

Lifter, Valve
(Superseded to KH-25-351-11-S)

$22.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-12-755-81

Kit, Cylinder Head

Note: Includes 3-21, Carb. Gasket (2), Air Cleaner Gasket, and Exhaust Gasket

$

$

Not available

3

Cub Cadet KH-12-411-01

Rod, Push
(Superseded to KH-12-411-04-S)

$4.49

$

In Stock, Qty 13

0

4

Cub Cadet KH-12-041-10

Gasket, Cylinder Head

$

$

Not available

5

Cub Cadet KH-12-017-01

Valve, Intake, Std.

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake, .010 over

$

$

Not available

6

Cub Cadet KH-12-016-01

Valve, Exhaust, Std.

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust, .010 over

$

$

Not available

7

Cub Cadet KH-12-318-19

Head, Cylinder

$

$

Not available

8

Cub Cadet KH-12-468-05

Washer, Plain 13/32

$

$

Not available

9

Cub Cadet KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

10

Cub Cadet KH-12-086-15

Screw, Hex Flange, M10 x 1.5 x 81
(Superseded to KH-20-086-02-S)

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-089-01

Spring, Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 10

0

14

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet KH-12-326-03

Hose, Breather

$

$

Not available

16

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, Qty 20+

0

17

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

$82.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-M-0640034

Screw, Hex Flange, M6 x 1.0 x 34

$

$

Not available

20

Cub Cadet KH-12-599-03

Pivot, Rocker Arm

$

$

Not available

21

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

22

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available

23

Cub Cadet KH-12-018-01

Retainer, Breather Reed
(Superseded to KH-66-018-04-S)

$4.99

$

In Stock, Qty 7

0

24

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available
