Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Engine Controls Parts Diagram

42" Zero-Turn Mower

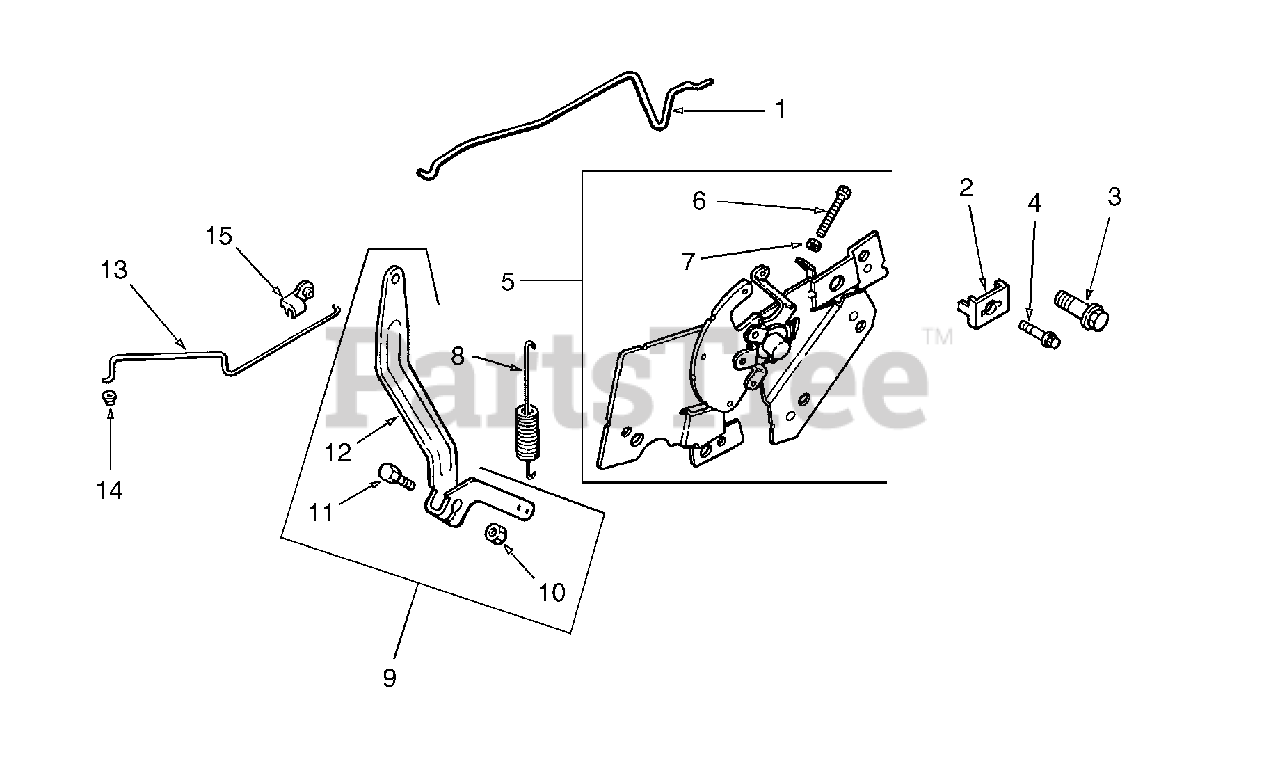

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-12-079-07

Linkage, Choke

$

$

Not available

2

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-M-0664020

Screw, Lobed Socket, M6 x 1.0 x 20
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

5

Cub Cadet KH-12-536-02

Control Assembly, Speed

Note: (Includes 6-7)

$

$

Not available

6

Cub Cadet KH-M-0401030

Screw, Hex Cap, M4 x 0.7 x 30
(Superseded to KH-M-401030)

$

$

Not available

7

Cub Cadet KH-M-0446030

Nut, Hex, M4 x 0.7
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, Qty 9

0

8

Cub Cadet KH-52-089-07

Spring, Governor

$

$

Not available

9

Cub Cadet KH-12-755-83

Kit, Governor Lever

Note: (Includes 10-12)

$

$

Not available

10

Cub Cadet KH-12-100-07

Nut, Hex Flange

$

$

Not available

11

Cub Cadet KH-52-211-04

Bolt, Round Head

$

$

Not available

12

Cub Cadet KH-12-090-26

Lever, Governor
(Superseded to KH-12-090-28)

$

$

Not available

13

Cub Cadet KH-12-079-01

Linkage, Throttle

$

$

Not available

14

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$

$

Not available

15

Cub Cadet KH-25-158-11

Bushing, Linkage Retaining

$

$

Not available
