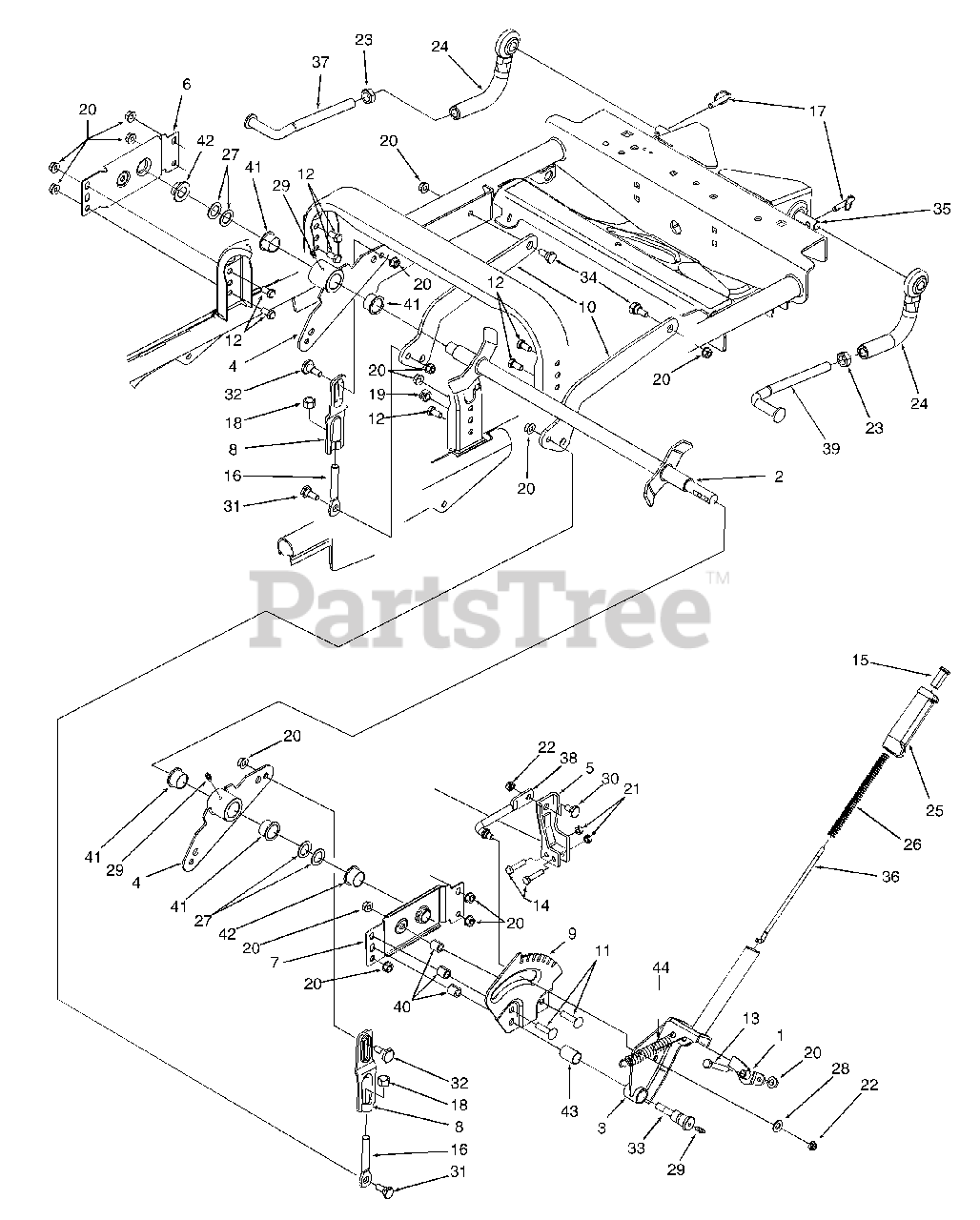

Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Lift System And Linkage Parts Diagram

42" Zero-Turn Mower

Lift System And Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0257

Fork , Lift

Variations

603-0257-0637

Cub Cadet 603-0257-0637

Fork Lift Assembly - POWDER BLACK (0637)

$100.99

$

In Stock, only 1 left!

0

$100.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0313

Shaft, Lift
(Superseded to 603-0313-0637)

Variations

603-0313-0637

Cub Cadet 603-0313-0637

SHAFT ASM: LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0327

Handle Ass'y, Lift,

Note: Code 0498 Includes Ref. No. 43

Variations

603-0327-0498

Cub Cadet 603-0327-0498

HANDLE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

603-0327-0637

Cub Cadet 603-0327-0637

HANDLE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 603-0370

Link Ass'y, Pivot,

Note: Includes Ref. Nos. 29 and 41(2)

Variations

603-0370-0637

Cub Cadet 603-0370-0637

LINK ASSEMBLY:PIVOT W/B(POWDER BLACK) - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

603-0370-0498

Cub Cadet 603-0370-0498

LINK ASSEMBLY:PIVOT W/B - OLD CUB YELLOW (0498)

$

$

Not available

$

$

5

Cub Cadet 603-0401

Arm, Lift
(Superseded to 603-0401-0637)

Note: Code 0498

Variations

603-0401-0637

Cub Cadet 603-0401-0637

ARM ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-0422

Bracket, Shaft Mtg. LH,

Note: Code 0498 Includes Ref. No. 42

$

$

Not available

7

Cub Cadet 603-0423

Bracket, Shaft Mtg. RH,

Note: Code 0498 Includes Ref. No. 42

$

$

Not available

8

Cub Cadet 703-2621

Link, Adjustable Deck Lift

Variations

703-2621-0637

Cub Cadet 703-2621-0637

LINK:LIFT:ADJ DECK(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 703-2772

Plate, Deck Height Adjustment

Note: Code 0498

Variations

703-2772-0498

Cub Cadet 703-2772-0498

PLT. HGT. ADJ DECK - OLD CUB YELLOW (0498)

$

$

Not available

$

$

10

Cub Cadet 703-2780

Link, Parallel Lift

$

$

Not available

11

Cub Cadet 710-0431

Bolt, Carriage, 3/8-16 x 1.5

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 710-3011

Screw, Hex Cap, 3/8-16 x 2-1/4

$7.49

$

In Stock, Qty 7

0

14

Cub Cadet 710-3083

Screw, Hex Cap, 5/16-18 x 1.38 GR5

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-0642A

Button, Handle

$8.49

$

In Stock, only 3 left!

0

16

Cub Cadet 711-0773

Link, Eye Bolt Adjustment

$

$

Not available

17

Cub Cadet 711-3266

Clevis Pin, w/ Detent Ball

$16.99

$

In Stock, Qty 5

0

18

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0290

Nut, Hex Center Lock, 7/16-14

$4.99

$

In Stock, Qty 8

0

20

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3020

Nut, Hex Insert Lock Jam 3/8-16
(Superseded to 912-3020)

$6.99

$

In Stock, Qty 9

0

23

Cub Cadet 712-3056

Nut, Hex Jam, 5/8-18

$5.49

$

In Stock, Qty 6

0

24

Cub Cadet 723-0453

Link, Parallel

$

$

Not available

25

Cub Cadet 731-3158

Grip, Deck Lift Handle

$18.99

$

In Stock, only 1 left!

0

26

Cub Cadet 732-3097

Spring, Compression

$15.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0287

Washer, Flat, .79 x 1.24 x .06

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .06

$4.99

$

In Stock, Qty 18

0

29

Cub Cadet 737-0280

Fitting, Grease

$8.49

$

In Stock, only 2 left!

0

30

Cub Cadet 738-0183

Bolt, Shoulder
(Superseded to 938-0183)

$

$

Not available

31

Cub Cadet 738-0380

Bolt, Shoulder

$8.49

$

In Stock, Qty 10

0

32

Cub Cadet 738-0507B

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 738-3150

Bolt, Lift Handle Shoulder

$

$

Not available

34

Cub Cadet 738-3151

Bolt, Shoulder
(Superseded to 738-05008)

$8.99

$

In Stock, Qty 14

0

35

Cub Cadet 747-3255

Rod, Parallel Link Front Mtg.

$

$

Not available

36

Cub Cadet 747-3267

Rod, Lift Handle

$

$

Not available

37

Cub Cadet 747-3275

Rod, Connecting LH

$

$

Not available

38

Cub Cadet 747-3276

Rod, Lift Link

$

$

Not available

39

Cub Cadet 747-3286

Rod, Connecting RH

$

$

Not available

40

Cub Cadet 750-3200

Spacer, .448 x .688 x .673

$

$

Not available

41

Cub Cadet 741-0229

Bearing, Flange, 1.0 ID

$

$

Not available

42

Cub Cadet 741-0376

Bearing, Flange, .75 ID x 1.0 OD
(Superseded to 941-0376)

$9.49

$

In Stock, only 2 left!

0

43

Cub Cadet 741-3081

Bearing, Sleeve, .75 x .875 x 1.25

$

$

Not available

44

Cub Cadet 732-0556

Spring
(Superseded to 932-0556)

$22.99

$

In Stock, only 4 left!

0
