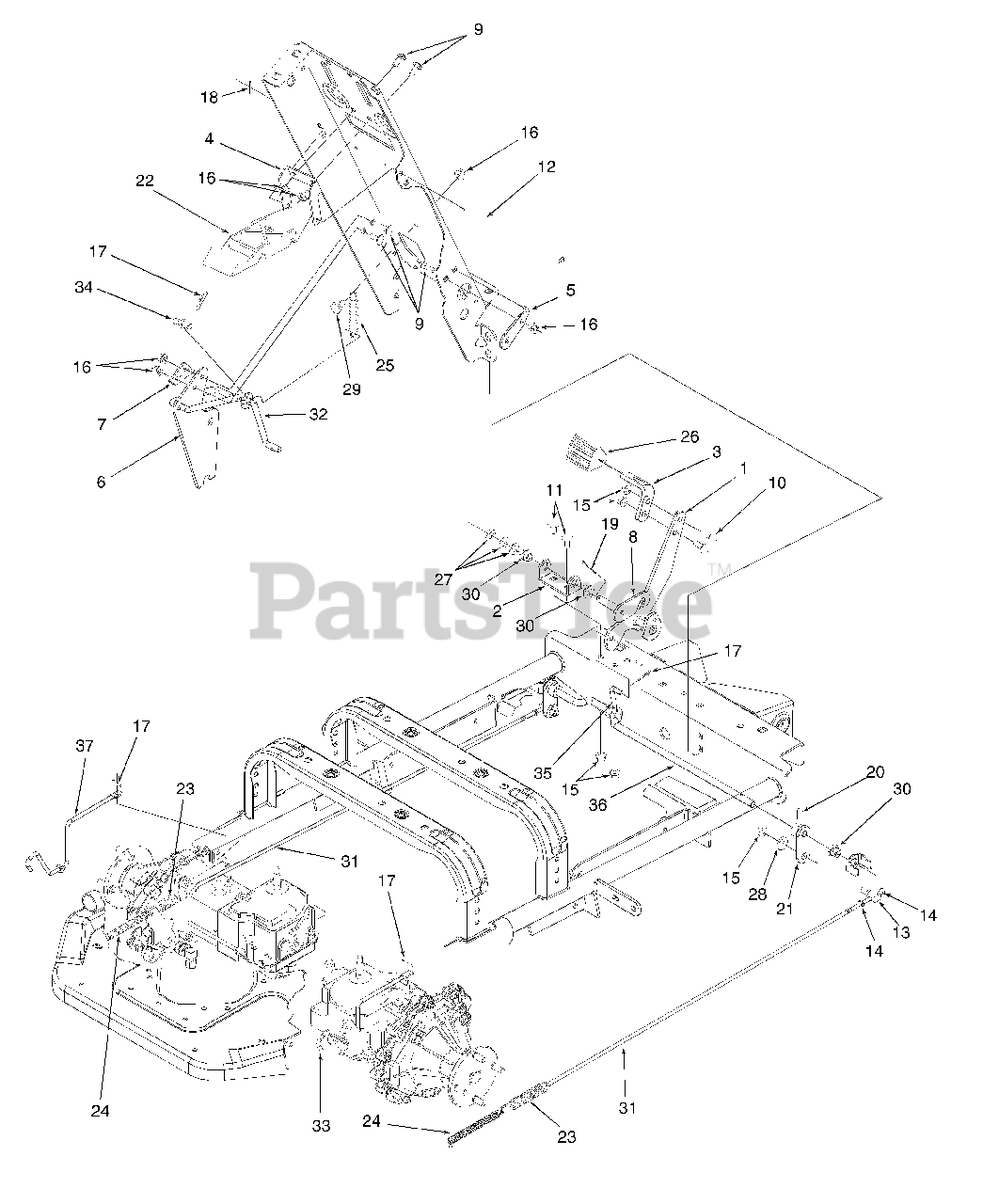

Z42 (53AC305G100) - Cub Cadet 42" Zero-Turn Mower Parking Brake And Linkage Parts Diagram

42" Zero-Turn Mower

Parking Brake And Linkage Parts Diagram

  • Title

1

Cub Cadet 603-0461A

Shaft , Park Brake Pedal

Variations

Cub Cadet 603-0461A-0637

SHAFT-PARK BRAKE P(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 703-2806

Bracket, Pedal Mounting

Variations

Cub Cadet 703-2806-0637

BRACKET MGT. PEDAL (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 703-2807B

Bracket, Foot Pad Mounting

Variations

Cub Cadet 703-2807B-0637

BRACKET, MGT. FOOTPAD(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-2856

Bracket, Park Brake

Variations

Cub Cadet 703-2856-0637

BRAKE BRACKETPARK (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-2857

Bracket, Rod Retainer

$

$

Not available

6

Cub Cadet 703-3073

Plate, Support

Variations

Cub Cadet 703-3073-0637

SUPPORT PLATE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-3074

Bracket, Brake Rod Stop

$

$

Not available

8

Cub Cadet 703-3076

Plate, Brake Link

Variations

Cub Cadet 703-3076-0637

PLATE-BRAKE LINK (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 711-1088

Pin, Clevis, 1/4 x 6.65

$

$

Not available

13

Cub Cadet 711-3357

Ferrule

$

$

Not available

14

Cub Cadet 712-0314

Nut, Hex Jam, 1/4-28

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0104

Pin, Internal Cotter

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0127

Pin, Cotter, 1/16 x .75

$

$

Not available

19

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.49

$

In Stock, Qty 11

0

20

Cub Cadet 715-0120

Pin, Spiral, 3/16 x 1.0

$9.99

$

In Stock, only 3 left!

0

21

Cub Cadet 718-3090

Arm, Brake

$

$

Not available

22

Cub Cadet 731-3165

Lever, Park Brake Engagement
(Superseded to 759-04158)

$

$

Not available

23

Cub Cadet 732-0463

Spring, Extension, .75 O.D. x 5.0
(Superseded to 732-0463A)

$17.99

$

In Stock, only 1 left!

0

24

Cub Cadet 732-0800

Spring, Extension

$

$

Not available

25

Cub Cadet 732-0857

Spring, Extension, .5 O.D. x 2.25

$

$

Not available

26

Cub Cadet 735-0251

Foot Pad, Brake

$

$

Not available

27

Cub Cadet 736-0160

Washer, Flat, .536 x .930 x .05

$3.99

$

In Stock, only 2 left!

0

28

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 738-0137A

Bolt, Shoulder, .340 x .285:1/4-20

$9.49

$

In Stock, Qty 18

0

30

Cub Cadet 741-0324

Bearing, Hex Flange, .506 I.D.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

31

Cub Cadet 747-3266A

Rod, Brake

$

$

Not available

32

Cub Cadet 747-3272

Rod, Park Brake Retaining

$

$

Not available

33

Cub Cadet 747-3284

Rod, Hydro Pump Release RH

$

$

Not available

34

Cub Cadet 747-3293

Rod, Park Brake

$

$

Not available

35

Cub Cadet 747-3317

Rod, Park Brake Support

$

$

Not available

36

Cub Cadet 747-3318

Rod, Brake Connecting

$

$

Not available

37

Cub Cadet 747-3363

Rod, Hydro Pump Release LH

$

$

Not available
