Z42 (53BA1B2G100) - Cub Cadet 42" Zero-Turn Mower (1999) Seat Assembly Parts Diagram

42" Zero-Turn Mower

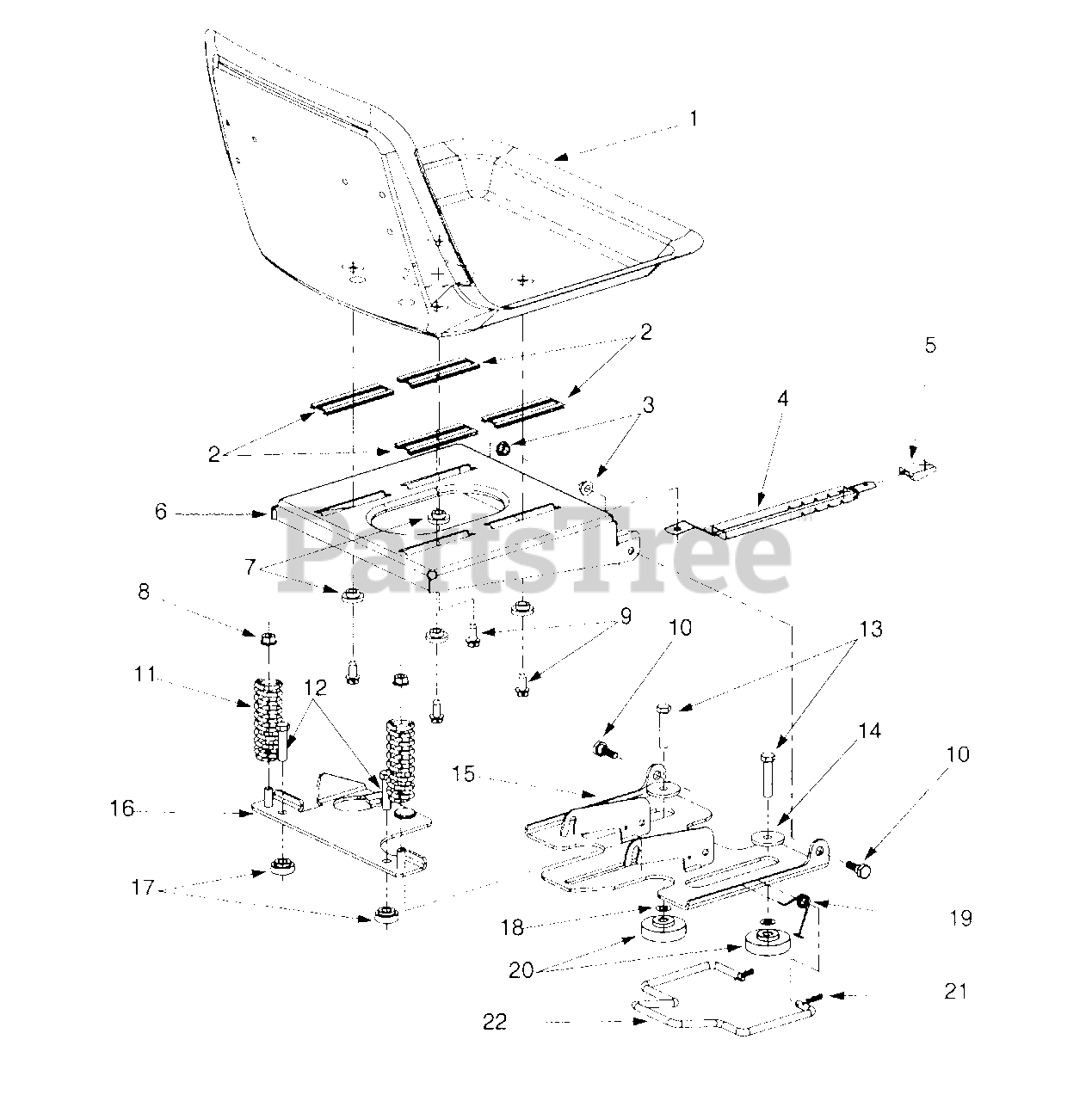

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 757-3006

Seat Assembly

$

$

Not available

2

Cub Cadet 731-3154

Seat Slide

$

$

Not available

3

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 732-3098

Spring Index

$

$

Not available

5

Cub Cadet 720-0190

Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 2 left!

0

6

Cub Cadet 603-0294

Bracket Assembly

$

$

Not available

7

Cub Cadet 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3005

Flange Lock Nut 3/8-16

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1260A

Hex Washer Screw 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 738-0296

Shoulder Screw

$3.99

$

In Stock, Qty 10

0

11

Cub Cadet 732-3080

Compression Spring 1.28 OD x 3.5
(Superseded to 732-3080A)

$12.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0520

Hex Cap Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0347

Hex Cap Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0227

Flatwasher

$5.99

$

In Stock, Qty 20+

0

15

Cub Cadet 603-0470

Seat Bracket Assembly

$

$

Not available

16

Cub Cadet 603-0318A

Seat Spring Plate Assembly

Variations

Cub Cadet 603-0318A-0637

PLATE-SEAT SPRG MT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 738-3156

Shoulder Spacer

$

$

Not available

18

Cub Cadet 736-0314

Thrust Washer

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0827

Torsion Spring

$

$

Not available

20

Cub Cadet 738-3166

Shoulder Spacer

$

$

Not available

21

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 747-3342

Rod

$

$

Not available
