Z48 (53AC355M100) - Cub Cadet 48" Zero-Turn Mower 18 HP Crankcase And Crankshaft Parts Diagram

48" Zero-Turn Mower

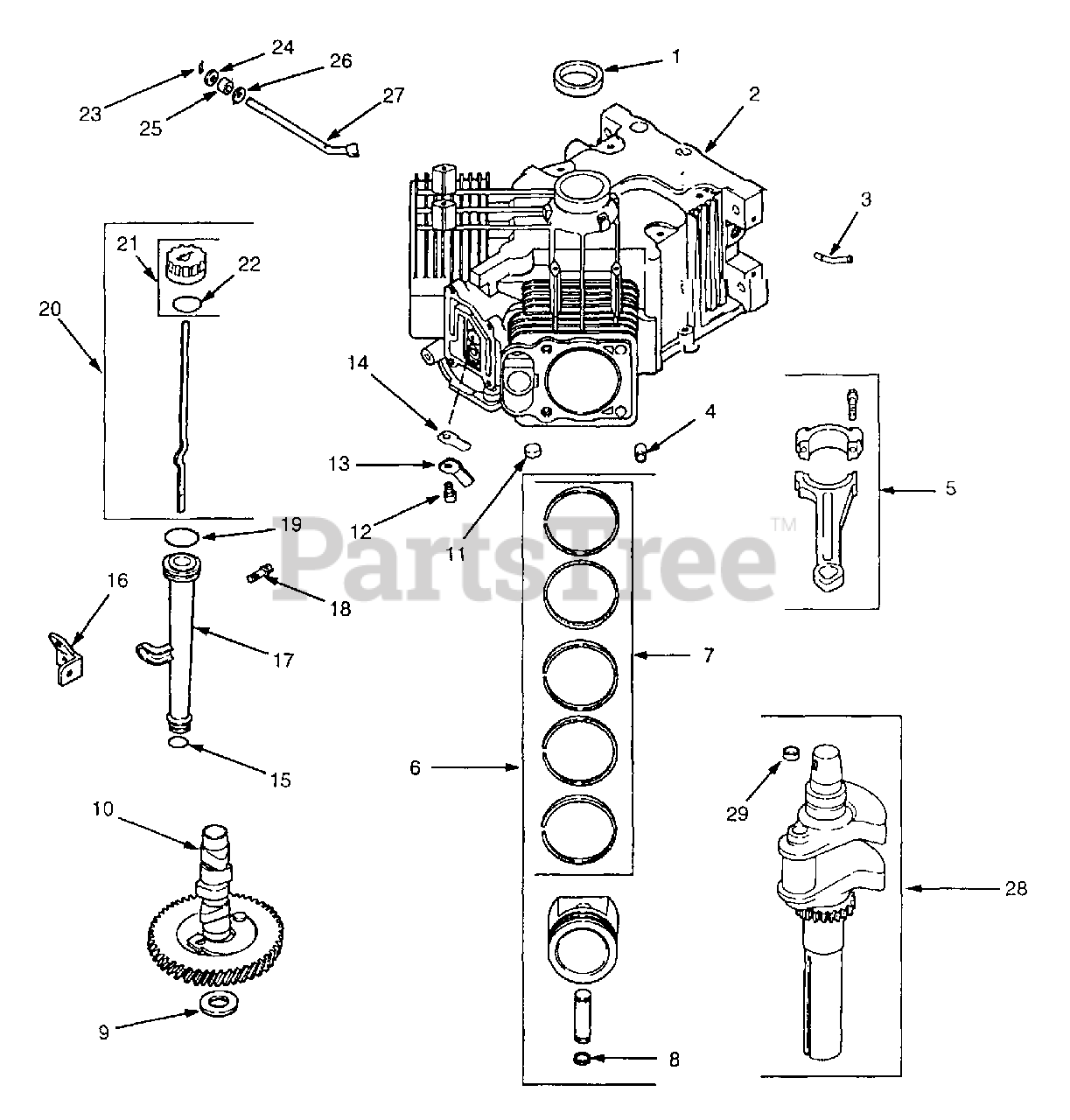

18 HP Crankcase And Crankshaft Parts Diagram

  • Title

Cub Cadet KH-61542

Engine, Complete

$

$

Not available

Cub Cadet KH-24-522-10

Short Block
(Superseded to KH-24-522-222)

$

$

Not available

Cub Cadet KH-24-782-05

Miniblock

$

$

Not available

1

Cub Cadet KH-24-032-01

Seal, Front Oil
(Superseded to KH-24-032-19-S)

$9.49

$

In Stock, Qty 20+

0

2

Cylinder Block

Note: (USE: Miniblock )

$

$

Not available

3

Cub Cadet KH-24-294-03

Fitting

$

$

Not available

4

Cub Cadet KH-12-380-17

Pin, Locating Dowel
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-24-067-09

Rod Ass'y, Connecting, Std
(Superseded to KH-25-067-04-S)

$75.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-067-10

Rod Ass'y, Connecting, .010 Under

$

$

Not available

6

Cub Cadet KH-24-874-01

Piston w/Ring Set, Std
(Superseded to KH-24-874-46-S)

Note: (Incl 7-8)

$199.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-874-02

Piston w/Ring Set, .010 Over
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-03

Piston w/Ring Set, .020 Over
(Superseded to KH-24-874-49-S)

$189.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-01

Ring Set, Std
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-02

Ring Set, .010 Over
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-03

Ring Set, .020 Over
(Superseded to KH-24-108-25-S)

$

$

Not available

8

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$3.49

$

In Stock, Qty 14

0

9

Cub Cadet KH-12-422-09

Shim, Crankshaft, .032 (Red)
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-13

Shim, Crankshaft, .040 (Black)
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Crankshaft, .028 (White)
(Superseded to KH-12-422-07-S)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-08

Shim, Crankshaft, .030 (Blue)
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-12-422-10

Shim, Crankshaft, .034 (Yellow)
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, Qty 11

0

Cub Cadet KH-12-422-11

Shim, Crankshaft, .036 (Green)
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-12

Shim, Crankshaft, .038 (Gray)
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-05

Camshaft
(Superseded to KH-24-012-23-S)

$

$

Not available

11

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KH-M-0545010

Screw, Breather Reed Retainer M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-018-04

Retainer, Reed

$

$

Not available

14

Cub Cadet KH-24-402-05

Reed, Breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01

O-Ring, Lower Oil Fill Tube
(Superseded to KH-12-153-01-S)

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-24-126-19

Bracket, Oil Fill Tube
(Superseded to KH-24-126-243-S)

$11.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-123-04

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$3.49

$

In Stock, only 1 left!

0

19

Cub Cadet KH-12-153-02

O-Ring, Upper Oil Fill Tube
(Superseded to KH-12-153-02-S)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-038-04

Dipstick Ass'y
(Superseded to KH-24-038-04-S)

$21.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-25-755-13

Kit, Oil Fill Cap

$

$

Not available

22

Cub Cadet KH-12-153-03

O-Ring, Dipstick
(Superseded to KH-25-153-02-S)

$3.49

$

In Stock, Qty 15

0

23

Cub Cadet KH-12-380-04

Pin, Hitch

$

$

Not available

24

Cub Cadet KH-M-631005

Washer, 6mm

$

$

Not available

25

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

26

Cub Cadet KH-X-25-102

Washer, 1/4
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, only 3 left!

0

27

Cub Cadet KH-24-144-01

Shaft, Governor Cross

$

$

Not available

28

Cub Cadet KH-24-014-42

Crankshaft
(Superseded to KH-24-014-364-S)

Note: (Includes 29)

$517.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 9

0

Cub Cadet KH-24-755-03

Gasket Set
(Superseded to KH-24-755-107-S)

$143.99

$

In Stock, only 3 left!

0
