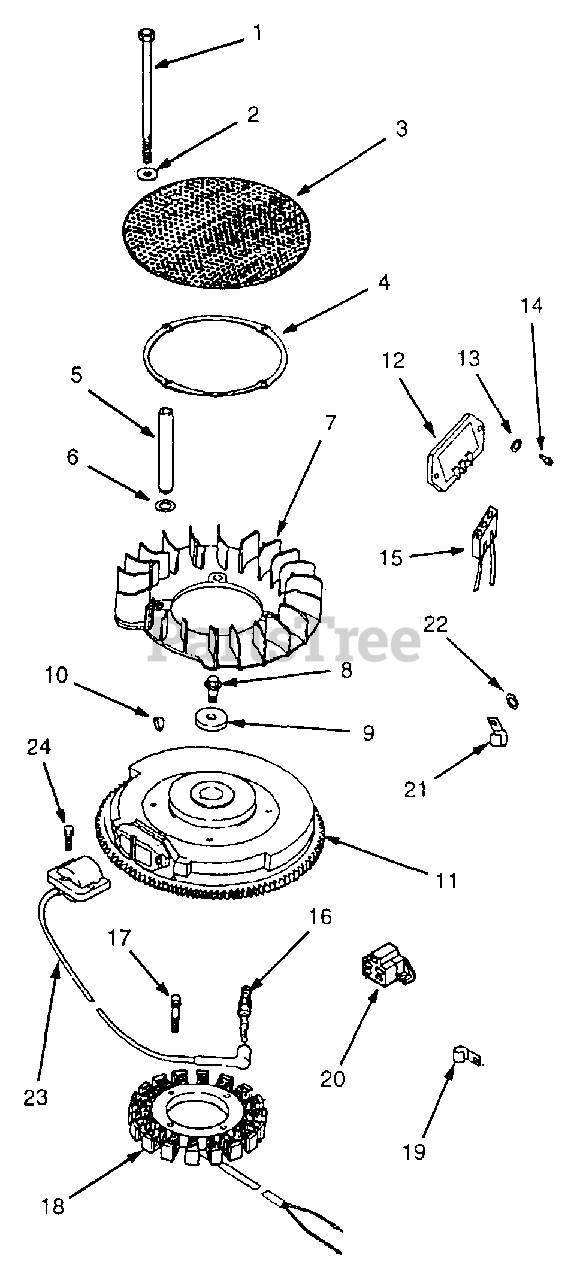

Z48 (53AC355M100) - Cub Cadet 48" Zero-Turn Mower 18 HP Ignition, Electrical And Flywheel Parts Diagram

48" Zero-Turn Mower

18 HP Ignition, Electrical And Flywheel Parts Diagram

  • Title

1

Cub Cadet KH-M-0603100

Screw, Hex Cap, M6 x 1.0 x 100

$

$

Currently unavailable

2

Cub Cadet KH-X-25-53

Washer, .266 x .5

$

$

Not available

3

Cub Cadet KH-24-162-25

Screen, Grass
(Superseded to KH-24-162-41-S)

$24.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-141-06

Ring, Support
(Superseded to KH-25-141-08-S)

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-24-112-14

Spacer, Grass Screen

$

$

Not available

6

Cub Cadet KH-24-468-11

Washer, Spring, 10mm

$

$

Not available

7

Cub Cadet KH-24-157-01

Fan
(Superseded to KH-24-755-253-S)

$50.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-12-086-14

Screw, Hex Flange, M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-468-03

Washer, 3/8

$

$

Not available

10

Cub Cadet KH-X-42-15

Key

$

$

Not available

11

Cub Cadet KH-24-025-04

Flywheel
(Superseded to KH-24-025-55-S)

$310.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-403-03

Rectifier/Regulator
(Superseded to KH-41-403-10-S)

$126.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-X-25-92

Washer, 3/16

$

$

Not available

14

Cub Cadet KH-24-086-18

Screw, Phillips Hd, 11-16 x 7/8

$

$

Not available

15

Cub Cadet KH-236602

Connector, Rectifier/Regulator
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, only 2 left!

0

16

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-0548025

Screw, Hex Cap, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-24-085-03

Stator, 15 Amp
(Superseded to KH-237878)

$

$

Not available

19

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

20

Cub Cadet KH-25-155-06

Connector

$

$

Not available

21

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

22

Cub Cadet KH-X-25-63

Washer, 1/4

$

$

Not available

23

Cub Cadet KH-24-584-01

Module, Ignition
(Superseded to KH-24-584-45-S)

$116.99

$

Usually ships in 3-6 days

0

24

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x 0.8 x 20

$

$

Not available

Cub Cadet KH-24-176-41

Harness, Wiring

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-176-50

Harness, Wiring
(Superseded to KH-24-176-150-S)

Note: Not Shown

$55.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-09

Wire Lead (green-19-1/2")

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-518-07

Wire Lead (violet-36-1/2")
(Superseded to KH-25-518-34-S)

Note: Not Shown

$8.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-518-28

Wire Lead (black-4")
(Superseded to KH-24-518-12-S)

Note: Not Shown

$5.99

$

In Stock, only 2 left!

0
