Z48 (53BA1B5M100) - Cub Cadet 48" Zero-Turn Mower (1999) 48" Deck Assembly Parts Diagram

48" Zero-Turn Mower

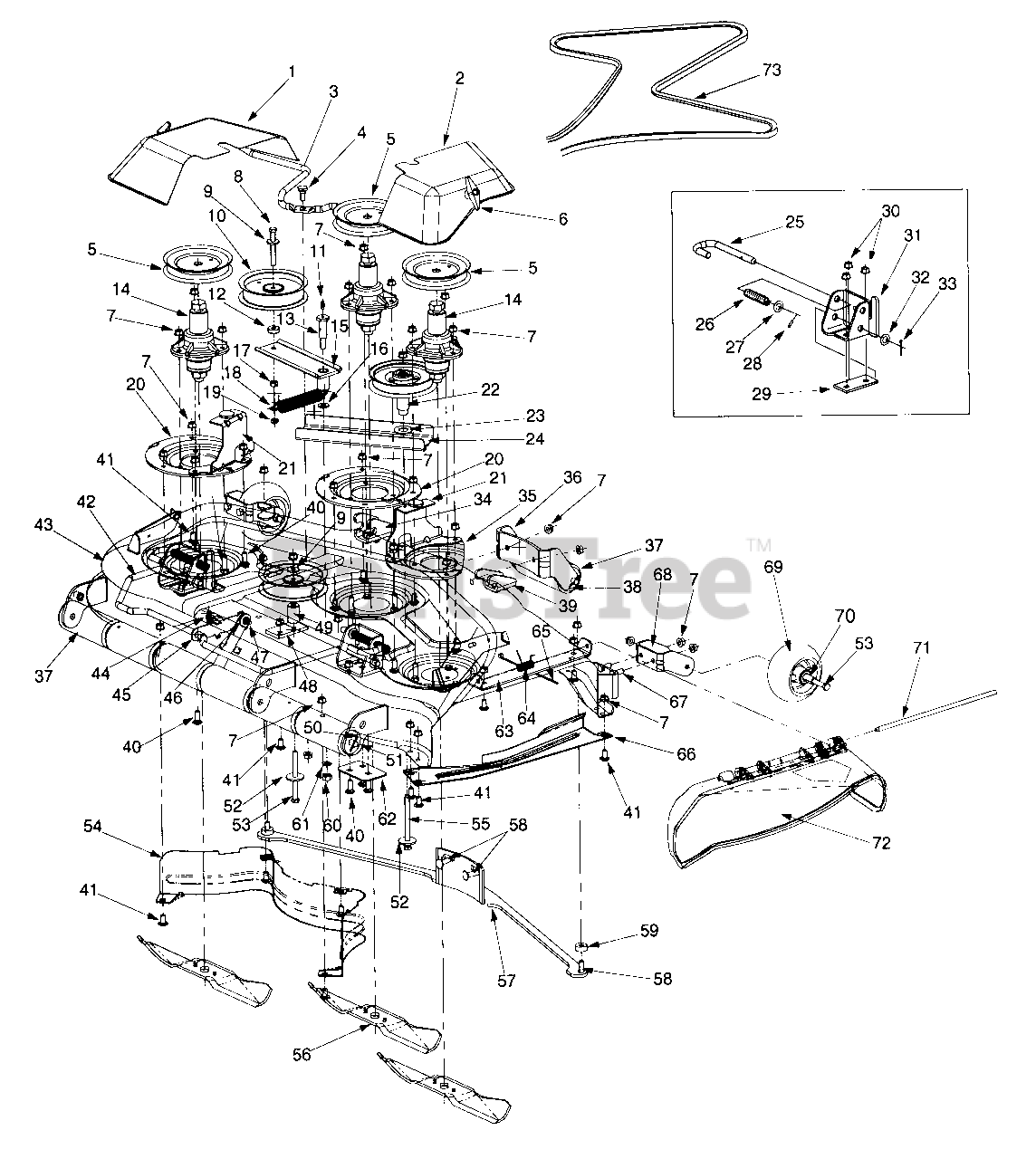

48" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 703-2817

LH Belt Cover

Variations

Cub Cadet 703-2817-0498

USE 703-2817-0637 COVER:BELT: - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2817-0637

COVER:BELT:LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2817-0648

USE 703-2817-0637 COVER:BELT: - TECH GRAY (0648)

$

$

Not available

$

$

2

Cub Cadet 703-2816

RH Belt Cover

Variations

Cub Cadet 703-2816-0498

COVER:BELT:RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2816-0637

BELT COVER (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 747-3306

Idler Spring Mounting Rod

$

$

Not available

4

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, Qty 13

0

5

Cub Cadet 756-3106

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, Qty 5

0

6

Cub Cadet 720-0241

Wingnut Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 15

0

9

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, Qty 6

0

10

Cub Cadet 756-3105

Idler Pulley 5.0

$73.99

$

In Stock, Qty 5

0

11

Cub Cadet 737-0280

Grease Fitting

$7.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 711-0242

Spacer

$4.49

$

In Stock, Qty 11

0

13

Cub Cadet 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 7

0

14

Cub Cadet 603-0690

Spindle Ass'y

$

$

Not available

15

Cub Cadet 603-0469A

Idler Bearing Arm Ass'y

Variations

Cub Cadet 603-0469A-0637

IDLER BEARING ARM ASS'Y - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 736-3015

Flat Washer .469 ID x .875 OD
(Superseded to 936-3015)

$4.49

$

In Stock, only 3 left!

0

17

Cub Cadet 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

18

Cub Cadet 732-0942

Extension Spring 1.0 OD x 5.78 Lg

$

$

Not available

19

Cub Cadet 712-0342

Jam Nut 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 703-2089A

Reinforcement Disk
(Superseded to 703-2089A-0637)

Variations

Cub Cadet 703-2089A-0637

DISK-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 603-0326

Belt Cover Bracket Ass'y

Variations

Cub Cadet 603-0326-0498

BRACKET SUPT. - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0326-0637

BRACKET SUPT. - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 603-0407

Idler Pulley Ass'y 5.0

$

$

Not available

23

Cub Cadet 736-0316

Flat Washer .78 ID x 1.59 OD

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 703-2849

Channel
(Superseded to 703-2849-0637)

Variations

Cub Cadet 703-2849-0637

CHANNEL - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 747-3013

Mower Support Pin

$22.99

$

In Stock, Qty 5

0

26

Cub Cadet 732-0802

Compression Spring

$4.49

$

In Stock, only 4 left!

0

27

Cub Cadet 736-0160

Flat Washer .536 ID X .93 QD

$4.49

$

In Stock, only 2 left!

0

28

Cub Cadet 715-3003

Spirol Spring Pin

$6.99

$

In Stock, Qty 11

0

29

Cub Cadet 703-2683

Rear Deck Hanger Bracket Spacer

Variations

Cub Cadet 703-2683-0637

SPACER-HANGER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 603-0351

Rear Hanger Bracket LH

Variations

Cub Cadet 603-0351-0498

BRACKET. HANGER LH RR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0351-0637

HANGER BRACKET (LH) RR - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 736-0160

Flat Washer .536 ID x .93 OD

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet 703-2767

Front End Deck Bracket LH

Variations

Cub Cadet 703-2767-0498

BRACKET DECK FRT (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2767-0637

BRACKET DECK FRT (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 703-2090

Reinforcement Disk RH

Variations

Cub Cadet 703-2090-0498

USE 703-2090-0716 DISK-REINFO - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2090-0637

USE 703-2090-0716 DISK-REINFO - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2090-0716

DISK-REINFORCE RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

36

Cub Cadet 703-2091A

Front Roller Bracket

Variations

Cub Cadet 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

39

Cub Cadet 703-2430

Front End Deck Bracket RH

Variations

Cub Cadet 703-2430-0498

Front End Deck Bracket, RH - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2430-0648

FRONT END DECK BRACKET (RH) - TECH GRAY (0648)

$

$

Not available

$

$

40

Cub Cadet 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-3297A

Support Deck Rod

$

$

Not available

43

Cub Cadet 603-0348

Mower Deck Ass'y 48"

Variations

Cub Cadet 603-0348-0498

DECK ASSEMBLY:S - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0348-0648

DECK ASSEMBLY:S - TECH GRAY (0648)

$

$

Not available

$

$

44

Cub Cadet 732-0395

Extension Spring .50 OD x 2.51 Lg
(Superseded to 932-0395)

$

$

Not available

45

Cub Cadet 703-2929

Support Deck Link

Variations

Cub Cadet 703-2929-0498

DECK SUPPORT LINK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2929-0637

LINK-DECK SUPPORT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 736-0231

Flat Washer .344 ID x 1.125 OD

$4.99

$

In Stock, only 4 left!

0

47

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

48

Cub Cadet 703-3381

Idler Support Plate

Variations

Cub Cadet 703-3381-0637

PLATE-IDLER SUPPOR - POWDER BLACK (0637)

$

$

Not available

$

$

49

Cub Cadet 750-3243

Spacer .380 ID x 1.0 OD

$

$

Not available

50

Cub Cadet 714-0115

Cotter Pin

$3.99

$

In Stock, only 1 left!

0

51

Cub Cadet 711-1103

Roller Pin

$

$

Not available

52

Cub Cadet 736-0227

Flat Washer

$6.49

$

In Stock, Qty 20+

0

53

Cub Cadet 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 16

0

54

Cub Cadet 703-2161

Deck Baffle
(Superseded to 703-2161-0637)

Variations

Cub Cadet 703-2161-0498

Inner Rear Baffle - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2161-0637

Inner Rear Baffle - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2161-0648

Inner Rear Baffle - TECH GRAY (0648)

$

$

Not available

Cub Cadet 703-2161-0716

Inner Rear Baffle - CUB YELLOW-99 (0716)

$

$

Not available

$

$

55

Cub Cadet 710-0693

Hex Cap Screw 3/8-16 x 4.5

$14.99

$

In Stock, only 2 left!

0

56

Cub Cadet 759-3826

Mower Blade
(Superseded to 742P3025)

$46.99

$

In Stock, Qty 12

0

57

Cub Cadet 603-0154

Front Bar

Variations

Cub Cadet 603-0154-0498

Bar-48" Fr - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0154-0637

BAR-48 FRO - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0154-0648

Bar-48" Fr - TECH GRAY (0648)

$

$

Not available

$

$

58

Cub Cadet 710-3034

Carriage Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 7

0

59

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, Qty 20+

0

60

Cub Cadet 712-3019

Hex Nut 7/16-14

$6.99

$

In Stock, only 1 left!

0

61

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 703-2988

Support Plate

Variations

Cub Cadet 703-2988-0637

SUPPORT PLATE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

63

Cub Cadet 703-2392

Bracket
(Superseded to 631-04070C)

Variations

Cub Cadet 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, Qty 20+

0

$122.99

$

In Stock, Qty 20+

0

64

Cub Cadet 732-3070

Torsion Spring
(Superseded to 732-3070A)

$11.99

$

In Stock, Qty 5

0

65

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 4 left!

0

66

Cub Cadet 603-0150

Finger Guard
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 603-0150-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$69.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0150-0648

Finger Guard, Black - TECH GRAY (0648)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

67

Cub Cadet 710-3001

Hex Cap Screw 3/8-16 x .880

$7.49

$

In Stock, Qty 11

0

68

Cub Cadet 703-2410

Castor Bracket

Variations

Cub Cadet 703-2410-0498

Deck Wheel Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2410-0637

BRACKET-DECK WHEEL PWDR BLK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2410-0648

BRACKET-DECK - TECH GRAY (0648)

$

$

Not available

$

$

69

Cub Cadet 634-3159

Wheel Complete

$34.99

$

In Stock, Qty 20+

0

70

Cub Cadet 750-3193

Spacer

$18.99

$

In Stock, Qty 20+

0

71

Cub Cadet 711-3318

Hinge Pin

$

$

Not available

72

Cub Cadet 731-3131

Deflector Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, Qty 8

0

73

Cub Cadet 754-3079

V-Belt
(Superseded to 954-3079)

$134.99

$

Usually ships in 3-6 days

0
