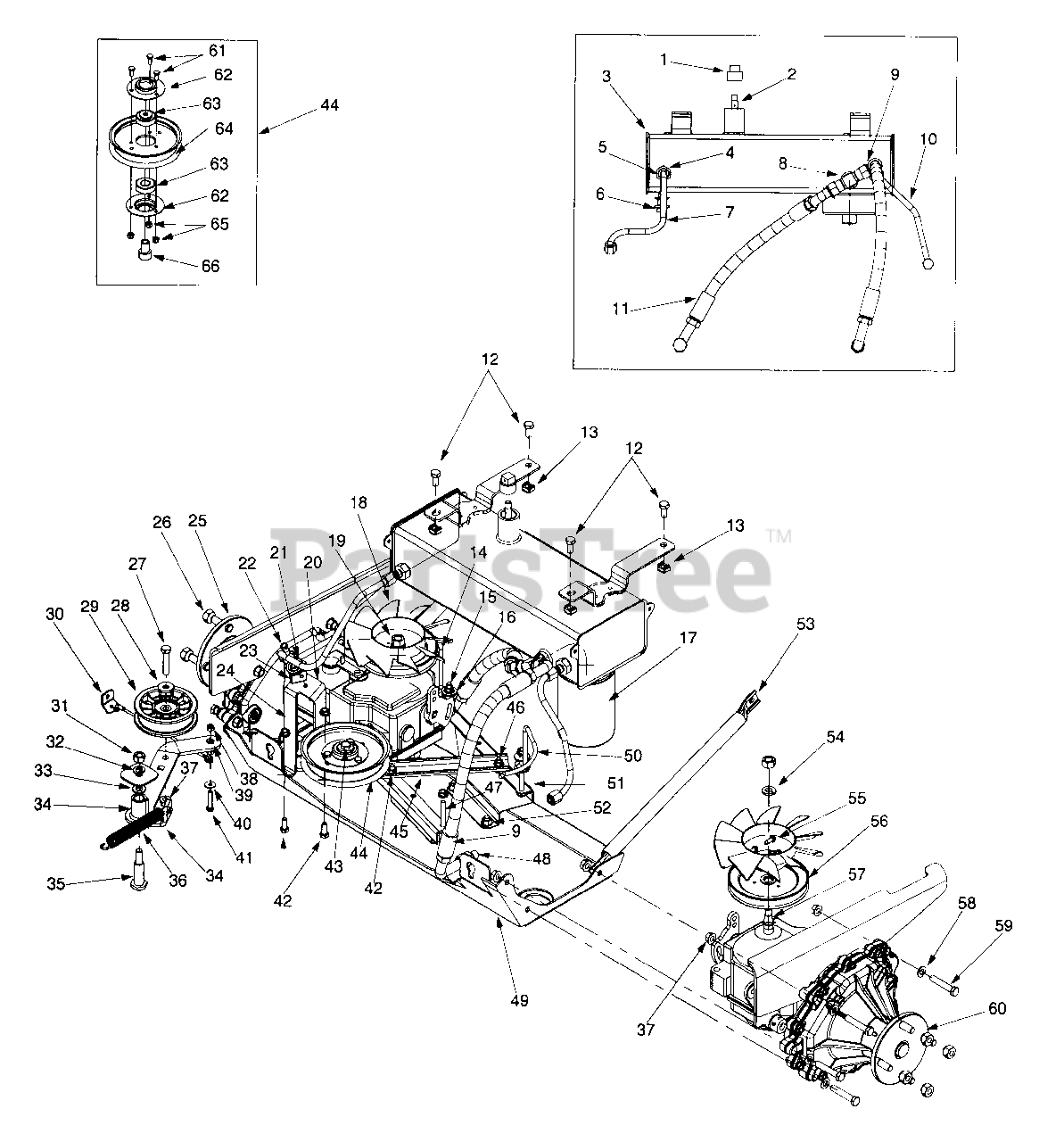

Z48 (53BA1B5M100) - Cub Cadet 48" Zero-Turn Mower (1999) Hydraulic Drive, Lines And Filters Parts Diagram

48" Zero-Turn Mower

Hydraulic Drive, Lines And Filters Parts Diagram

  • Title

1

Cub Cadet 737-3069

Pipe Plug

$

$

Not available

2

Cub Cadet 737-3070A

Pipe Dipstick

$

$

Not available

3

Cub Cadet 603-0639

Hydraulic Tank Assembly

Variations

603-0639-0637

Cub Cadet 603-0639-0637

TANK ASSEMBLY-HYDRAULI - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 727-3116

Connection Fitting

$

$

Not available

5

Cub Cadet 721-0223

Seal
(Superseded to 921-0223)

$

$

Not available

6

Cub Cadet 738-0940

Drain Plug

$

$

Not available

7

Cub Cadet 727-3120

Inlet Tube LH

$

$

Not available

8

Cub Cadet 727-3155

Tee Fitting

$

$

Not available

9

Cub Cadet 727-3154

Outlet Hose RH

$

$

Not available

10

Cub Cadet 727-3121

Inlet Tube RH

$

$

Not available

11

Cub Cadet 727-3153

Outlet Hose LH

$

$

Not available

12

Cub Cadet 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 712-0455

Retainer Nut 3/8-16

$

$

Not available

14

Cub Cadet 747-3360

Belt Retainer Rod RH

$

$

Not available

15

Cub Cadet 710-0378

Hex Cap Screw 5/16-18 x 2.5

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-3089

Flat Washer 5/16

$

$

Not available

17

Cub Cadet 723-3071

Filter Element

$68.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 731-1449A

Fan Blade
(Superseded to 931-1449A)

$37.99

$

In Stock, only 2 left!

0

19

Cub Cadet 712-0333

Hex Nut 1/2-20
(Superseded to 912-0333)

$

$

Not available

20

Cub Cadet 703-3168

Mounting Pulley Bracket

$

$

Not available

21

Cub Cadet 756-0625

Roller Cable

$9.99

$

In Stock, Qty 5

0

22

Cub Cadet 738-0924

Hex Shoulder Screw 1/4-28 x .375
(Superseded to 738-0924A)

$7.49

$

In Stock, only 1 left!

0

23

Cub Cadet 703-3169

Retainer Cable Bracket

$

$

Not available

24

Cub Cadet 712-0117

Lock Nut 1/4-28
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet 618-3165

Complete Transmission Assembly LH

$

$

Currently unavailable

26

Cub Cadet 712-3050

Lug Nut

$10.99

$

In Stock, Qty 18

0

27

Cub Cadet 710-0347

Hex Cap Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.99

$

In Stock, Qty 10

0

29

Cub Cadet 756-0627

Flat Idler Pulley 3.5 OD
(Superseded to 756-0627D)

$32.99

$

In Stock, Qty 20+

0

30

Cub Cadet 703-3174

Mounting Bracket Cable

$

$

Not available

31

Cub Cadet 712-3019

Hex Nut 7/16-14

$7.49

$

In Stock, Qty 6

0

32

Cub Cadet 736-0171

Lock Washer 7/16

$4.99

$

In Stock, only 4 left!

0

33

Cub Cadet 736-3015

Flat Washer .469 ID x .875 OD
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 14

0

34

Cub Cadet 603-0377A

Idler Arm Assembly

Variations

603-0377A-0637

Cub Cadet 603-0377A-0637

IDLER ARM ASSEMBLY W/B(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

35

Cub Cadet 603-0102

Shoulder Screw

$

$

Not available

36

Cub Cadet 732-0478

Extension Spring 6.12 Lg
(Superseded to 932-0478)

$13.99

$

In Stock, only 4 left!

0

37

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

38

Cub Cadet 712-0138

Hex Nut 1/4-28

$7.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

40

Cub Cadet 736-0342

Flat Washer .283 ID x .75 OD

$7.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0428

Hex Cap Screw 1/4-28 x 1.25

$2.49

$

In Stock, only 1 left!

0

42

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 710-3011

Hex Cap Screw 3/8-16 x 2.25

$7.49

$

In Stock, Qty 7

0

44

Cub Cadet 603-0362

Idler Pulley Assembly 5.0"
(Superseded to 903-0362)

$

$

Not available

45

Cub Cadet 703-2888

idler Bracket

Variations

703-2888-0637

Cub Cadet 703-2888-0637

IDLER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-3103

Hex Cap Screw 5/16-18 x 2.0

$4.99

$

In Stock, Qty 12

0

48

Cub Cadet 727-3100

Connection Fitting 1/2 x 3/8
(Superseded to 01002606)

$

$

Not available

49

Cub Cadet 603-0358B

Skid Plate Assembly
(Superseded to 603-0358B-0637)

Variations

603-0358B-0637

Cub Cadet 603-0358B-0637

PLATE ASY-SKID - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 747-3361

Belt Rod LH

$

$

Not available

51

Cub Cadet 603-0450

Support Pump Assembly
(Superseded to 603-0450-0637)

Variations

603-0450-0637

Cub Cadet 603-0450-0637

ASM: SUPPORT PUMP - POWDER BLACK (0637)

$

$

Not available

$

$

52

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 749-3040

Frame Strut

Variations

749-3040-0498

Cub Cadet 749-3040-0498

USE 749-3040-0637 STRUT:FRM - OLD CUB YELLOW (0498)

$

$

Not available

749-3040-0637

Cub Cadet 749-3040-0637

STRUT:FRM - POWDER BLACK (0637)

$

$

Not available

$

$

54

Cub Cadet 736-0921

Lock Washer 1/2

$4.99

$

In Stock, Qty 9

0

55

Cub Cadet 710-1189

Hex Washer Screw #12-24 x .625

$

$

Not available

56

Cub Cadet 756-0974

Transmission Pulley

$

$

Not available

57

Cub Cadet 732-0729

Wire Ring

$5.49

$

In Stock, Qty 6

0

58

Cub Cadet 736-0185

Flat Washer

$4.49

$

In Stock, only 3 left!

0

59

Cub Cadet 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.99

$

In Stock, Qty 19

0

60

Cub Cadet 618-3164

Complete Tranmission Assembly RH

$

$

Currently unavailable

61

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 703-2907

Bearing Cup

$

$

Not available

63

Cub Cadet 741-0600

Ball Bearing
(Superseded to 941-0600)

$26.99

$

In Stock, Qty 20+

0

64

Cub Cadet 756-3085

Idler Pulley 5.0"

$

$

Not available

65

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, only 2 left!

0

66

Cub Cadet 750-3176

Idler Spacer

$

$

Not available
