Z54 (53AC385K100) - Cub Cadet 54" Zero-Turn Mower 20HP Oil Pan And Lubrication Parts Diagram

54" Zero-Turn Mower

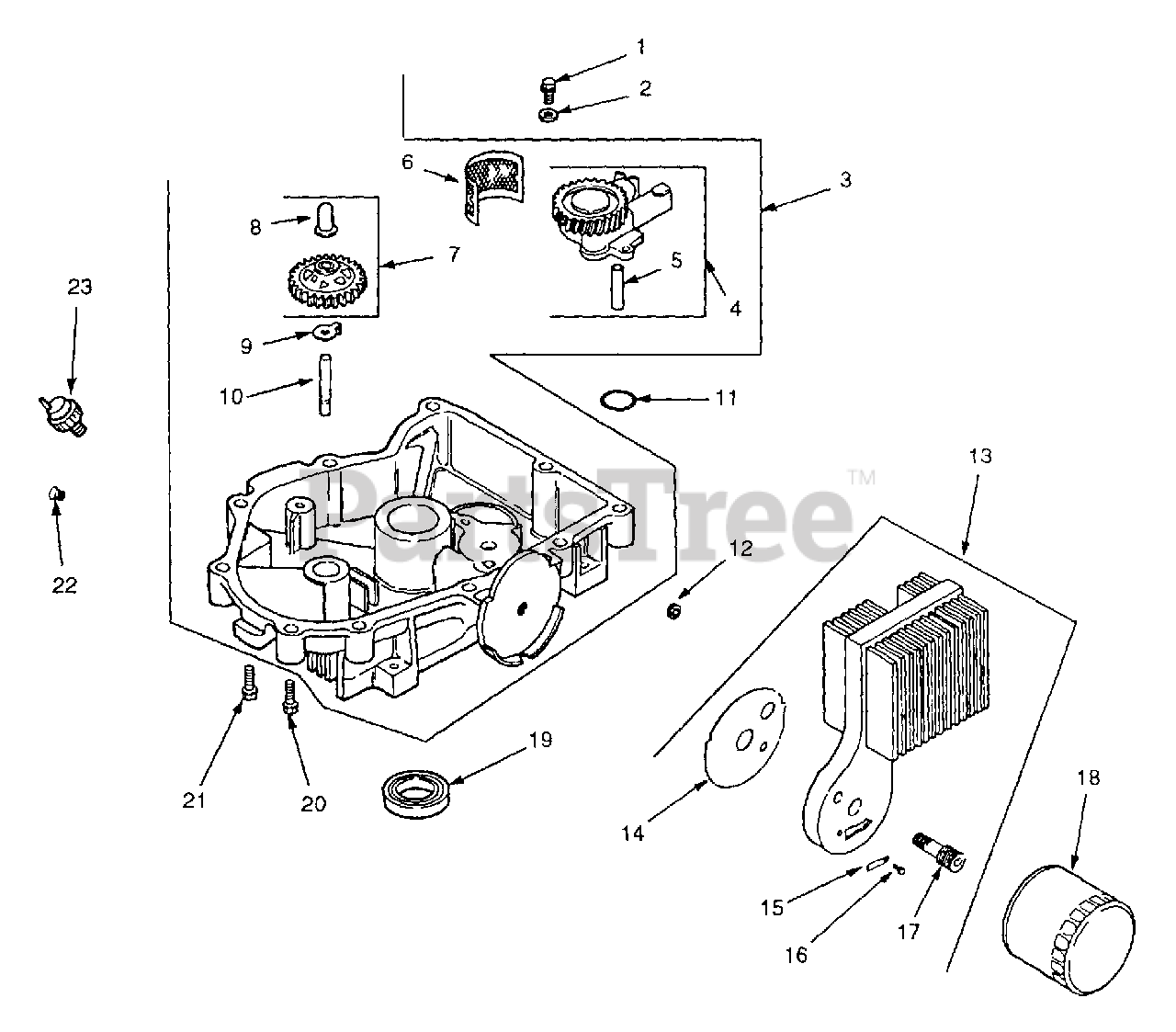

20HP Oil Pan And Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-M-0645025

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-M-645025-S)

$3.49

$

In Stock, Qty 17

0

2

Cub Cadet KH-M-631005

Washer, 6mm

$

$

Not available

3

Cub Cadet KH-24-199-07

Pan Ass'y, Oil
(Superseded to KH-24-199-35-S)

Note: (Incl. 4 thru 10)

$337.99

$

In Stock, only 1 left!

0

4

Cub Cadet KH-24-393-08

Oil Pump Ass'y
(Superseded to KH-24-393-53-S)

Note: (Incl 5)

$

$

Not available

5

Cub Cadet KH-24-123-05

Tube, Oil Pickup
(Superseded to KH-24-381-11-S)

$

$

Not available

6

Cub Cadet KH-25-162-07

Screen, Oil

$

$

Not available

7

Cub Cadet KH-24-043-12

Gear Kit, Governor w/Pin

Note: (Incl. 8)

$

$

Not available

8

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

9

Cub Cadet KH-52-448-02

Tab, Locking
(Superseded to KH-24-448-01-S)

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

11

Cub Cadet KH-24-153-08

O-Ring

$

$

Not available

12

Cub Cadet KH-X-75-32

Plug, Hex Cntrsk. 3/8
(Superseded to KH-25-139-62-S)

$3.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-755-52

Oil Cooler Kit

Note: (Incl. 14 thru 17)

$

$

Not available

14

Cub Cadet KH-24-041-29

Gasket, Oil Filter Adapter
(Superseded to KH-24-041-88-S)

$5.49

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-402-02

Reed, Oil Relief

$

$

Not available

16

Cub Cadet KH-M-0448010

Screw, Hex Flange, M4 x 0.7 x 10

$

$

Currently unavailable

17

Cub Cadet KH-24-136-03

Nipple, Oil Filter
(Superseded to KH-28-136-01-S)

$90.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-12-050-01

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-52-032-08

Seal, Oil (PTO End)
(Superseded to KH-25-032-06-S)

$13.99

$

In Stock, Qty 20+

0

20

Cub Cadet KH-24-086-17

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$3.49

$

In Stock, Qty 20+

0

21

Cub Cadet KH-24-086-16

Screw, Hex Flange, M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-52-139-02

Plug, Hex, 3/8

$

$

Not available

23

Cub Cadet KH-52-099-06

Switch, Oil Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 20+

0
