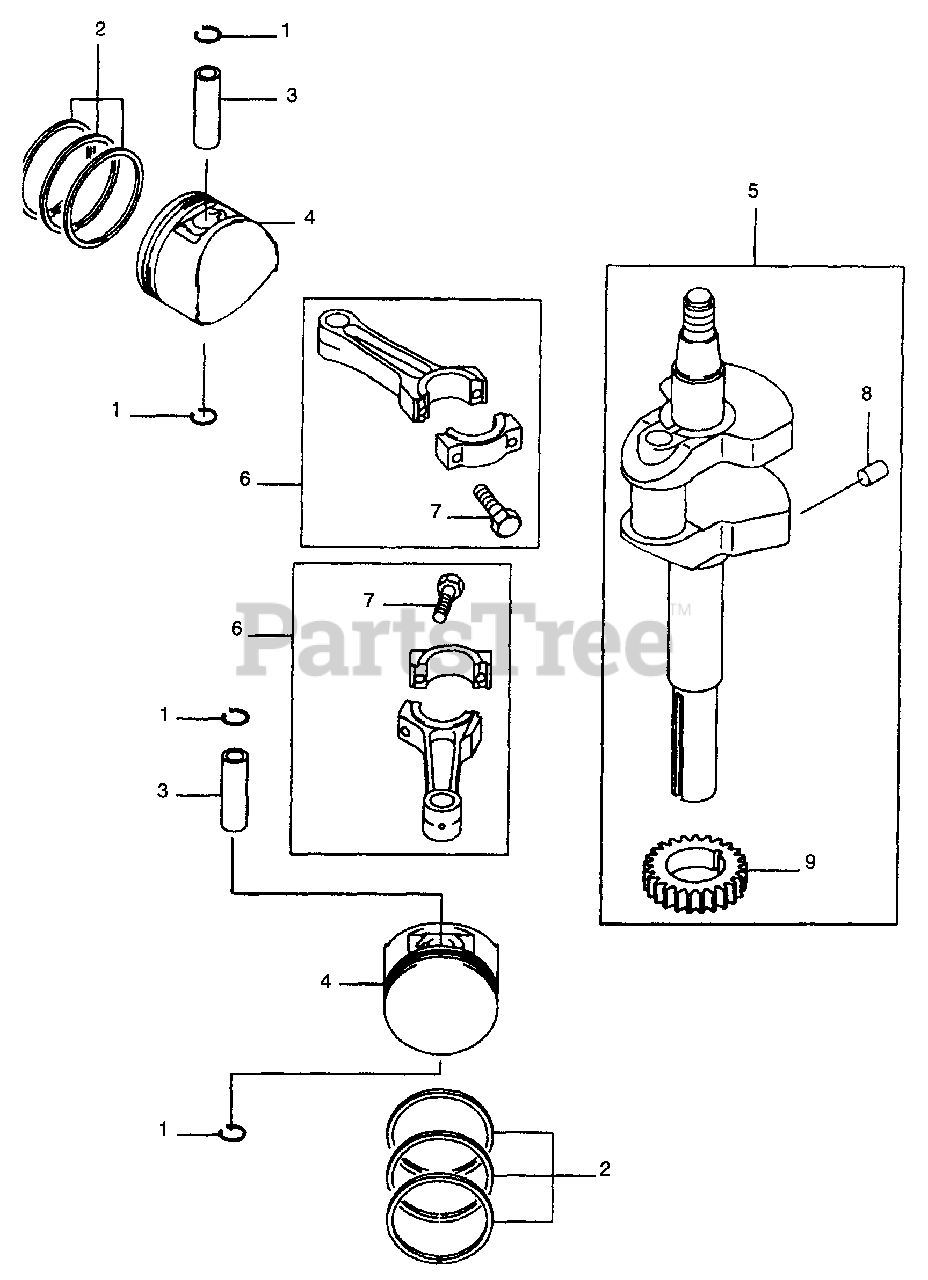

Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower 18 HP Piston/Crankshaft Parts Diagram

54" Zero-Turn Mower

18 HP Piston/Crankshaft Parts Diagram

  • Title

1

Cub Cadet KM-92036-021

Snap Ring

$0.99

$

In Stock, Qty 12

0

2

Cub Cadet KM-13008-6016

Set Piston Ring

$37.99

$

In Stock, only 2 left!

0

Cub Cadet KM-13025-6001

Set Piston Ring 0.25

$

$

Not available

Cub Cadet KM-13025-6002

Set Piston Ring 0.50

$38.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-13002-1013

Piston Pin

$7.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-13001-2123

Engine Piston

$54.99

$

Usually ships in 2-5 days

0

Cub Cadet KM-13029-2090

Engine Piston 0.25

$41.99

$

In Stock, only 2 left!

0

Cub Cadet KM-13029-2091

Engine Piston 0.50

$58.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-49119-2130

Crankshaft Ass'y

$430.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-13251-6022

Connecting Rod Assy
(Superseded to KM-13251-2086)

$

$

Not available

Cub Cadet KM-13251-6026

Connecting Rod Assy

$

$

Not available

7

Cub Cadet KM-92002-2053

Bolt

$6.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-551A0408

Dowel Pin

$0.99

$

In Stock, only 3 left!

0

9

Cub Cadet KM-59051-2112

Spur Gear

$40.99

$

Usually ships in 2-5 days

0
