Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower 18 HP Valve/Camshaft Parts Diagram

54" Zero-Turn Mower

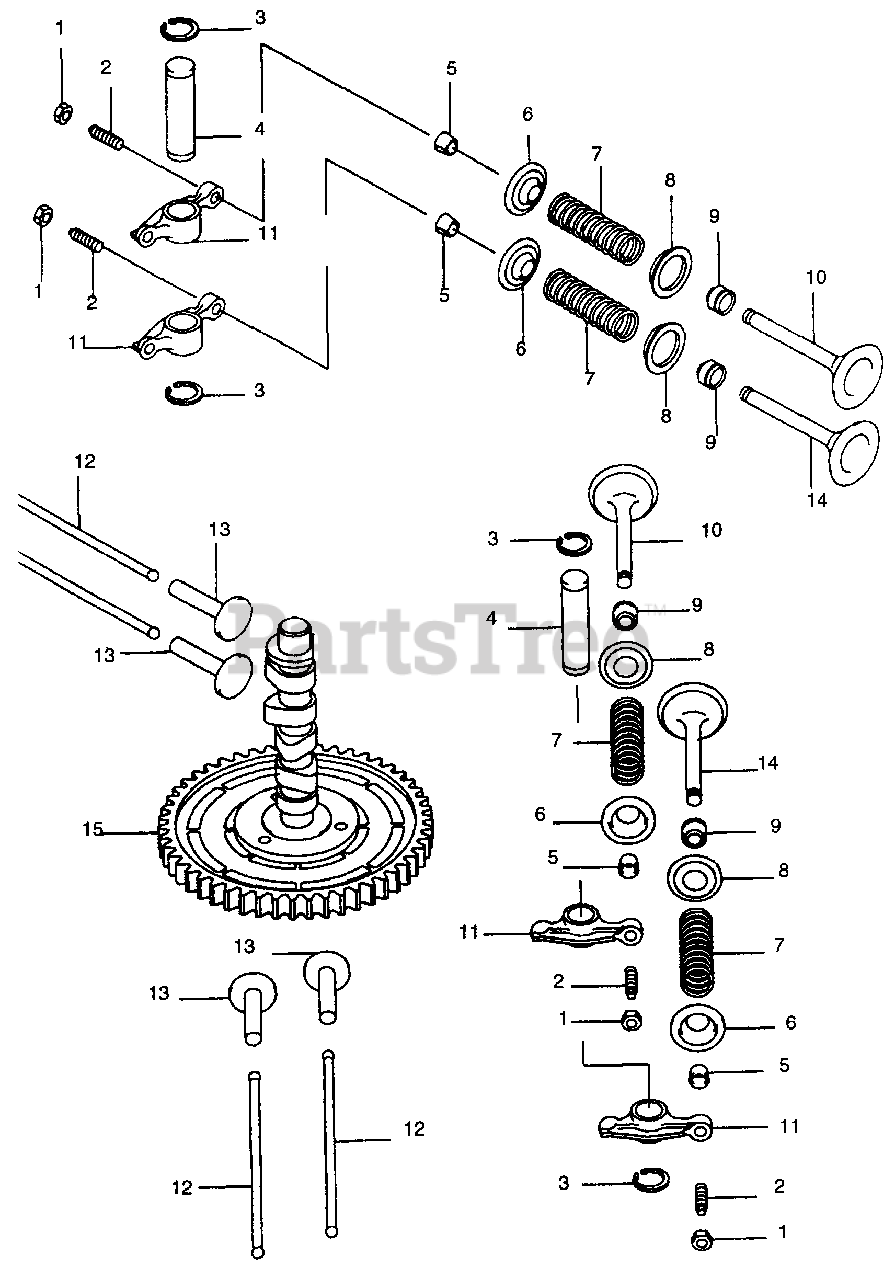

18 HP Valve/Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-92015-1137

Nut

$1.49

$

In Stock, only 2 left!

0

2

Cub Cadet KM-92009-1109

Screw

$2.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-480J1200

CirClip

$0.99

$

In Stock, Qty 5

0

4

Cub Cadet KM-12020-2059

Rocker Shaft

$5.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-12009-2067

Retainer Valve Spring

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet KM-49078-2071

Engine Valve Spring

$2.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-39108-2057

Retainer Spring

$0.99

$

In Stock, only 4 left!

0

9

Cub Cadet KM-92049-2109

Oil Seal

$5.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-12004-2106

Intake Valve
(Superseded to KM-12004-2116)

$24.99

$

In Stock, only 2 left!

0

11

Cub Cadet KM-12016-2056

Rocker Arm

$19.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-13116-2057

Push Rod

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet KM-12032-2064

Tappet

$11.99

$

In Stock, only 3 left!

0

14

Cub Cadet KM-12005-2094

Exhaust Valve

$30.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KU-49118-2063

Camshaft-Comp

$

$

Currently unavailable
