Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower 54" Deck Assembly Parts Diagram

54" Zero-Turn Mower

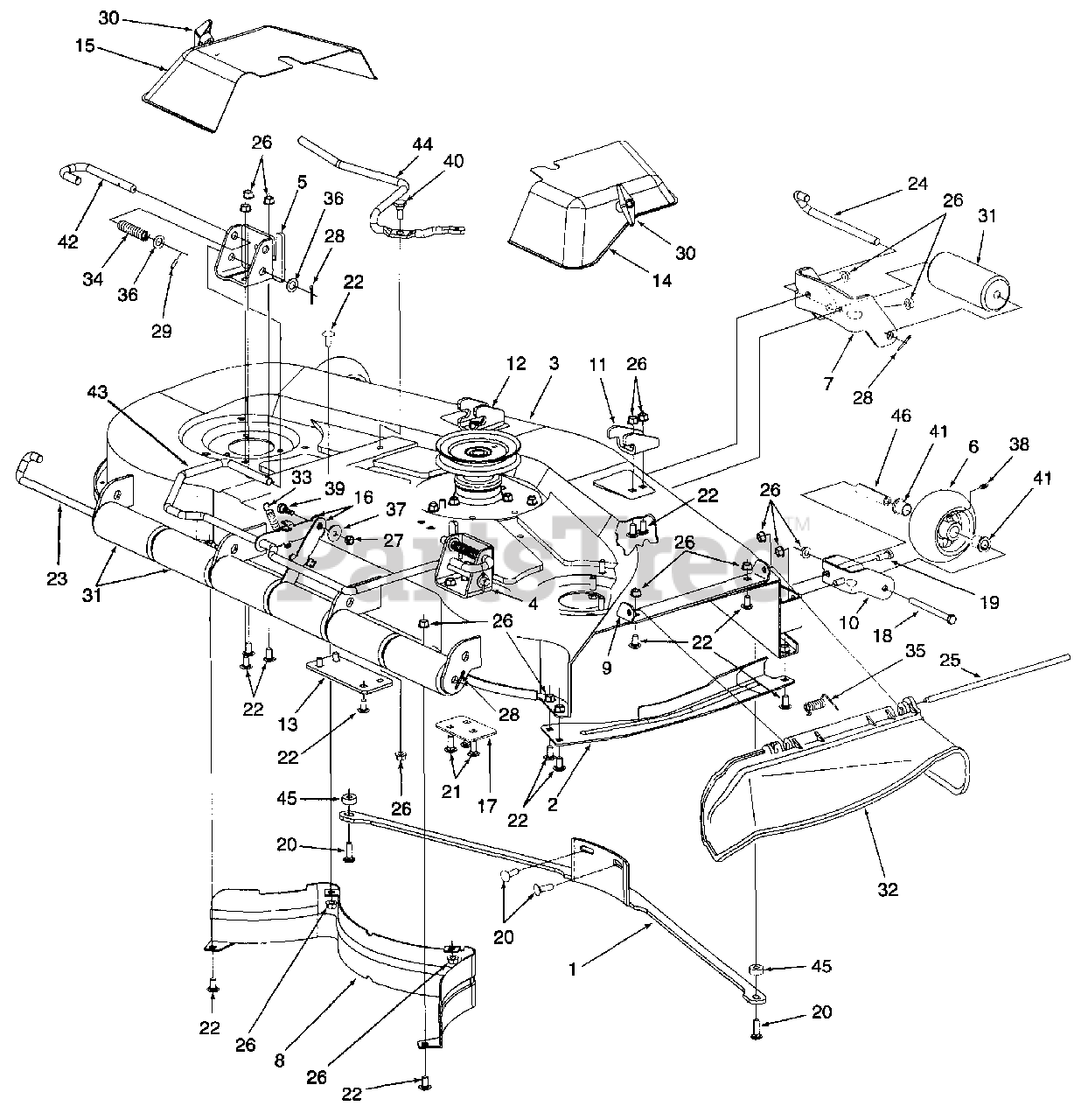

54" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0144

Bar, 54" Front

Variations

Cub Cadet 603-0144-0498

BAR-54" FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0144-0648

BAR-54" FRONT - TECH GRAY (0648)

$

$

Not available

$

$

2

Cub Cadet 603-0149

Guard, Finger
(Superseded to 703-3511B-0637)

Note: Code 0498

Variations

Cub Cadet 603-0149-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$69.99

$

In Stock, Qty 20+

0

Cub Cadet 603-0149-0648

Finger Guard, Black - TECH GRAY (0648)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

3

Cub Cadet 603-0325

Housing Ass'y, 54" Mower Deck

Note: Code 0498

Variations

Cub Cadet 603-0325-0498

54" MOWER DECK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0325-0637

54" MOWER DECK - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 777-1426

Label, Danger, Top Rt. of Deck
(Superseded to 977-1426)

$

$

Not available

Cub Cadet 777-9192B

Label, Deck Safety, Top Lt. of Deck
(Superseded to 777S30018)

$8.49

$

In Stock, only 1 left!

0

4

Cub Cadet 603-0350

Bracket, Rear Hanger RH

Note: Code 0498

Variations

Cub Cadet 603-0350-0498

USE 603-0350-0637 BRACKET. HA - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0350-0637

BRACKET. HANGER RH RR - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-0351

Bracket, Rear Hanger LH

Note: Code 0498

Variations

Cub Cadet 603-0351-0498

BRACKET. HANGER LH RR - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0351-0637

HANGER BRACKET (LH) RR - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 634-3159

Wheel Ass'y, 5" Deck

Note: [Includes Ref. Nos. 38 & 41 (Qty. 2)]

$34.99

$

In Stock, Qty 20+

0

7

Cub Cadet 703-2091A

Bracket, Front Roller

Note: Code 0498

Variations

Cub Cadet 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2093

Baffle, Rear Inner
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, Qty 12

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$96.99

$

In Stock, Qty 12

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, Qty 12

0

$89.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-2392

Bracket, Chute Mtg.
(Superseded to 631-04070C)

Variations

Cub Cadet 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, Qty 20+

0

Cub Cadet 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, Qty 20+

0

$122.99

$

In Stock, Qty 20+

0

10

Cub Cadet 703-2410

Bracket, Deck Wheel

Note: Code 0498

Variations

Cub Cadet 703-2410-0498

Deck Wheel Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2410-0637

BRACKET-DECK WHEEL PWDR BLK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2410-0648

BRACKET-DECK - TECH GRAY (0648)

$

$

Not available

$

$

11

Cub Cadet 703-2430

Bracket, Front Deck - RH

Note: Code 0498

Variations

Cub Cadet 703-2430-0498

Front End Deck Bracket, RH - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

Cub Cadet 703-2430-0648

FRONT END DECK BRACKET (RH) - TECH GRAY (0648)

$

$

Not available

$

$

12

Cub Cadet 703-2767

Bracket, Front Deck - LH

Note: Code 0498

Variations

Cub Cadet 703-2767-0498

BRACKET DECK FRT (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2767-0637

BRACKET DECK FRT (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-2791

Plate, Idler Support

Variations

Cub Cadet 703-2791-0637

PLATE SUPT. IDLER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 703-2816

Cover, Belt - RH

Note: Code 0498

Variations

Cub Cadet 703-2816-0498

COVER:BELT:RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2816-0637

BELT COVER (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 703-2817

Cover, Belt LH

Note: Code 0498

Variations

Cub Cadet 703-2817-0498

USE 703-2817-0637 COVER:BELT: - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2817-0637

COVER:BELT:LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2817-0648

USE 703-2817-0637 COVER:BELT: - TECH GRAY (0648)

$

$

Not available

$

$

Cub Cadet 777-5607

Label, Belt Install. - Under Cover

$

$

Not available

16

Cub Cadet 703-2929

Link, Deck Support

Note: Code 0498

Variations

Cub Cadet 703-2929-0498

DECK SUPPORT LINK - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2929-0637

LINK-DECK SUPPORT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

17

Cub Cadet 703-2988

Plate, Support

Variations

Cub Cadet 703-2988-0637

SUPPORT PLATE (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 710-0944

Screw, Hex Cap, 3/8-16 x 4.25 GR5

$10.99

$

In Stock, Qty 16

0

19

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 11

0

20

Cub Cadet 710-3034

Bolt, Carriage, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 7

0

21

Cub Cadet 710-3168

Bolt, Carriage, 3/8-16 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75 GR5

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 711-1103

Pin, Roller

$

$

Not available

24

Cub Cadet 711-3314

Pin, Roller, 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 20+

0

25

Cub Cadet 711-3318

Hinge Pin

$

$

Not available

26

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 714-0115

Pin, Cotter 1/8 x 1.0

$3.99

$

In Stock, only 1 left!

0

29

Cub Cadet 715-3003

Pin, Spirol Spring, 3/16 x 3/4

$6.99

$

In Stock, Qty 11

0

30

Cub Cadet 720-0241

Knob, Wingnut, 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

31

Cub Cadet 731-3005

Roller, Front & Rear

$28.99

$

In Stock, Qty 20+

0

32

Cub Cadet 731-3131

Deflector, Plastic Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, Qty 8

0

Cub Cadet 777-1584

Label, Danger Cut Finger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

33

Cub Cadet 732-0395

Spring, Extension
(Superseded to 932-0395)

$

$

Not available

34

Cub Cadet 732-0802

Spring, Compression

$4.49

$

In Stock, only 4 left!

0

35

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$11.99

$

In Stock, Qty 5

0

36

Cub Cadet 736-0160

Washer, Flat, .536 x .93 x .05

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 736-0231

Washer, Flat, .344 x 1.125 x .12

$4.99

$

In Stock, only 4 left!

0

38

Cub Cadet 737-0280

Grease Fitting

$7.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 738-0296

Bolt, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 5

0

40

Cub Cadet 738-0380

Bolt, Shoulder, .50 x .267:3/8-16

$7.99

$

In Stock, Qty 13

0

41

Cub Cadet 741-0487A

Bearing, Flange
(Superseded to 741-0487C)

$7.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-3013

Pin, Mower Support

$22.99

$

In Stock, Qty 5

0

43

Cub Cadet 747-3297A

Rod, Deck Support

$

$

Not available

44

Cub Cadet 747-3306

Rod, Idler Spring Mtg

$

$

Not available

45

Cub Cadet 750-3119

Spacer, .406 x 1.0 x .38

$11.99

$

In Stock, Qty 20+

0

46

Cub Cadet 750-3193

Spacer, Wheel

$18.99

$

In Stock, Qty 20+

0
