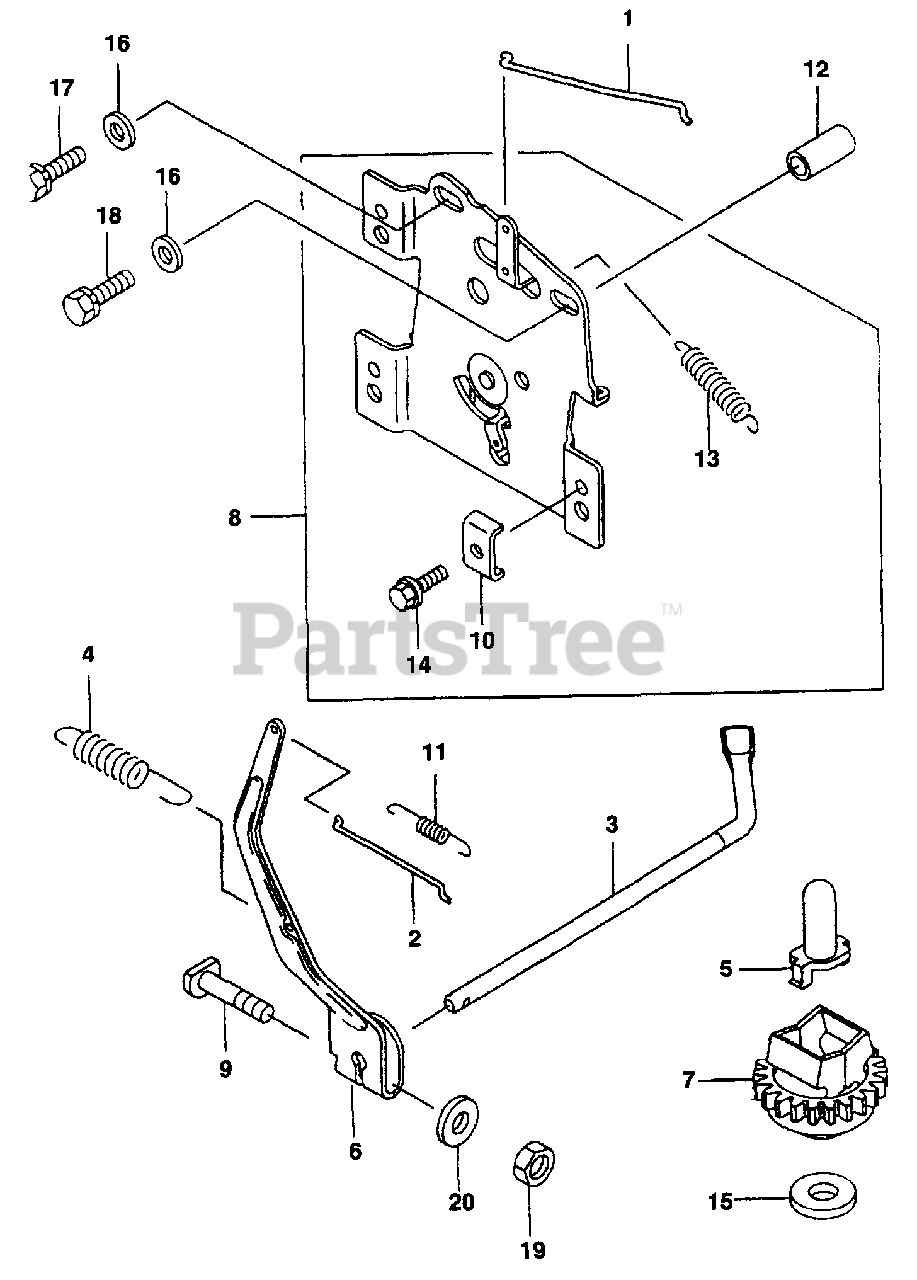

Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower Equipment Control Parts Diagram

54" Zero-Turn Mower

Equipment Control Parts Diagram

  • Title

1

Cub Cadet KM-16169-2121

Choke Link

$1.99

$

In Stock, Qty 13

0

2

Cub Cadet KM-16171-2057

Link

$1.49

$

In Stock, Qty 18

0

3

Cub Cadet KM-39003-2064

Pivot Arm

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet KM-39129-2060

Governor Spring

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-42036-2051

Sleeve

$

$

Not available

6

Cub Cadet KM-49103-2108

Governor Arm

$

$

Not available

7

Cub Cadet KM-49110-2073

Governor Ass'y

$9.99

$

In Stock, Qty 9

0

8

Cub Cadet KM-49113-2153

Control Panel Comp

$

$

Not available

9

Cub Cadet KM-92002-2269

Bolt

$2.49

$

In Stock, only 3 left!

0

10

Cub Cadet KM-92037-2209

Clamp

$1.49

$

In Stock, only 4 left!

0

11

Cub Cadet KM-92081-2192

Spring

$2.49

$

In Stock, Qty 17

0

12

Cub Cadet KM-92143-2200

Collar, 6.8 x 10 x 20.5

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet KM-92144-2052

Spring

$10.99

$

In Stock, Qty 7

0

14

Cub Cadet KM-92150-2182

Bolt, 5 x 18

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92200-2036

Washer

$1.49

$

In Stock, Qty 6

0

16

Cub Cadet KM-92200-2070

Washer

$1.49

$

In Stock, Qty 5

0

17

Cub Cadet KM-180B0616

WS Bolt Upset

$

$

Not available

18

Cub Cadet KM-180B0635

WS Bolt Upset

$

$

Not available

19

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-411B0600

Plain Washer
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 11

0
