ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 406294345 - 408644345) (Rev A) (2020) Ground Drive Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

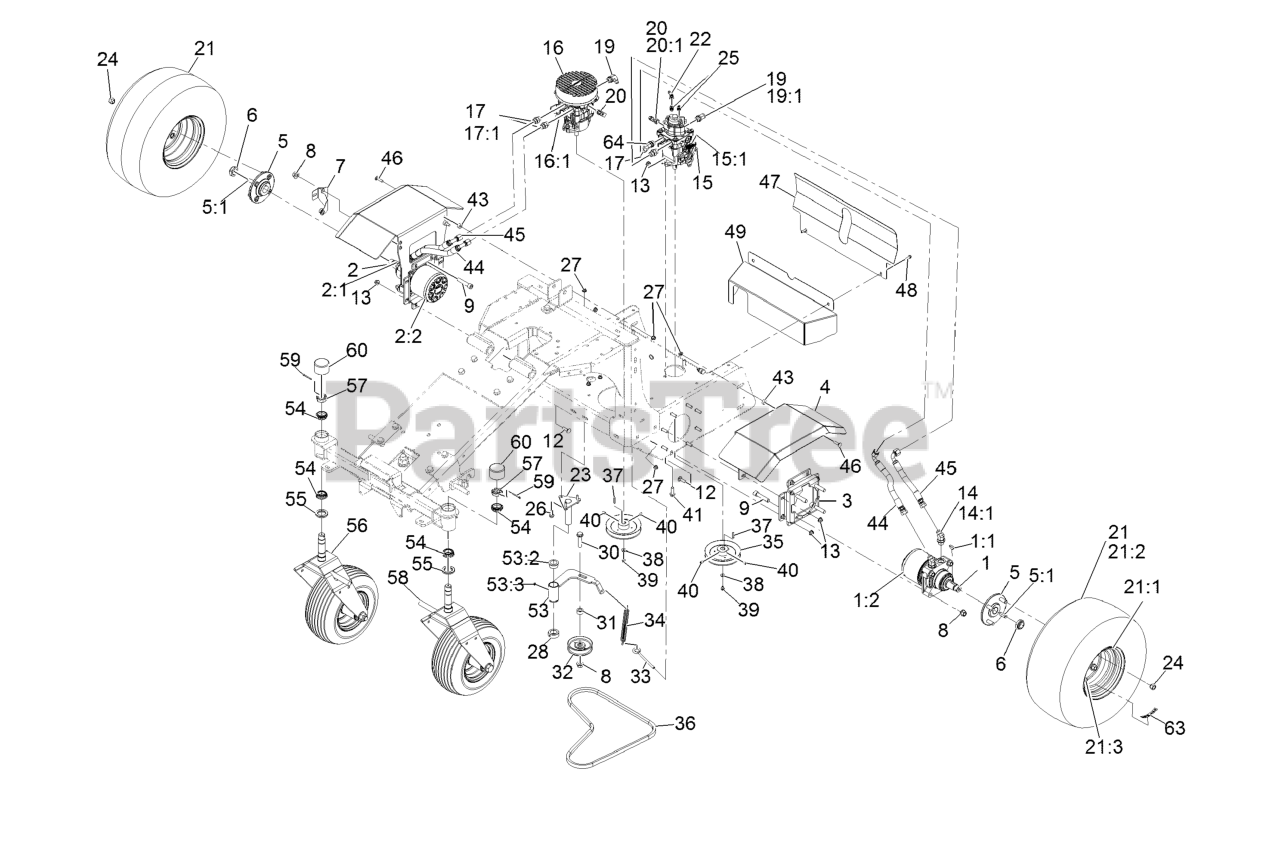

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 135-7282

MOTOR-WHEEL, LH

$982.99

$

Usually ships in 3-6 days

0

1:1

Exmark 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

1:2

Exmark 103-6994

SEAL KIT

$397.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7283

MOTOR-WHEEL, RH

$982.99

$

Usually ships in 3-6 days

0

2:1

Exmark 3257-42

KEY-WOODRUFF

$7.49

$

In Stock, Qty 20+

0

2:2

Exmark 103-6994

SEAL KIT

$397.99

$

Usually ships in 3-6 days

0

3

Exmark 142-0270-05

X-REF 142-0270-05

$70.99

$

Usually ships in 3-6 days

0

4

Exmark 142-0307-01

FENDER-AE

$177.99

$

Usually ships in 3-6 days

0

5

Exmark 135-7525

HUB-WHEEL
(Superseded to 143-6791)

$71.99

$

In Stock, only 1 left!

0

5:1

Exmark 135-7526

STUD-1/2-20 X 1.55

$5.99

$

Usually ships in 3-6 days

0

6

Exmark 116-1399

LOCKNUT

$15.99

$

In Stock, Qty 10

0

7

Exmark 135-5574

BRACKET-HOPPER, SPEEDOMET

$5.99

$

Usually ships in 3-6 days

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$2.49

$

In Stock, Qty 20+

0

9

Exmark 3274-71

Screw-HSH

$14.99

$

Usually ships in 3-6 days

0

12

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$2.49

$

In Stock, Qty 20+

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 135-5696

FITTING-ELBOW, 45 DEG

$6.99

$

In Stock, only 3 left!

0

14:1

Exmark 237-80

O-RING

$7.49

$

In Stock, Qty 7

0

15

Exmark 135-9024

PUMP-HYD,LH,W/ AUX,ZPLUG,

$1424.99

$

Usually ships in 3-6 days

0

15:1

Exmark 115-8307

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

16

Exmark 135-9026

PUMP-HYD, RH,W/ FAN ZPLUG

$1117.99

$

Usually ships in 3-6 days

0

16:1

Exmark 115-8307

SPRING-EXTENSION

$26.99

$

Usually ships in 3-6 days

0

17

Exmark 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

17:1

Exmark 237-79

O-RING

$6.49

$

In Stock, Qty 20+

0

19

Exmark 353-537

FITTING-ELBOW, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

19:1

Exmark 237-79

O-RING

Note: Not illustrated

$6.49

$

In Stock, Qty 20+

0

20

Exmark 103-1802

FITTING-ELBOW, 90 DEG

$27.99

$

In Stock, only 2 left!

0

20:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

21

Exmark 135-5968

WHEEL AND TIRE ASM
(Superseded to 142-5507)

$267.99

$

Usually ships in 3-6 days

0

21:1

Exmark 135-5969

Rim-8 X 7, Black

$91.99

$

Usually ships in 3-6 days

0

21:2

Exmark 120-6466

TIRE

$143.99

$

In Stock, only 2 left!

0

21:3

Exmark 232-27

Stem-Valve

$

$

Not available

22

Exmark 135-9114

4MJIC-4FJIC 90 DEG SWIVEL

$7.49

$

Usually ships in 3-6 days

0

23

Exmark 135-9488-05

PIVOT-IDLER

$67.99

$

Usually ships in 3-6 days

0

24

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 353-545

FITTING-STRAIGHT

$28.99

$

Usually ships in 3-6 days

0

26

Exmark 3234-17

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

27

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Exmark 135-5382

Collar

$10.99

$

Usually ships in 3-6 days

0

30

Exmark 3234-46

Screw-HHF

$15.99

$

In Stock, only 1 left!

0

31

Exmark 116-2959

Spacer

$8.99

$

In Stock, only 1 left!

0

32

Exmark 135-5662

PULLEY-IDLER, FLAT

$34.99

$

In Stock, only 1 left!

0

33

Exmark 142-0419

5/16-18 X 6 EYE BOLT W/ 5

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 135-5780

SPRING-EXTENSION

$30.99

$

In Stock, Qty 6

0

35

Exmark 135-9067

PULLEY, DRIVE, 5-5/8" 17M

$52.99

$

Usually ships in 3-6 days

0

36

Exmark 135-9075

B54 BELT 2011+ ZPLUG (16C

$95.99

$

In Stock, only 2 left!

0

37

Exmark 1-807272

KEY

$6.49

$

In Stock, Qty 20+

0

38

Exmark 135-6273

Washer

$1.99

$

Usually ships in 3-6 days

0

39

Exmark 81-1280

SCREW-HHF

$1.99

$

In Stock, only 2 left!

0

40

Exmark 3246-17

Setscrew-HSH

$1.49

$

In Stock, Qty 10

0

41

Exmark 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

43

Exmark 121-1759

SPACER

$2.99

$

Usually ships in 3-6 days

0

44

Exmark 142-3124

Hose ASM-HYD HP

$78.99

$

Usually ships in 3-6 days

0

45

Exmark 142-3123

Hose ASM-HYD HP

$78.99

$

Usually ships in 3-6 days

0

46

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

47

Exmark 142-0326-05

GUARD-PUMP

$59.99

$

Usually ships in 3-6 days

0

48

Exmark 120-4654

SCREW-HHF

$6.99

$

Usually ships in 3-6 days

0

49

Exmark 142-0320-05

KICK-TOE

$66.99

$

Usually ships in 3-6 days

0

53

Exmark 135-7281

ARM-IDLER, ASM

$146.99

$

Usually ships in 3-6 days

0

53:2

Exmark 256-132

BUSHING-FLANGE

$9.99

$

In Stock, only 1 left!

0

53:3

Exmark 302-63

FITTING-GREASE, ZERK

$3.49

$

In Stock, only 4 left!

0

54

Exmark 254-92

CONE-BEARING, OUTER

$20.99

$

In Stock, Qty 12

0

55

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 14

0

56

Caster ASM - RH

Note: Not serviced separately

$

$

Not available

57

Exmark 1-809082

NUT-SHH

$15.99

$

In Stock, only 3 left!

0

58

Caster ASM - LH

Note: Not serviced separately

$

$

Not available

59

Exmark 135-6292

Pin-Cotter

$1.99

$

In Stock, only 3 left!

0

60

Exmark 135-5756

CAP-DUST, RUBBER

$3.99

$

In Stock, only 3 left!

0

63

Exmark 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.99

$

In Stock, Qty 11

0

64

Exmark AU218-5106

FITTING-ELB 90

$13.99

$

Usually ships in 3-6 days

0
