ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 406294345 - 408644345) (Rev A) (2020) Hopper Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

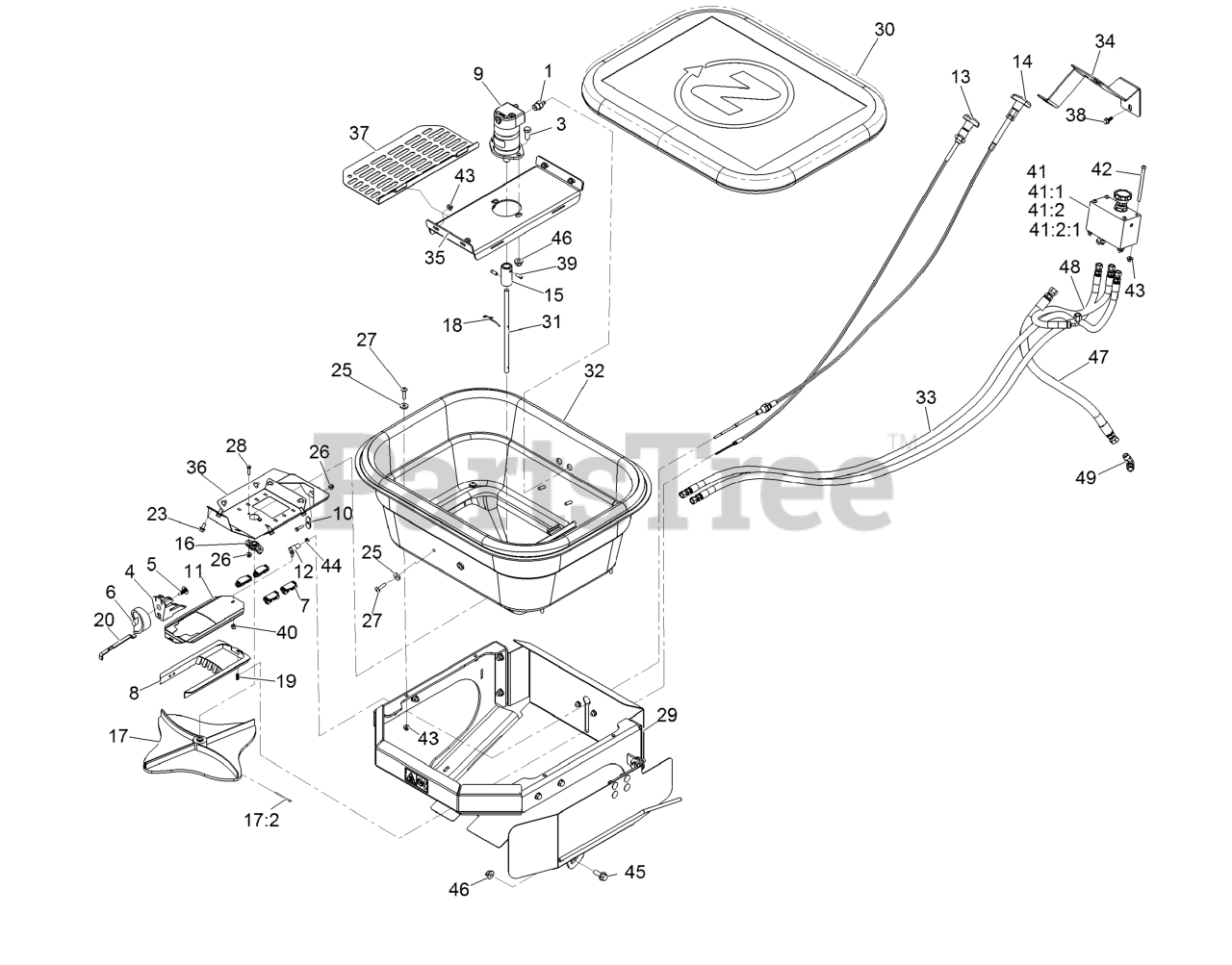

Hopper Assembly Parts Diagram

  • Title

1

Exmark 01-201-0780

DISCONTINUED

$7.99

$

Usually ships in 3-6 days

0

3

Exmark 126-0520

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Exmark 126-0985

MOUNT-DIAL
(Superseded to 142-3319)

$3.49

$

In Stock, Qty 20+

0

5

Exmark 126-0986

CLIP
(Superseded to 88-1080)

$10.99

$

In Stock, only 2 left!

0

6

Exmark 126-0988

DIAL
(Superseded to 142-3359)

$13.99

$

In Stock, only 3 left!

0

7

Exmark 126-0990

GUIDE-RATE, GATE
(Superseded to 142-3316)

$2.49

$

In Stock, Qty 20+

0

8

Exmark 126-0991

DIFFUSER

$41.99

$

Usually ships in 3-6 days

0

9

Exmark 135-5243

MOTOR-HYDRAULIC, SPREADER

$586.99

$

Usually ships in 3-6 days

0

10

Exmark 135-5569

RETAINER, CABLE

$2.49

$

In Stock, Qty 5

0

11

Exmark 135-5573

Slide-Door, Hopper

$13.99

$

In Stock, only 4 left!

0

12

Exmark 135-5682

BALL JOINT-SS

$59.99

$

In Stock, only 2 left!

0

13

Exmark 135-5931

CABLE-PUSH/PULL

$64.99

$

In Stock, Qty 18

0

14

Exmark 135-5935

CABLE-PUSH/PULL

$130.99

$

In Stock, only 2 left!

0

15

Exmark 135-5937

COUPLER-SS

$34.99

$

In Stock, only 2 left!

0

16

Exmark 135-5943

BEARING-FLANGE

$6.49

$

In Stock, Qty 7

0

17

Exmark 135-8488

SPINNER W/COTTER PIN

$41.99

$

In Stock, only 2 left!

0

17:2

Exmark 135-6340

PIN-COTTER

$2.49

$

In Stock, only 3 left!

0

18

Exmark 135-5957

WIRE-AGITATOR
(Superseded to 142-3666)

$4.99

$

In Stock, Qty 8

0

19

Exmark 135-5961

RETAINER-CABLE, WIRE

$5.49

$

In Stock, Qty 6

0

20

Exmark 135-5965

LINKAGE-GATE, RATE

$33.99

$

In Stock, only 3 left!

0

23

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

25

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

26

Exmark 135-6342

Nut-Hex Flange

$2.49

$

In Stock, only 4 left!

0

27

Exmark 135-6352

SCREW-PTH

$1.99

$

Usually ships in 3-6 days

0

28

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, only 2 left!

0

29

Hopper ASM

Note: Not serviced separately

$

$

Not available

30

Exmark 142-3083

COVER-HOPPER, SMALL

$60.99

$

Usually ships in 3-6 days

0

31

Exmark 135-8504

SHAFT, HOPPER, 120

$31.99

$

In Stock, only 3 left!

0

32

Exmark 135-8519

120 LBS HOPPER\N05-296-22

$482.99

$

Usually ships in 3-6 days

0

33

Exmark 142-3128

HOSE ASM-HYD HP

$97.99

$

Usually ships in 3-6 days

0

34

Exmark 142-3105-05

Bracket-Hopper Cable

$34.99

$

Usually ships in 3-6 days

0

35

Exmark 142-1987

PAN, HOPPER, 120

$99.99

$

Usually ships in 3-6 days

0

36

Exmark 142-1990

BASE PLATE, HOPPER, 120

$35.99

$

Usually ships in 3-6 days

0

37

Exmark 142-1995

SCREEN, HOPPER, 120

$34.99

$

Usually ships in 3-6 days

0

38

Exmark 137-3111

Screw-HHF 1/4-20 X 5/8

$1.49

$

Usually ships in 3-6 days

0

39

Exmark 3241-7

Screw-SQH

$4.49

$

In Stock, only 2 left!

0

40

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, only 3 left!

0

41

Exmark 142-4324

Manifold-Flow Control, Hopper
(Superseded to 142-8082)

$445.99

$

In Stock, only 1 left!

0

41:1

Exmark 01-201-0780

DISCONTINUED

$7.99

$

Usually ships in 3-6 days

0

41:2

Exmark 353-212

FITTING-ELBOW, 45 DEG

$27.99

$

Usually ships in 3-6 days

0

41:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

42

Exmark 135-6385

Screw-HSBH

$1.99

$

Usually ships in 3-6 days

0

43

Exmark 135-6108

Nut-Hex Flange

$1.99

$

Usually ships in 3-6 days

0

44

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 3 left!

0

45

Exmark 135-6208

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

46

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 15

0

47

Exmark 142-3120

HOSE ASM-HYD HP

$68.99

$

Usually ships in 3-6 days

0

48

Exmark 142-3118

HOSE ASM

$59.99

$

Usually ships in 3-6 days

0

49

Exmark 135-5680

FITTING-90 SWIVEL

$5.49

$

Usually ships in 3-6 days

0
