ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 406294345 - 408644345) (Rev A) (2020) Main Frame Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

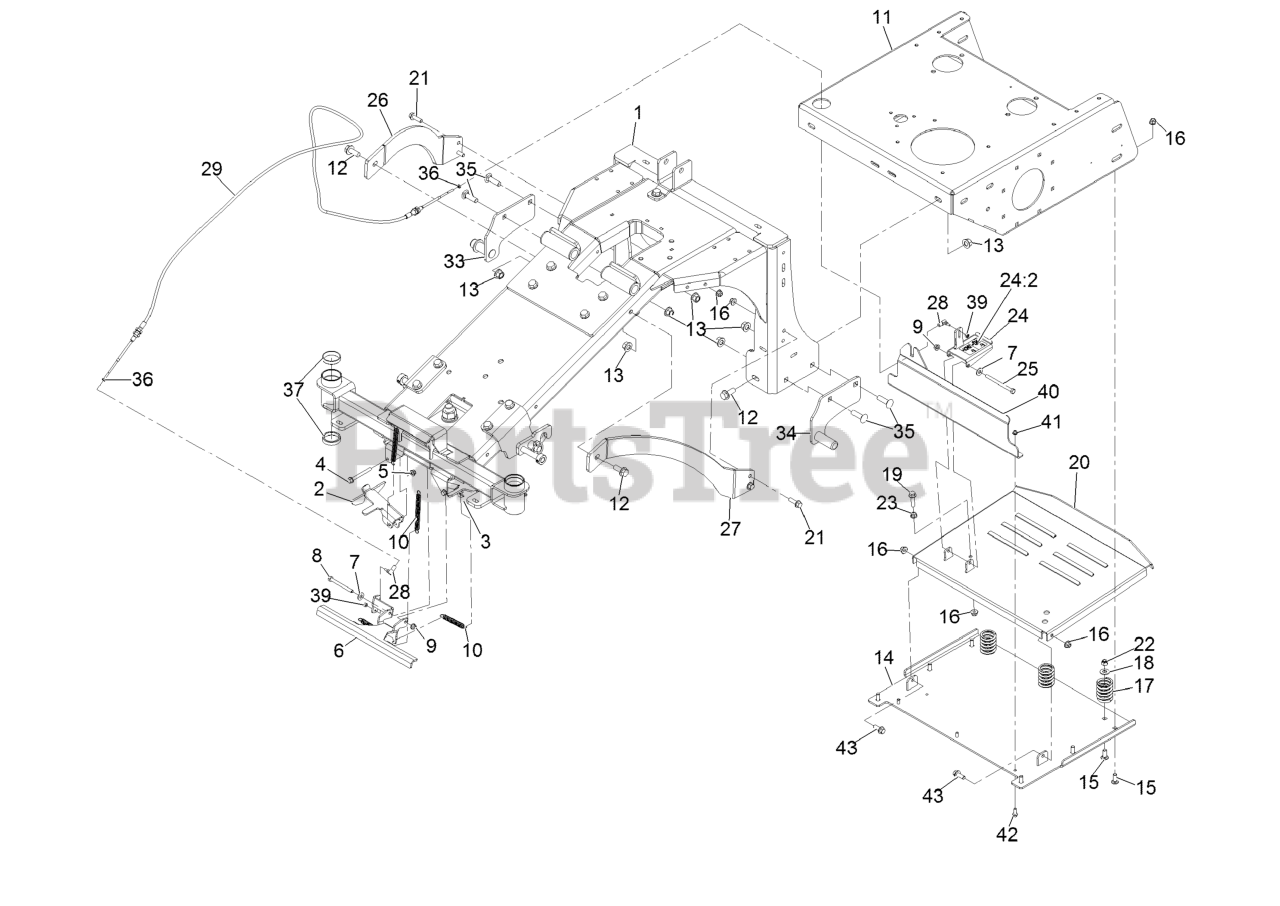

Main Frame Assembly Parts Diagram

  • Title

1

Front Frame ASM

Note: Not serviced separately

$

$

Not available

2

Exmark 135-9479

WING-CASTER RH

$51.99

$

Usually ships in 3-6 days

0

3

Exmark 135-9480

WING-CASTER LH

$51.99

$

Usually ships in 3-6 days

0

4

Exmark 135-6222

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 135-6109

Nut-Hex Flange

$1.99

$

In Stock, Qty 20+

0

6

Exmark 142-0280

ARM-BODY, LCS

$78.99

$

Usually ships in 3-6 days

0

7

Exmark 3256-56

Washer-Flat

$1.99

$

Usually ships in 3-6 days

0

8

Exmark 322-20

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 135-5652

SPRING-EXTENSION

$4.49

$

In Stock, only 2 left!

0

11

Exmark 142-0283-05

REAR FRAME ASM

$508.99

$

Usually ships in 3-6 days

0

12

Exmark 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0

13

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

14

Exmark 142-0291-05

FRAME BASE

$136.99

$

Usually ships in 3-6 days

0

15

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Exmark 135-5654

SPRING-COMPRESSION

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 100-7403

Washer-Flat

$1.99

$

In Stock, Qty 5

0

19

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

20

Exmark 142-0319-05

WLD, FOOTPLATE, AE

$132.99

$

Usually ships in 3-6 days

0

21

Exmark 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

22

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Exmark 135-7193

NUT-HEX FLANGE

$4.49

$

Usually ships in 3-6 days

0

24

Exmark 135-7130

PEDAL-FOOT

$84.99

$

Usually ships in 3-6 days

0

24:2

Exmark 135-6430

Decal-Lock, Caster

$4.99

$

Usually ships in 3-6 days

0

25

Exmark 322-19

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

26

Exmark 135-8012-05

BRACE-FRAME, RH

$59.99

$

Usually ships in 3-6 days

0

27

Exmark 135-8015-05

BRACE-FRAME, LH

$59.99

$

Usually ships in 3-6 days

0

28

Exmark 135-5682

BALL JOINT-SS

$55.99

$

In Stock, only 2 left!

0

29

Exmark 135-8632

ZPLUG LOCKING CASTER CABL

$147.99

$

Usually ships in 3-6 days

0

33

Exmark 142-0311-05

PIVOT-BRAKE, RH

$59.99

$

Usually ships in 3-6 days

0

34

Exmark 142-0310-05

PIVOT-BRAKE, LH

$59.99

$

Usually ships in 3-6 days

0

35

Exmark 3233-14

SCREW-CARR

$18.99

$

In Stock, Qty 20+

0

36

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

Usually ships in 3-6 days

0

37

Exmark 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

39

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

40

Exmark 142-0289-05

SHIELD-HEAT, MUFFLER

$48.99

$

Usually ships in 3-6 days

0

41

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

43

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+
