ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 413950474 - 416150474) (Rev B) (2023) Auxiliary Hydraulic Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

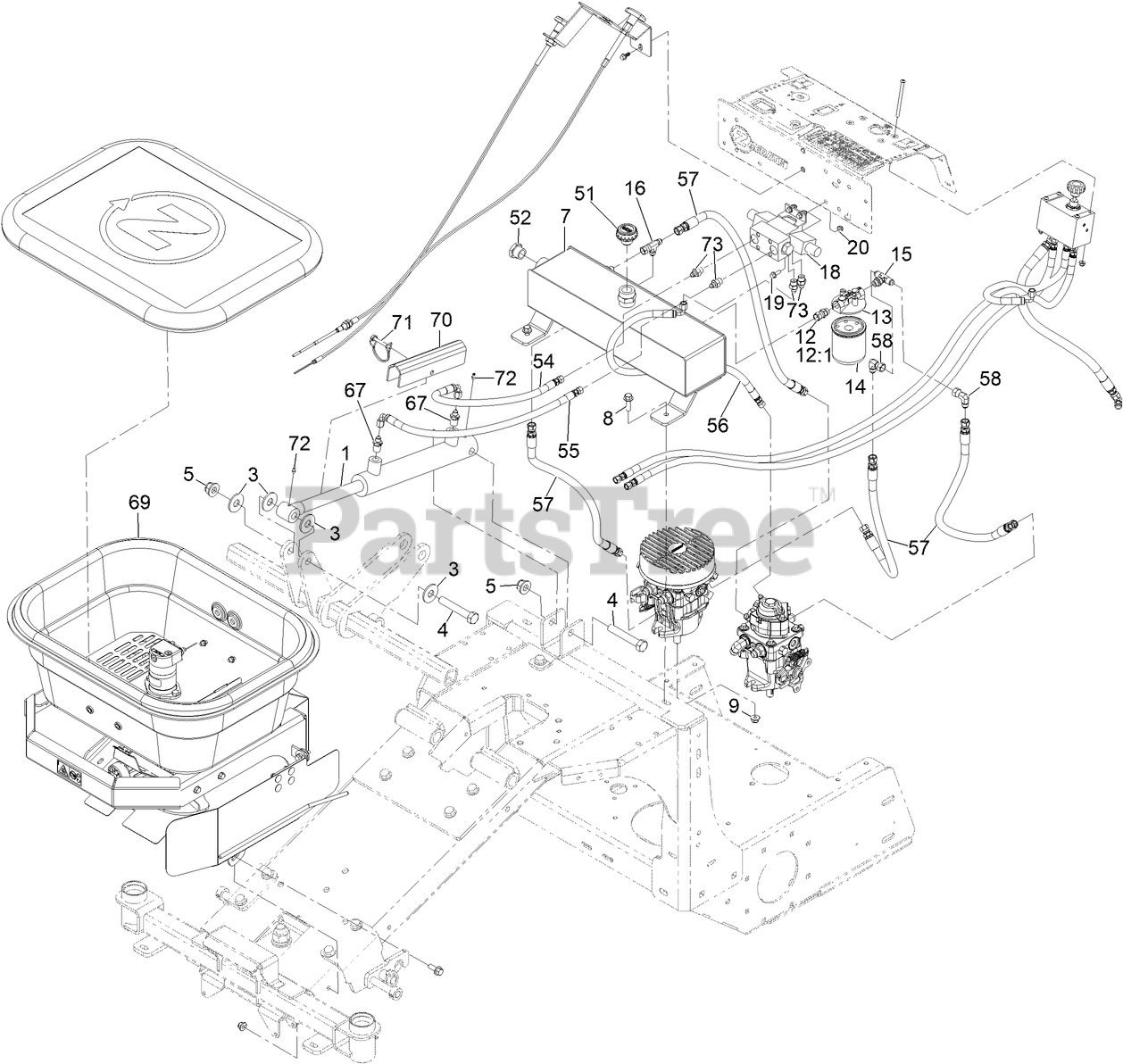

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Exmark 135-9157

LIFT CYLINDER NEW STYLE 8

$402.99

$

Usually ships in 3-6 days

0

3

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 15

0

4

Exmark 135-6988

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

5

Exmark 133-9681

Nut-Hex Flg 5/8-11 Nyloc

$4.99

$

Usually ships in 3-6 days

0

7

Exmark 142-0324

TANK-HYDRAULIC, ZPLUG

$686.99

$

Usually ships in 3-6 days

0

8

Exmark 119-4061

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 135-9095

6FJIC SWIVEL-6MORB

$5.49

$

Usually ships in 3-6 days

0

12:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

13

Exmark 104-7836

HEAD-FILTER

$19.99

$

In Stock, only 1 left!

0

14

Exmark 135-7979

Filter-Hydraulic

$52.99

$

Usually ships in 3-6 days

0

15

Exmark 135-9210

TEE-6MJIC-6MJIC-6MORB

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 353-877

FITTING-HYD, TEE

$23.99

$

Usually ships in 3-6 days

0

18

Exmark 135-9149

PARKER ELECTRIC ACTUATED

$768.99

$

Usually ships in 3-6 days

0

19

Exmark 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

20

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 135-9058

HYDRAULIC TANK VENT CAP

$22.99

$

Usually ships in 3-6 days

0

52

Exmark 135-9087

FLUID SITE WINDOW

$30.99

$

Usually ships in 3-6 days

0

54

Exmark 142-3125

Hose ASM-HYD HP

$64.99

$

Usually ships in 3-6 days

0

55

Exmark 142-3126

Hose ASM-HYD HP

$73.99

$

Usually ships in 3-6 days

0

56

Exmark 142-3127

Hose ASM-HYD HP

$81.99

$

Usually ships in 3-6 days

0

57

Exmark 142-0020

HOSE-24,3/8,100R6,6FJIC,6

$68.99

$

Usually ships in 3-6 days

0

58

Exmark AU218-980

ELBOW-SWIVEL, 90 DEG

$10.99

$

Usually ships in 3-6 days

0

67

Exmark 135-7632

FITTING-STR

$9.49

$

Usually ships in 3-6 days

0

69

Hopper ASM, 120Lb

Note: Not serviced separately

$

$

Not available

70

Exmark 135-7742-05

STOP-CYLINDER

$42.99

$

Usually ships in 3-6 days

0

71

Exmark 100-1663

PIN-HITCH

$17.99

$

In Stock, Qty 5

0

72

Exmark 302-19

FITTING-GREASE

$2.99

$

In Stock, Qty 20+

0

73

Exmark 01-201-0780

DISCONTINUED

$7.49

$

Usually ships in 3-6 days

0
