ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 413950474 - 999999999) (Rev A) (2023) Electrical Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

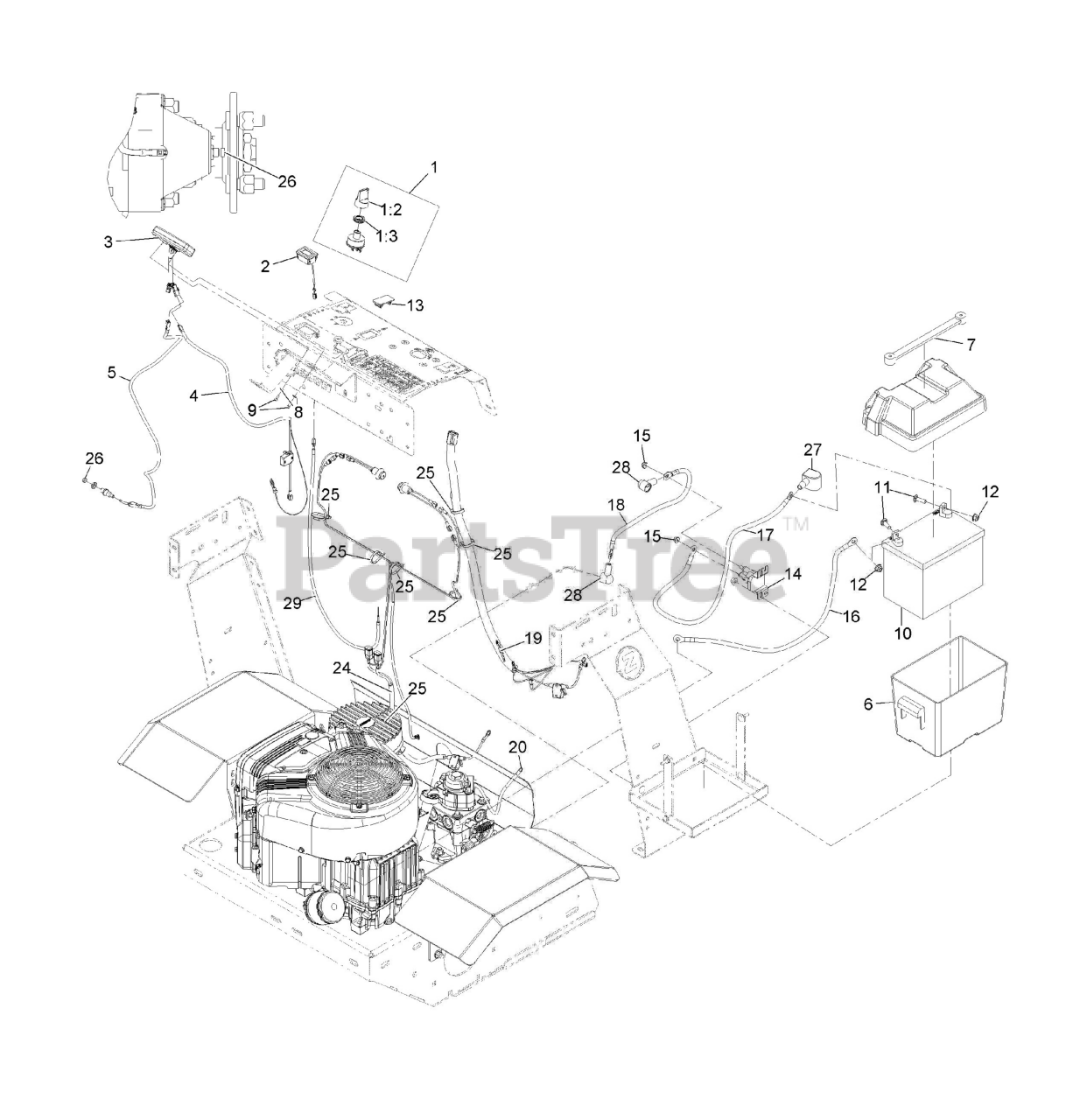

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-7094

ASM-SWITCH, KEY
(Superseded to 135-6052)

$28.99

$

In Stock, only 1 left!

0

1:2

Exmark 135-5708

KEY-UMBRELLA

$7.99

$

Usually ships in 3-6 days

0

1:3

Exmark 135-5715

NUT-SWITCH, KEY

$2.99

$

Usually ships in 3-6 days

0

2

Exmark 135-5259

METER-TACH/HOUR

$50.99

$

Usually ships in 3-6 days

0

3

Exmark 135-8900

HEAD ONLY, STRIKER

$191.99

$

In Stock, only 2 left!

0

4

Exmark 135-6443

HARNESS-STRIKER

$19.99

$

Usually ships in 3-6 days

0

5

Exmark 135-8898

Cable-Trail Tech, Sensor

$49.99

$

Usually ships in 3-6 days

0

6

Exmark 116-6673

BATTERY BOX ASM

$42.99

$

Usually ships in 3-6 days

0

7

Exmark 142-1748

BUNGEE (TARP STRAP)

$6.49

$

Usually ships in 3-6 days

0

8

Exmark 126-0759

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

9

Exmark 135-6357

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

10

Exmark 104-4657

Battery (340 CCA, Wet)

$

$

Currently unavailable

11

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 135-6189

Solenoid-Starter

$38.99

$

Usually ships in 3-6 days

0

15

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 135-6116

CABLE-GROUND

$19.99

$

In Stock, only 1 left!

0

17

Exmark 142-0841

28" RED BATTERY CABLE

$24.99

$

Usually ships in 3-6 days

0

18

Exmark 135-6119

CABLE-POSITIVE

$17.99

$

Usually ships in 3-6 days

0

19

Exmark 135-8923

WIRING HARNESS

$69.99

$

Usually ships in 3-6 days

0

20

Exmark 142-2214

WIRE-SOLENOID

$10.99

$

Usually ships in 3-6 days

0

24

Exmark 135-8920

HARNESS, KIT, THUMB SWITCH, ZP

$347.99

$

Usually ships in 3-6 days

0

25

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 12

0

26

Exmark 135-8903

MAGNET, SPEEDOMETER

$3.99

$

In Stock, only 1 left!

0

27

Exmark 135-2304

Insulator-Battery

$1.99

$

Usually ships in 3-6 days

0

28

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

29

Exmark 135-6118

WIRE-TACHOMETER

$25.99

$

Usually ships in 3-6 days

0
