ZA4830 - Exmark 30" Z-Aerate Stand-On Aerator, Kawasaki FS541V (SN: 416150475 - 417930745) (Rev B) (2024) Ground Drive Assembly Parts Diagram

30" Z-Aerate Stand-On Aerator, Kawasaki FS541V

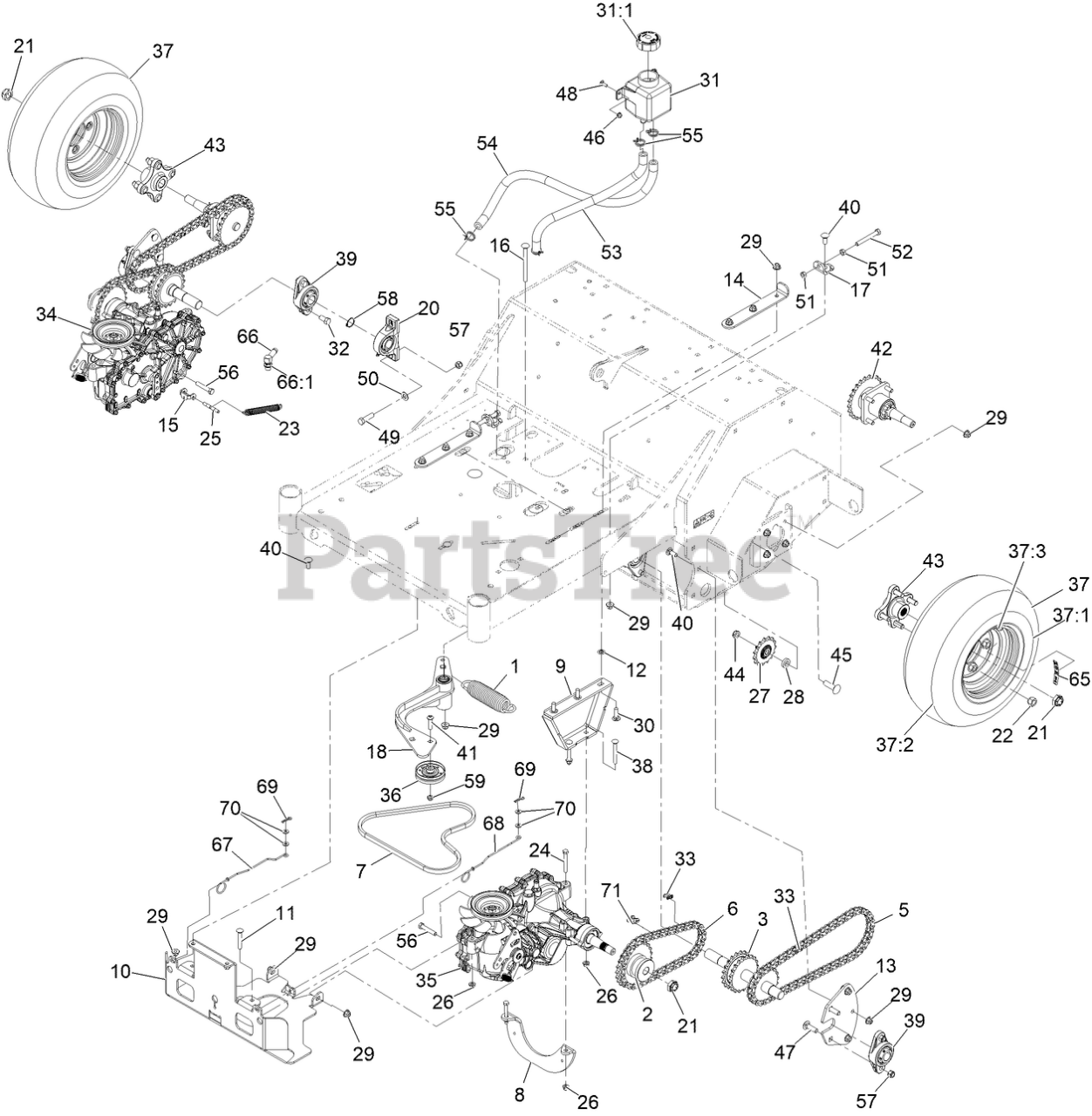

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

0

2

Exmark 116-9305

HUB-DRIVE, CHAIN

$178.99

$

In Stock, Qty 5

0

3

Exmark 126-5625

JACKSHAFT

$246.99

$

In Stock, only 2 left!

0

5

Exmark 126-8808

CHAIN-ROLLER

$249.99

$

In Stock, Qty 6

0

6

Exmark 126-8807

CHAIN-ROLLER

$200.99

$

In Stock, Qty 5

0

7

Exmark 116-8874

BELT-4L SECTION
(Superseded to 116-8874-SL)

$37.99

$

In Stock, only 4 left!

0

8

Exmark 135-5051-03

Brace-Angle

$34.99

$

Usually ships in 3-6 days

0

9

Exmark 116-9710-03

MOUNT-TRANSMISSION

$48.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5495-03

GUARD-TRANSMISSION

$249.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

12

Exmark 107-3154

NUT-PUSH

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 116-6596-03

Plate-Jackshaft

$28.99

$

Usually ships in 3-6 days

0

14

Exmark 116-6619

PLATE-ADJUSTMENT, TRANSMI

$28.99

$

In Stock, only 4 left!

0

15

Exmark 116-7597

YOKE-BRAKE, PARK

$69.99

$

Usually ships in 3-6 days

0

16

Exmark 9000779

BOLT-CARR

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 116-6723

BRACKET-HYDRO, ADJUST

$22.99

$

In Stock, only 3 left!

0

18

Exmark 116-9307

IDLER ARM ASM

$167.99

$

Usually ships in 3-6 days

0

20

Exmark 116-6756

BEARING-PILLOW BLOCK

$59.99

$

In Stock, only 1 left!

0

21

Exmark 116-2839

NUT-LOCK

$12.99

$

In Stock, only 2 left!

0

22

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 76-4660

SPRING-DOOR

$12.99

$

In Stock, only 4 left!

0

24

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 9

0

25

Exmark 116-7596

PIN-BRAKE, PARK

$21.99

$

Usually ships in 3-6 days

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

27

Exmark 126-9108

SPROCKET-IDLER, 15T

$124.99

$

In Stock, Qty 20+

0

28

Exmark 104-8417

WASHER

$10.99

$

Usually ships in 3-6 days

0

29

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 17

0

31

Exmark 109-2250

TANK-HYD

$71.99

$

In Stock, only 2 left!

0

31:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$30.99

$

In Stock, only 2 left!

0

32

Exmark 135-7810

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

33

Exmark 116-6897

LINK-CONNECTING

$8.49

$

In Stock, only 3 left!

0

34

Exmark 135-1050

TRANSAXLE-ZT3100, RT (W/P

$1702.99

$

Usually ships in 3-6 days

0

35

Exmark 135-1051

TRANSAXLE-ZT3100, LT (W/P

$1702.99

$

Usually ships in 3-6 days

0

36

Exmark 116-9715

PULLEY-IDLER

$77.99

$

In Stock, only 2 left!

0

37

Exmark 142-4381

Tire ASM (16 X 6.50-8)

$170.99

$

Usually ships in 3-6 days

0

37:1

Exmark 135-6679

RIM-8X5.375, CENTERED

$64.99

$

Usually ships in 3-6 days

0

37:2

Exmark 116-6978

TIRE

$161.99

$

Usually ships in 3-6 days

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 13

0

39

Exmark 116-6777

BEARING-FLANGE, 2 BOLT

$50.99

$

In Stock, Qty 5

0

40

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

41

Exmark 116-9927

SCREW-HSBH

$2.99

$

In Stock, only 2 left!

0

42

Exmark 116-9545

AXLE AND BEARING ASM

$813.99

$

Usually ships in 3-6 days

0

43

Exmark 116-3872

HUB-OFFSET

$75.99

$

In Stock, Qty 8

0

44

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

45

Exmark 3233-14

SCREW-CARR

$18.99

$

In Stock, Qty 20+

0

46

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 3232-3

BOLT-CARR

$3.99

$

In Stock, Qty 5

0

48

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

49

Exmark 324-6

1-800811
(Superseded to 1-800811)

$12.99

$

In Stock, only 3 left!

0

50

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

51

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 19

0

52

Exmark 99-8664

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

53

Exmark 116-6775

HOSE-HYDRAULIC

$20.99

$

Usually ships in 3-6 days

0

54

Exmark 116-6776

HOSE-HYDRAULIC

$28.99

$

Usually ships in 3-6 days

0

55

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

56

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, only 1 left!

0

57

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 8

0

59

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

65

Exmark 126-2054

DECAL-HUB, WHEEL

$5.49

$

Usually ships in 3-6 days

0

66

Exmark 109-6449

FITTING-ELBOW, 90

$36.99

$

Usually ships in 3-6 days

0

66:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

67

Exmark 135-0685

ROD-BYPASS, RH

$20.99

$

Usually ships in 3-6 days

0

68

Exmark 135-0683

ROD-BYPASS, LH

$20.99

$

Usually ships in 3-6 days

0

69

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

70

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 6

0

71

Exmark 146-1367

LINK-#50 HALF LINK

$17.99

$

Usually ships in 0 days

0

99

Exmark 109-9828

OIL-HYD, (QUART)

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0
